Cable Tray - Light Duty
Cable Tray - Light Duty

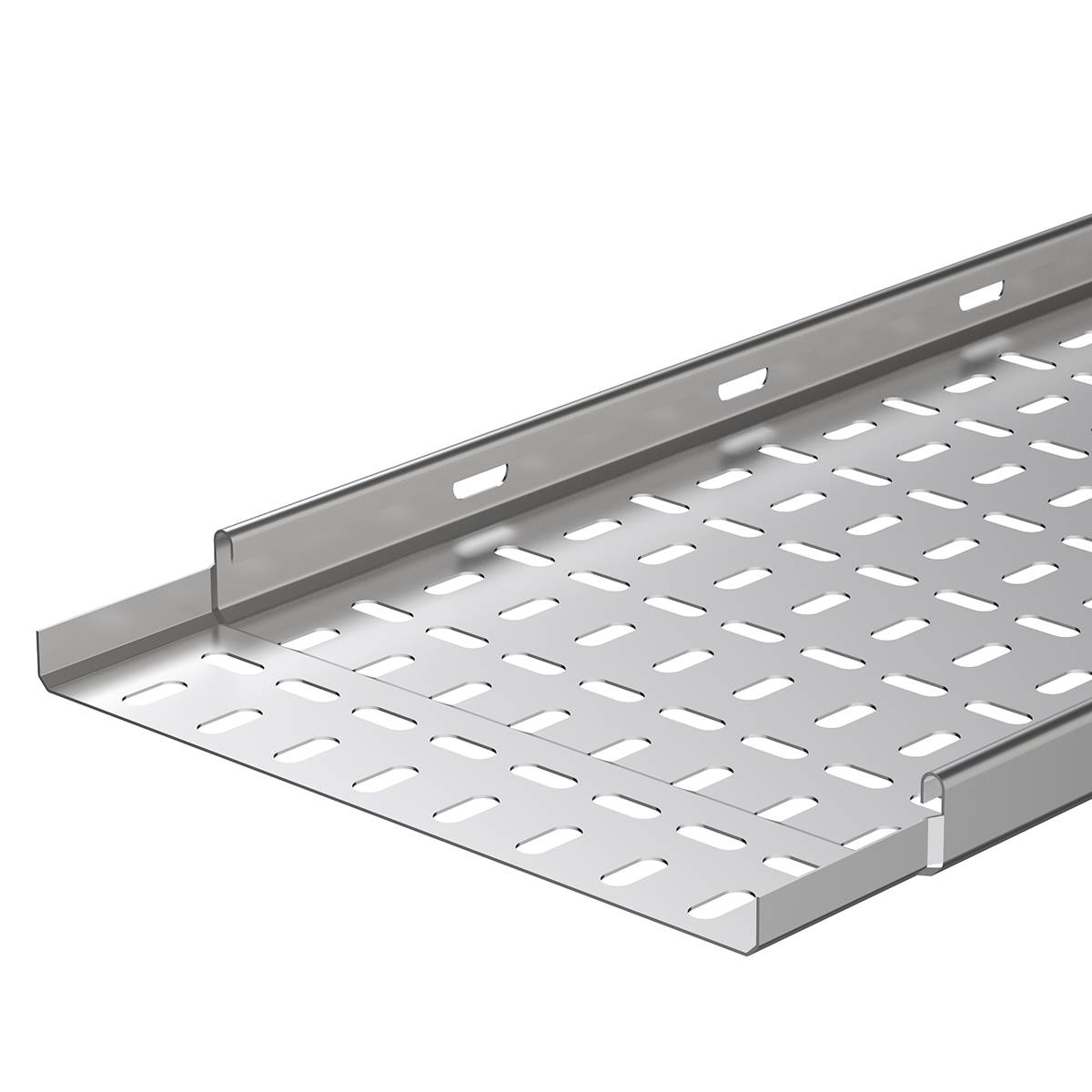

Metal cable tray available in light, medium or heavy duty profiles, a range of sizes and finishes and featuring fast, coupler free installation.
Application
Metal cable tray is particularly suited for installation into many commercial and industrial environments, permitting the upgrade, expansion, re-configuration or relocation of power and data network as required. Suitable for applications in the following environments.
- Industrial: manufacturing, data centres, warehouses and distribution centres.
- Commercial: offices and retail outlets.
- Public sector: education and healthcare in power and data areas or above suspended ceilings.
Description
Basor range of fast couple metal cable trays allowing for the simple routing and support of power and data cables. Strong and simple to support, the metal cable tray is available in light, medium and heavy-duty profiles and features a pre-galvanized finish.
Features and benefits:
- Light, medium and heavy duty.
- Product widths of 50–600 mm.
- Fast-coupling.
- Reduced installation time, saving labour costs.
- Pre-galvanized finish.
- No couplers required.
- Full range of fittings.
- Complies with Low Voltage Directive 2014/35/EU and The Electrical Equipment (Safety) Regulations 2016.
- CE and UKCA marked.
General information
Color | Silver |
Finish | Galvanized |
Material | Steel |
Shape | Rectangle |
Length | 3000 mm |
Width | 50 mm 75 mm 100 mm 150 mm 225 mm |
Height | 12 mm 25 mm 50 mm |
Uniclass | |
CAWS | V90/330 Cable trays |
Specification data - Cable trays
Classification data | |
Standard | To EN 61537 and EN 50085. |
Material | Steel. Stainless steel grade 1.4401 (i316). Guidance for specification option: Subject to minimum order quantity orders and longer lead times. Available specified only with 'none' finish, see 'coating material' below. |
Coating material | Pre-galvanized. Guidance for specification option: Standard. Hot-dip galvanized. Guidance for specification option: Subject to minimum order quantity orders and longer lead times. None. Guidance for specification option: Available specified with 'stainless steel grade 1.4401 (i316)', see 'material' above. |
Mechanical properties | |
Resistance to impact | Up to 2 J. Guidance for specification option: Without cover. IK07. Up to 20 J. Guidance for specification option: With cover. IK10. Manufacturer guidanceResistance to impact varies dependent on whether the cable tray is specified with or without a cover. See 'protective cover' below. |
Width | 50 mm. Guidance for specification option: not available as fast coupling; couplers are required. 75 mm. 100 mm. 150 mm. 225 mm. 300 mm. |
Features | |
Segregation | Not required. Cable dividers. Guidance for specification option: Divider profile 3 m. |
Protective cover | Not required. Required. Guidance for specification option: Tray covers available in a range of widths, consult manufacturer's literature for more details and insert requirements. |
Type | Light duty. |
Height | 12 mm. |

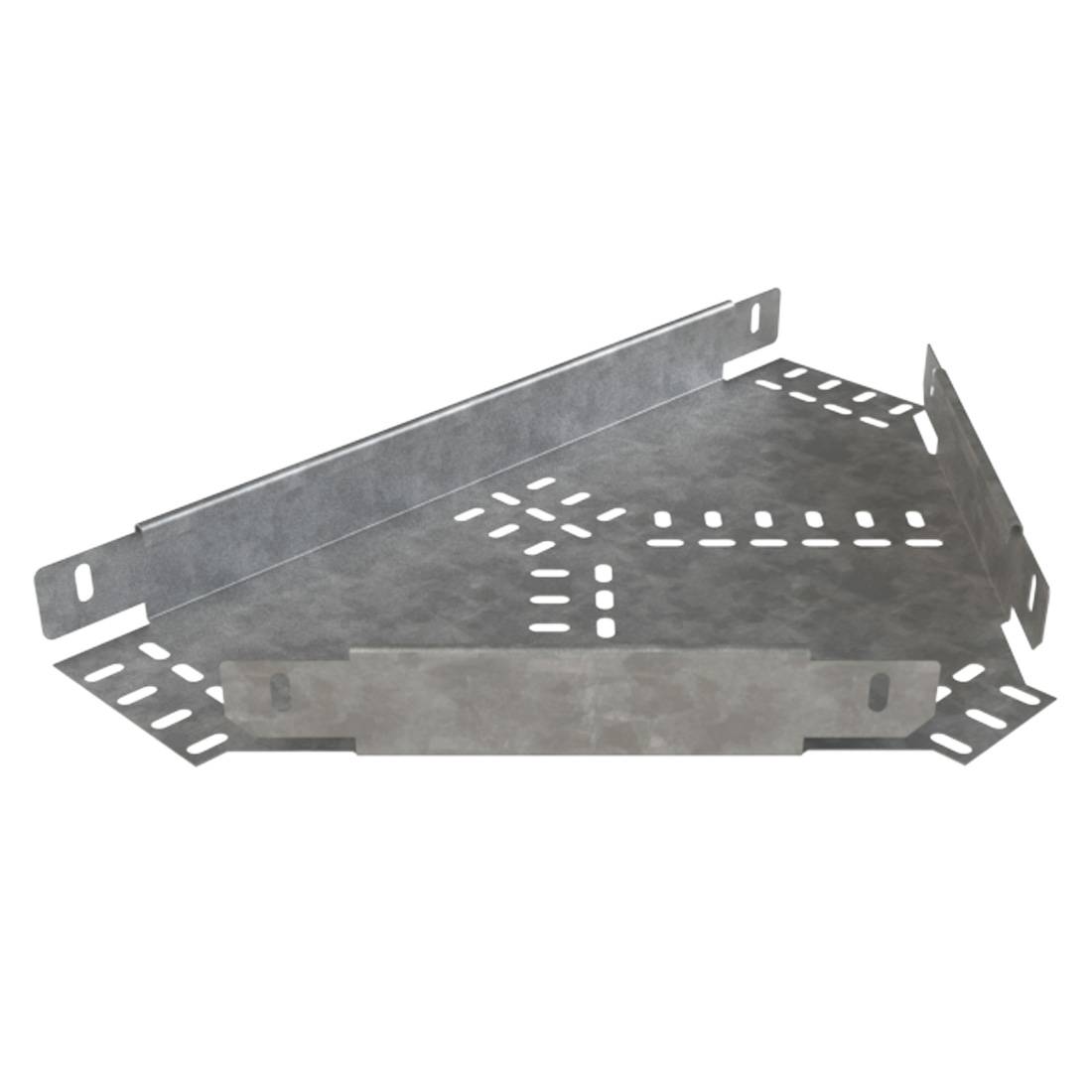

Special shapes | Not required. 90 degree flat bend. 45 degree flat bend. Equal tee. Adjustable riser. 4-way equal cross. Reducer. Manufacturer guidanceAll fittings available as either, light, medium or heavy duty and in a range of sizes. Consult manufacturer's literature for more details and insert requirements. |
Accessories | Not required. Cover fixing clamp. Fish plate. Inside splice plate 12/25/50 mm. Outside splice. GC nuts and bolts. Ceiling bracket (height 175 mm). Wall bracket. Wall bracket supporting piece. Suspension frame base. Guidance for specification option: Rods sold separately. Support strut leg. Stand off bracket. Variable support bracket. M8 threaded rod. M8 nut. Manufacturer guidanceConsult manufacturer's literature for component size options and insert requirements. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Spain |
Country of product manufacture | Spain |
Material | Steel |
Recyclability | 100 |
Literature
Literature type

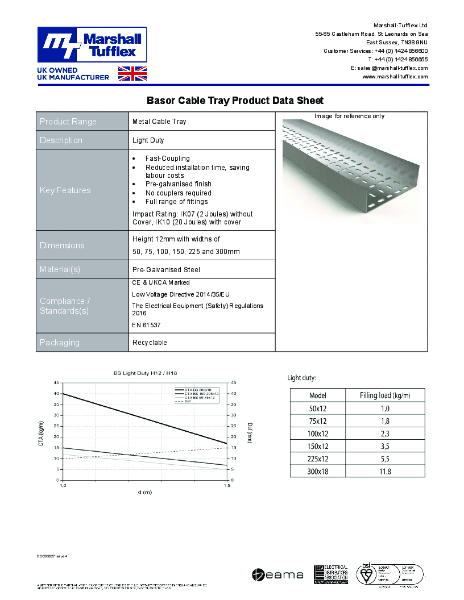

Metal-Cable-Tray-Light-Duty

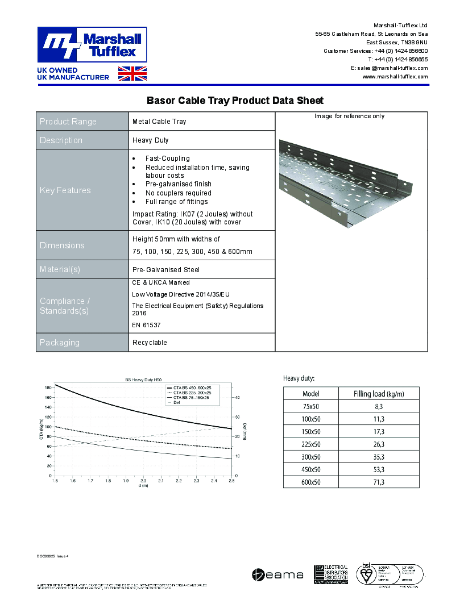

Metal-Cable-Tray-Heavy-Duty

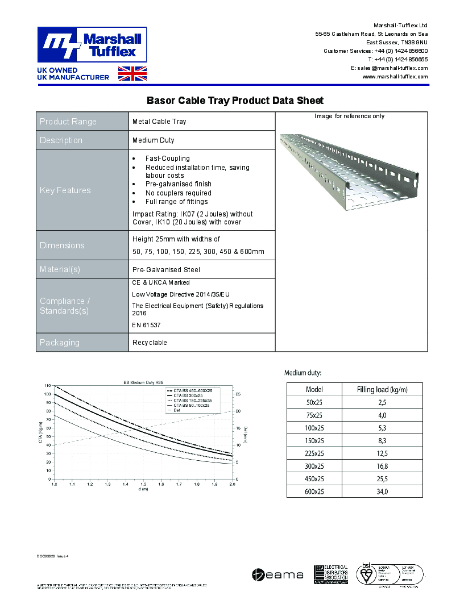

Metal-Cable-Tray-Medium-Duty

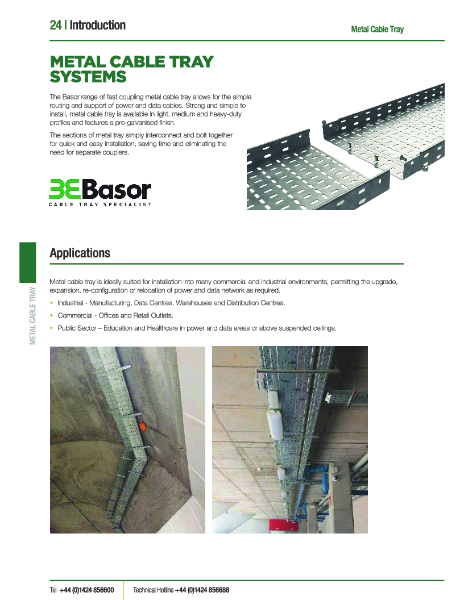

Metal Cable Tray Catalogue
