Description

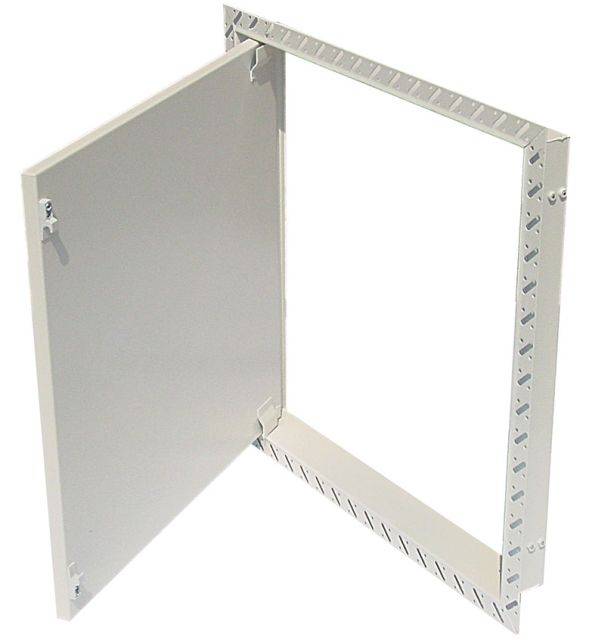

Features and benefits:

  • Doors and frames are manufactured from 1.2 mm and 1.0 mm Zintec steel.
  • The removable door has a continuous hinge and is secured using a standard budget lock.
  • One-hour fire rated in ceiling or up to two hours in wall.
  • Fire rated products have an intumescent smoke seal strips and three point locking.

General information
Size

300 x 300 mm

450 x 450 mm

550 x 550 mm

600 x 600 mm

600 x 900 mm

600 x 1200 mm

Color

Matt white RAL 9010 (20% gloss)

Features

Sliding pin hinge

Finish

Polyester powder coated

Material

1 mm and 1.2 mm zintec steel

Shape

Square

WarrantyDescription

10 years

Uniclass 2015
Access panels (Pr_30_59_36_01)Primary
Specification data - Access panels
Product Reference

CAD/WAP.B

CAD.B/FR60 60 minutes fire rated

WAP.B/FR60 60 minutes fire rated

WAP.B/FR120 120 minutes fire rated

Size

300 x 300 mm

450 x 450 mm

550 x 550 mm

600 x 600 mm

600 x 900 mm

600 x 1200 mm

FireRating

Not required

1 h

Ceiling.

2 h

Wall.

Ironmongery

Budget lock with plastic tee key

Key lock

Tamper-proof lock

Three-way locking

Touch catch

Non-fire rated only.

Standard product features

Material:

1.2 mm and 0.9 mm Zintec steel with a polyester powder coating finish.

Colour:

RAL 9010.

Warranty:

Ten year manufacturer guarantee. Proprietary components will carry a one year return to factory guarantee.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 6 2.0
IFC
IFC2X3 4 1.3
Download now from NBS National BIM Library
