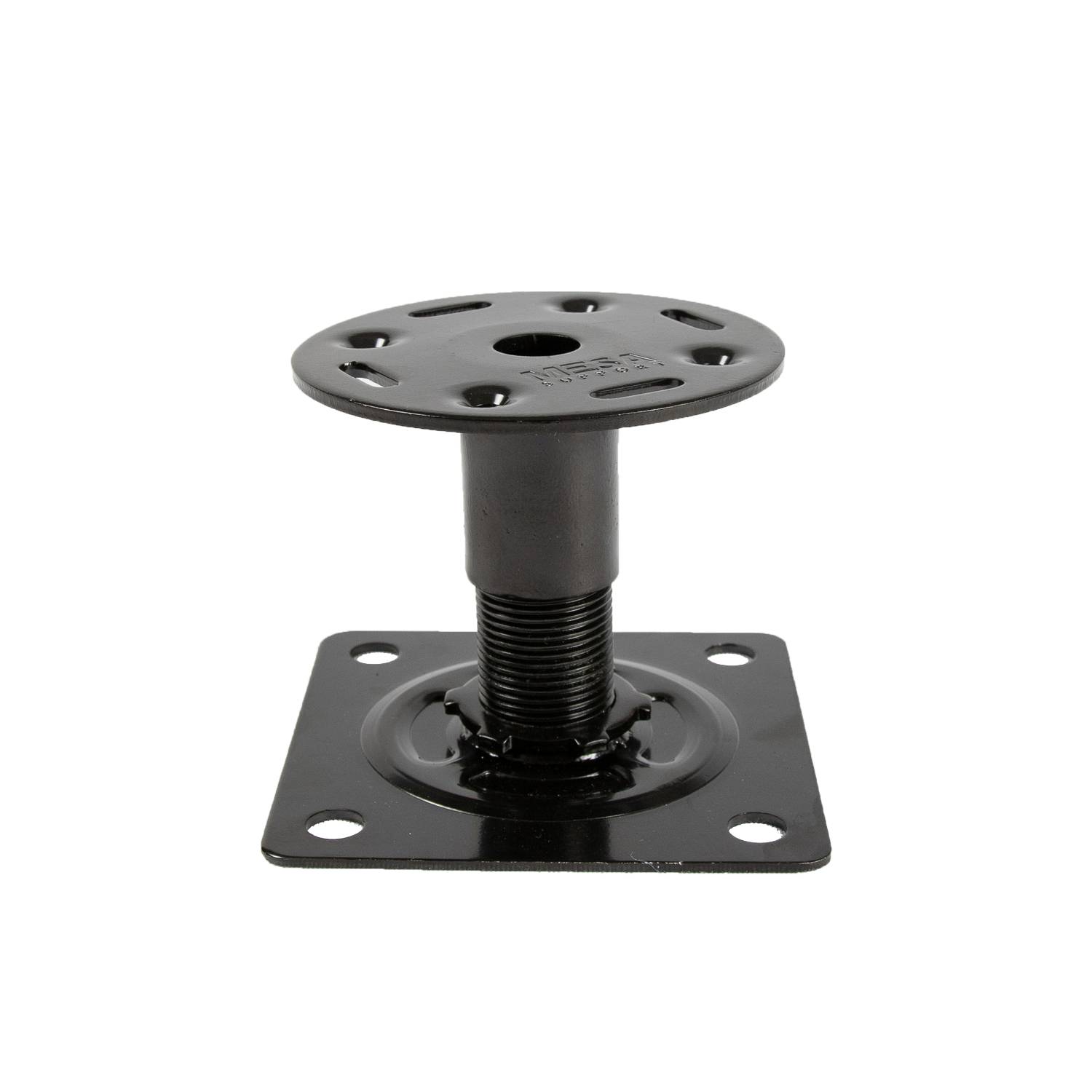

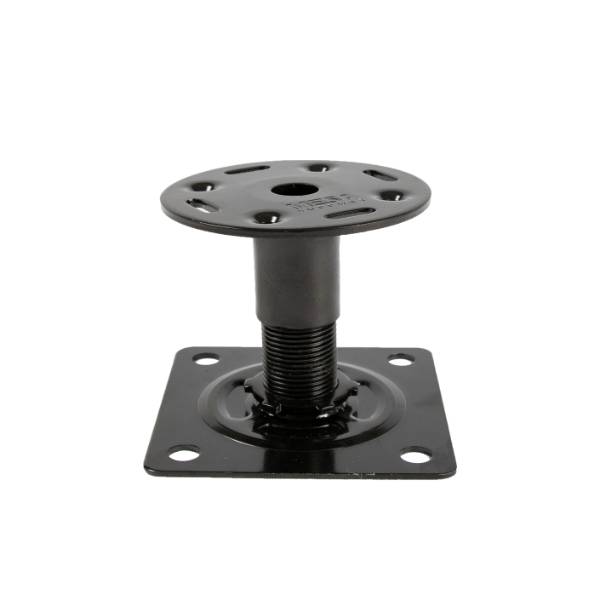

MESA Metal Support Pedestals
External steel MESA pedestals support loads of up to 1000 kg, making them the most robust support systems in the market.
Decking support pedestals which can support loads up to 1000 kg and come with a 20-year limited warranty for peace of mind.
Features and benefits:
- Adjustable heights between 10 and 965 mm.
- 150 mm diameter head and 200 mm diameter base.
- Joist cradle and slope corrector options easily incorporated.
- Constructed from 90% recycled polypropylene and is 100% recyclable.
- Quick and simple to install.
Features | Quick installation, maintenance free, durable, made from 90% recycled plastics |
Material | Steel Grade E220 |
Shape | Circular |
Size | 35 x 100 x 100 mm |
WarrantyDescription | 20 years |
Uniclass 2015 | |
CAWS | Q55/110 Deck Q55/395 Support pedestals |
Product Reference | MESA Decking and Paving Supports |
Height | 10-40 mm11–16 mm19–30 mm28–40 mm40–65 mm65–85 mm80–130 mm130–175 mm160–260 mm255–350 mm350–460 mm450–610 mm500–740 mm628–845 mm705–965 mm |
Accessories | Not requiredJoist cradleProtective base padSlope correctorTiling spacers, 2 mmTiling spacers, 3.5 mmTiling spacers, 5 mm |
Standard product features | Material: 90% recycled polypropylene and 10% talc, UV stabilisers, black masterbatch. Technical characteristics:
|
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 IFC | - | 1 | 2.1 |
 Revit | - | 1 | 2.1 |
