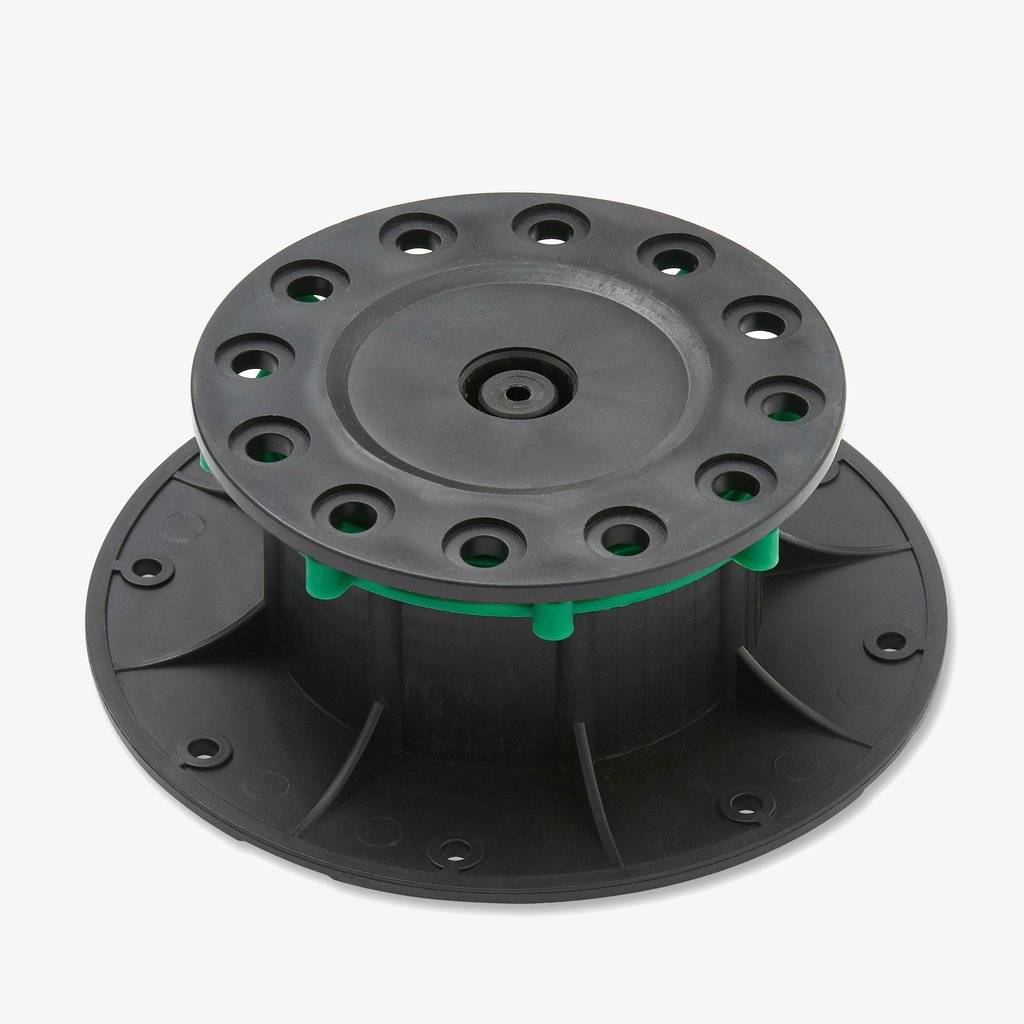

MESA® Adjustable Support Pedestals
Verified by manufacturer 22 hours ago

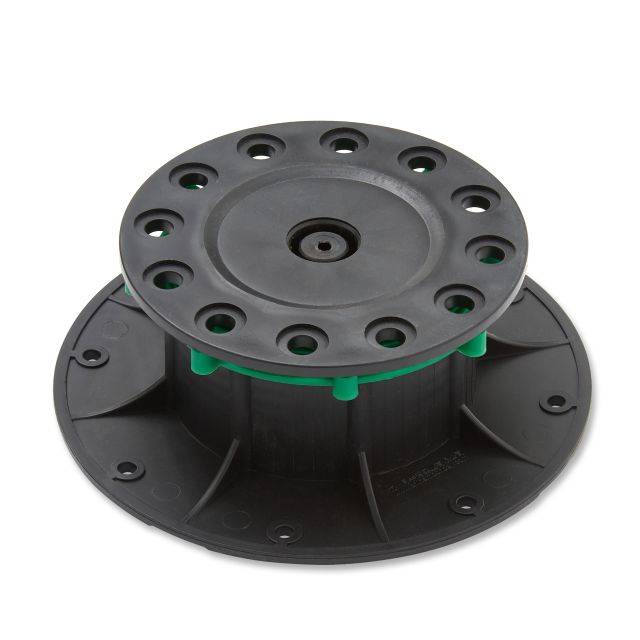

MESA Adjustable Support 10-30mm (DA-SP-10-30)
MESA Adjustable Support 10-30mm (DA-SP-10-30)
Easy install, support loads up to 1000 kg with adjustable heights between 10 and 965 mm.
Application
Suitable to support:
- High traffic commercial and residential.
- Decking joist support.
- Tiling support.
- Metal grate support.
- Fibreglass grid support.
Description
Decking support pedestals which can support loads up to 1000 kg and come with a 20-year limited warranty.
Features and benefits:
- Adjustable heights between 10 and 965 mm.
- 150 mm diameter head and 200 mm diameter base.
- Joist cradle and slope corrector options easily incorporated.
- Constructed from 90% recycled polypropylene and is 100% recyclable.
- Quick and simple to install.
- UV stable.
- Collars lock height adjustment against vibration or shock movement.
- Salt water and frost resistant.
Technical characteristics:
- -40°C to 120°C.
General information
Color | Black |
Finish | Smooth Matt |
Material | Polypropylene Guidance for specification option: 90% plastic. |
Shape | Circle Guidance for specification option: Cylinder. |
Length | 200 mm Manufacturer guidanceBase diameter: 200 mm; Head diameter: 140 mm. DA-SP-10 and DA-SP-10-30: 110 mm diameter. |
Width | 200 mm Manufacturer guidanceBase diameter: 200 mm; Head diameter: 140 mm. DA-SP-10 and DA-SP-10-30: 110 mm diameter. |
Height | Manufacturer guidanceHeight adjustment: 10–740 mm. |
Warranty description | Ten year Guidance for specification option: Limited warranty against failure. 20 year Guidance for specification option: Limited warranty. |
Uniclass | |
CAWS | Q55/110 Deck Q55/395 Support pedestals |
SKU Code | DA-SP-10, DA-SP-10-30, DA-SP-11, DA-SP-19, DA-SP-28, DA-SP-40, DA-SP-60, DA-SP-80, DA-SP-130, DA-SP-160, DA-SP-255, DA-SP-350, DA-SP-450, DA-SP-500 |
Product range |
Specification data - Decking and paving pedestals
Pedestal type | Adjustable. |
Grade | 1835, 1510 and 795 kg. Guidance for specification option:
Manufacturer guidanceLoading maximum. |
Material | 90% polypropylene. |
Adjustment | 10–30 mm. Guidance for specification option: DA-SP-10-30 . |
Accessories | Not required. Joist cradle. Protective base pad. Slope corrector. Tiling spacers, 2 mm. Tiling spacers, 3.5 mm. Tiling spacers, 5 mm. |
Frost resistant and chemical resistant | Yes. |
Frost resistant and resistant to de-icing salts | Yes. |
Water absorption | 0.00%. |
Breaking load | 3754, 3100 and 1806 kg. Guidance for specification option:
|
Slope correctors | Ground fall correction of 0-5%. |
Area | 315 cm² base and 76 cm² head. Manufacturer guidanceSupport surface area. |
TemperatureRange | -40°C to 120°C. |
Fixings | Not required. Required. Guidance for specification option: The support pedestals can be supplied with a variety of fixings to make them suitable for all situations of decking or paving. |
Sustainability data
Contains Red List materials | No |
Material | Polypropylene Guidance for specification option: 90% plastic. |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % Guidance for specification option: 90% recycled polypropylene. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 2 |
 IFC | IFC2X3 | 1 |
Literature
Literature type
Mesa support Brochure
Mesa support pedestals technical specifications

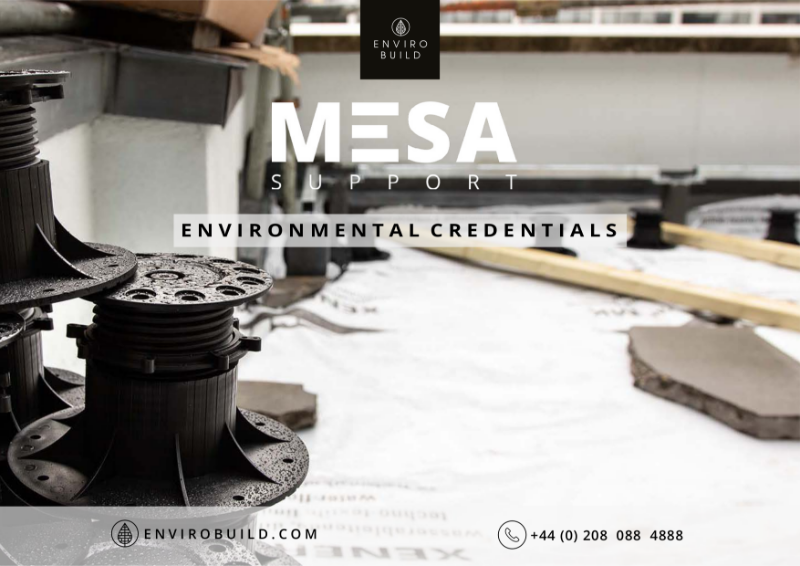

Mesa support pedestals environmental credentials

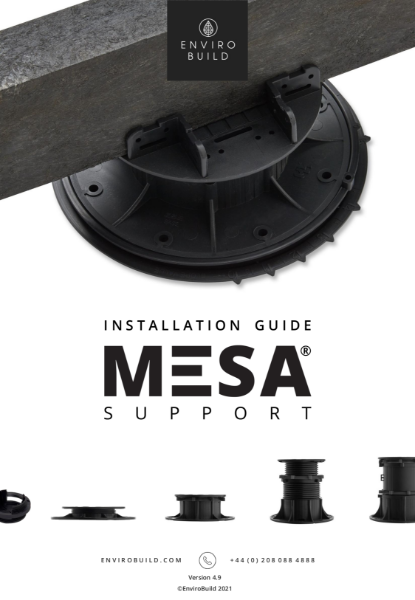

Mesa adjustable pedestal supports installation guide
Case studies
Residential Apartment Decking- Ebury Place

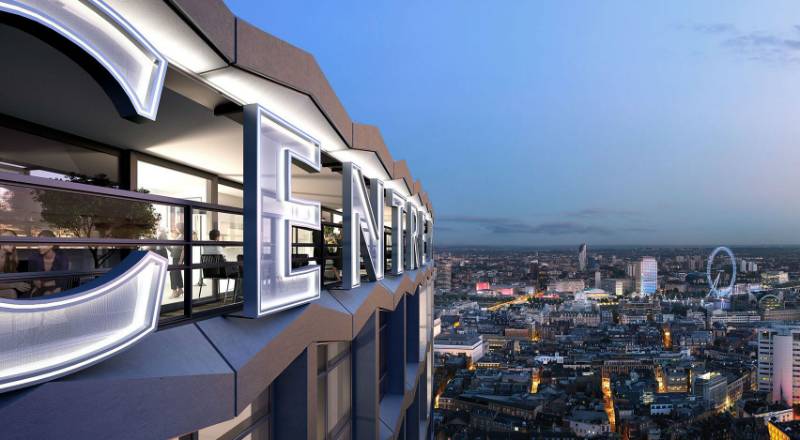

Centre Point Decking
Folgate Street Balcony
McMillan House Apartment Decking

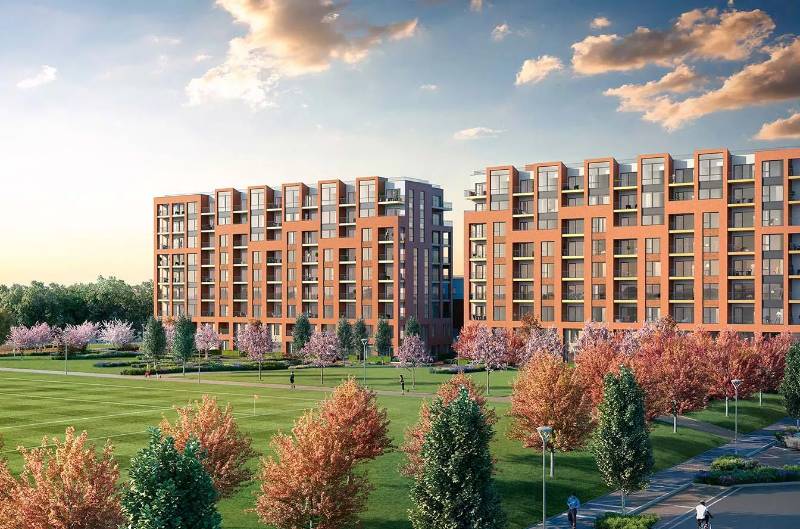

Colindale Residential Apartment Decking
Garden Pavilion Decking
Similar products from EnviroBuild Materials Ltd

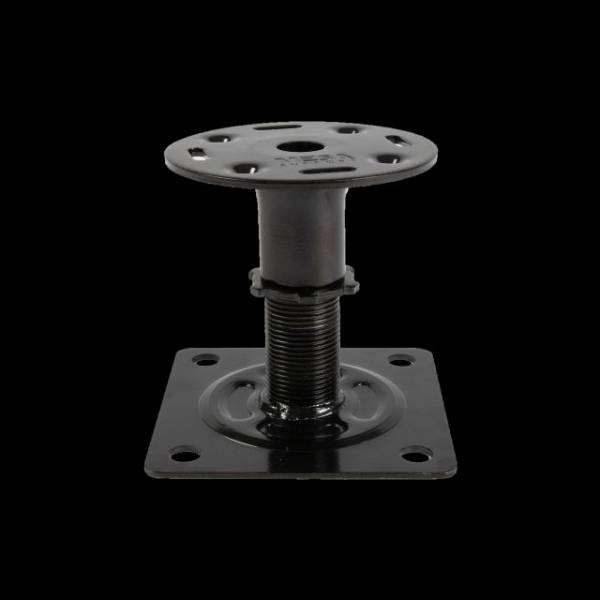

MESA® Metal Support Pedestals | Class A
