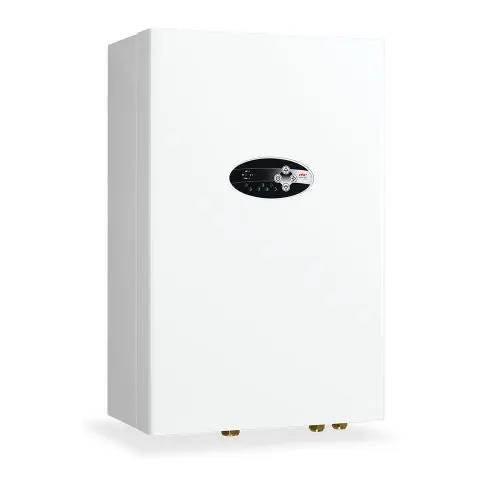

Mercury Electric Combi Boiler

Verified by manufacturer 8 months ago

12 kW - MERCURY12KW

Electric Heating Co Ltd Variant:
Third party certifications:
  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

Outputs from 12 kW to 26 kW for heating and hot water.

Jump to:
+44 (0)1698 820533 Website

Application

  • Single phase 12kW & 14.4kW, suitable for small properties that have wet central heating with a shower and hot water outlets for sinks.
  • Single phase, not suitable for properties with baths.
  • Suitable for underfloor heating.
  • If 3Phase Electricity is available our 19kW & 26kW Mercury Boilers would have sufficient flow rates to fill a Bath in a suitable timescale.

Description

The Mercury Combi is the premium electric boiler solution for heating and hot water with the added benefit of weather compensation and advanced service diagnostics.


This Electric Combi Boiler provides a very cost effective alternative to electric storage heating, oil, solid fuel or LPG systems.


It is the perfect solution to properties with no access to mains gas supply and homes which have gas boiler restrictions e.g. listed buildings and bed-sit sleeping areas.

Not only is the Electric Boiler the ideal choice for wet central heating but is also suited to Underfloor Heating.


The Mercury Boiler outputs are 12kW & 14.4kW Single Phase, and 19kW & 26kW Three Phase.


The operating temperatures of the boiler can be adjusted using the easy to use Digital Control Panel with adjustable temperature outputs ranging from 30°C-60°C (Hot Water) and 20°C-85°C (Central Heating).



Mercury Electric Combi Boilers are suitable for properties that have a Shower and Hot Water outlets for sinks.


If 3Phase Electricity is available our 19kW & 26kW Mercury Boilers would have sufficient flow rates to fill a Bath in a suitable timescale.


Features and benefits:

  • Available in single phase 12 kW, 14.4 kW and 3 phase 19 kW and 26 kW outputs.
  • Compact design.
  • 100% efficient.
  • Instant domestic hot water.
  • Enhanced hot water flow rate due to bare wire technology.
  • Low running noise.
  • Rapid heat up times.
  • External weather compensation.
  • Automatic power modulation.
  • Integral system diagnostics.
  • Easy-fit connectors and sensors.
  • High temperature cut-out.
  • Pressure gauge.
  • ErP smart pump.
  • Single phase and three phase boilers available.
  • Five year guarantee T's & C's.



The future of home heating with our advanced Electric Boilers and Combi Boilers, offering efficient solutions for central heating. If you're in the UK, our comprehensive range of boilers, including Electric Combi Boilers, guarantees warmth and hot water on demand. The innovative features of our Electric Water Boilers and Water Heaters, providing instant hot water for your daily needs. Consider the convenience of a Hot Water Cylinder for sustained warmth in your home. Our EHC products, ensures reliable Electric Heating and a seamless integration into your central heating system.

General information

Color

White

Finish

Gloss

Material

Stainless steel

Shape

Rectangle

Length

258 mm

Width

451 mm

Height

690 mm

Warranty description

Five year

Guidance for specification option:

Boiler.

Terms and conditions apply; consult manufacturer for details.

Uniclass

Pr_60_60_08_27 Electric boilersPrimary

CAWS

T90/322 Boilers, electric

Specification data - Electric boilers

Boiler type

Combi.

Output

12 kW.

Energy efficiency rating

D (heating).
A (hot water).

Mounting

Wall-mounted.

Operating pressure

3.0 bar (heating).
6.0 bar (hot water).

Operating temperature

20℃ to 85℃ (heating)
30℃ to 60℃ (hot water).

Electrical supply type

Single-phase.

Guidance for specification option:

240 V, 50 Hz.

Accessories

Not required.

Mercury Compliance Installation Pack - MER-PACK.

Guidance for specification option:

Includes all the key components required to ensure a hassle free and professional install of the Mercury Combi Boiler.

Dimensions

690 x 451 x 258 mm.

Manufacturer guidance

Overall height x width x depth.

Weight

19 kg.

Output

5.8 L/min.

Manufacturer guidance

Hot water output (ΔT = 30℃).

Capacity

40968 Btu.

Manufacturer guidance

Heating capacity.

Pipes

15 mm.

Manufacturer guidance

Heating circuit pipe connections.

Current

50 Amp.

Manufacturer guidance

Load/ Current.

Protection

63 Amp.

Manufacturer guidance

Circuit protective device.

Sustainability data

Contains Red List materials

No

Country of material origin

Poland

Country of product manufacture

Poland

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

UKCA ELECTRIC MERCURY COMBI BOILER
