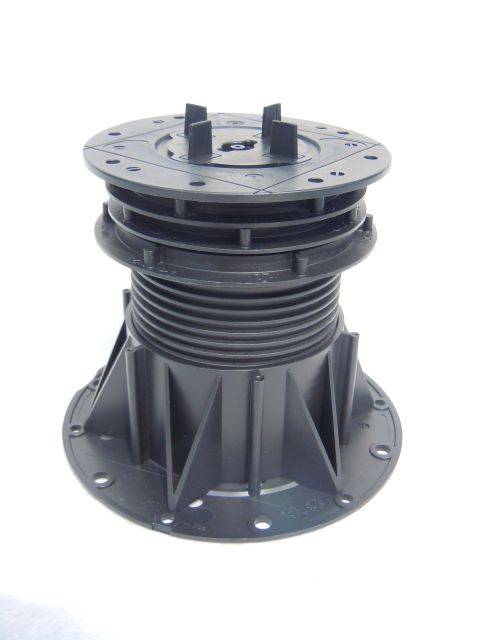

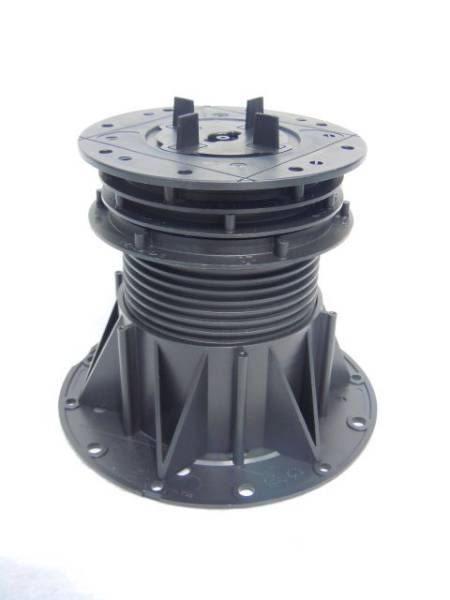

Mega Pad HEAVY DUTY Paving Support Pedestals

Verified by manufacturer 3 months ago

Wallbarn Ltd

Range of heavy duty, adjustable paving support pads designed for higher clearances.

Jump to:
+44 (0)20 8916 2222 Website

Application

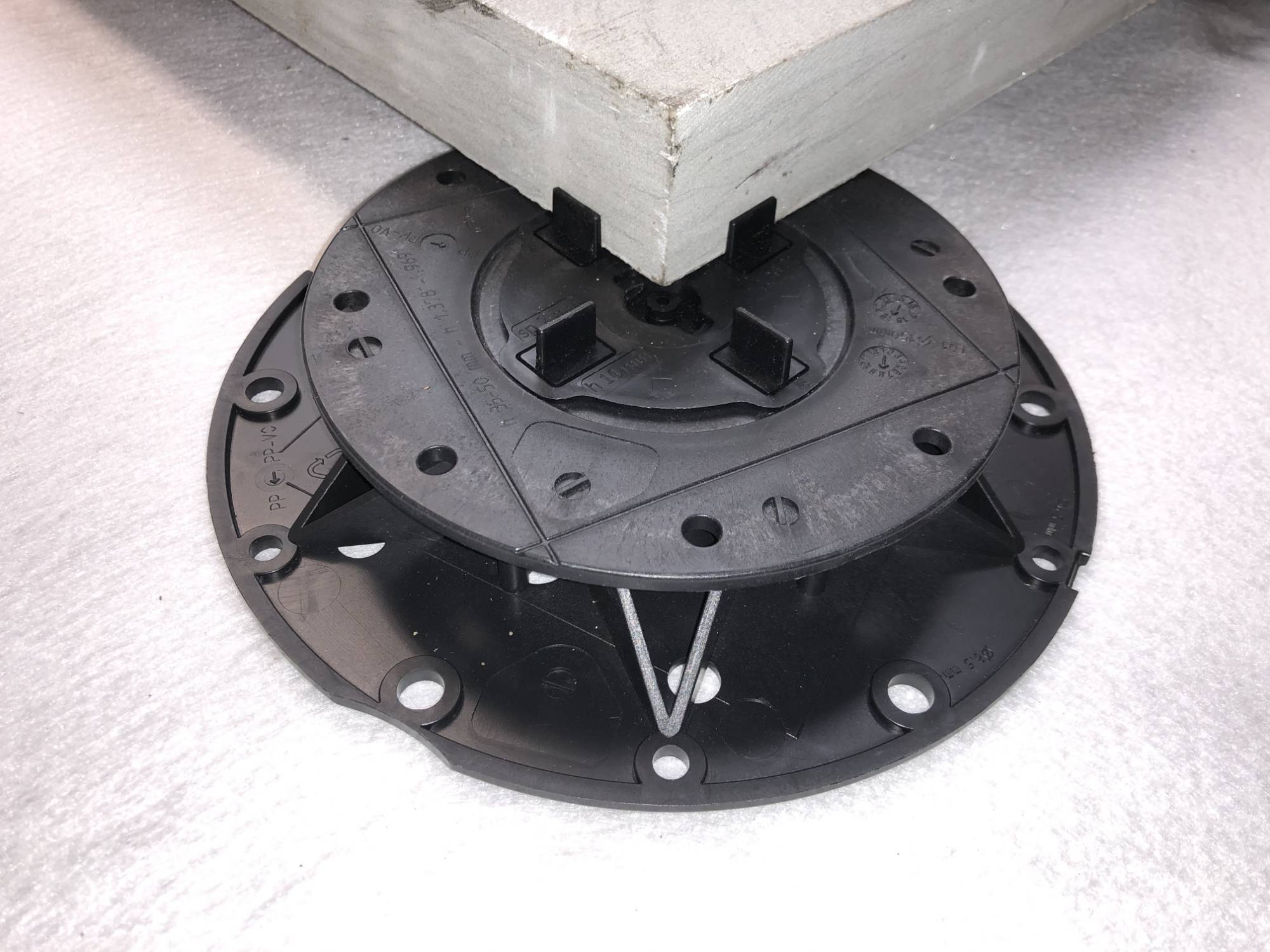

Adjustable height support pedestal for paving slabs and porcelain tiles.

Description

Range of heavy duty, adjustable paving support pads designed for higher clearances.


Features and benefits:

  • 35–1020 mm clearance from the deck.
  • Large range of adjustment per pad.
  • Very high weight tolerance: 1560 kg; break point: 2057 kg.
  • Temperature tolerance: +75°C to -40°C.
  • Lockable, preventing legs unwinding themselves.
  • Slope correctors can be fitted to the base plates for extra stability, ensuring legs are always vertical.
  • Variety of positioning lug widths from 2 mm or 4 mm as standard (6 mm, 8 mm and 10 mm also available).

General information

Color

Black

Material

Polypropylene

Shape

Circle

Length

200 mm

Width

200 mm

Height

35-50mm, 50-75mm, 75-120mm, 115-220mm, 215-320mm, 315-420mm, 415-520mm, 515-620mm, 615-720mm, 715-820mm, 815-920mm, 915-1020mm

Bespoke

WarrantyDescription

15 year

Limited warranty

Uniclass

Pr_20_85_47_22 Decking and paving pedestalsPrimary

CAWS

J21/467 Support system for precast concrete paving slabs

J21/85 Precast concrete paving slabs

J31/370 Precast concrete paving slabs

J31/375 Paving tiles

J31/377 Support system for paving slabs or tiles

J31/80 Precast concrete paving slabs

J41/467 Support system for precast concrete paving slabs

J41/90 Precast concrete paving slabs

J42/467 Support system for precast concrete paving slabs

Q37/460 Support pedestals

Q55/110 Deck

Q55/395 Support pedestals

Product range

Pedestals

Specification data - Decking and paving pedestals

Pedestal type

Adjustable.

Grade

1560 kg.

For all heights.

Adjustment

Height adjustments.

35–50 mm.

50–75 mm.

75–120 mm.

115–220 mm.

215–320 mm.

315–420 mm.

415–520 mm.

515–620 mm.

615–720 mm.

715–820 mm.

815–920 mm.

915–1020 mm.

Accessories

Multiple slope correctors can be combined for larger falls.

Not required.

Anti-shock leveller.

Fitted over the lugs to provide additional height adjustments and noise and vibration insulation.

Slope corrector, 1%.

Slope corrector, 2%.

Slope corrector, 3%.

Lugs

10 x 2 mm.

Standard.

10 x 4 mm.

Standard.

20 x 2 mm.

Standard.

20 x 4 mm.

Standard.

20 x 6 mm.

Show more

Dimensions

Head diameter.

150 mm.

Base plate

Diameter.

200 mm.

150 mm.

Reversible.

Environmental information

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%
