MedO GS EdgeGuard
Verified by manufacturer 3 months ago
The GS range of gravel stops is designed with a large base to provide stability in a variety of green or ballasted roof applications.
Application
The slotted vertical face allows for the flow of water in a arrange of applications including:
- As an edge restraint.
- As a retainer for MedO substrate.
- As a retainer for ballast.
- To separate differing materials.
Description
The GS range of gravel stops is designed with a large base to provide stability in a variety of green or ballasted roof applications.
Comprising straight lengths, flexible curved sections and connection pieces GS gravel stops are available in eight standard sizes and can be cut to length or a variety of shapes on site using standard tooling.
Loose lay over a suitable Radmat waterproofing membrane, ProTherm XPS inverted roof insulation or MedO drainage/retention board. Joint individual lengths together using GS connection pieces
General information
Color | Silver |
Finish | Unfinished |
Material | Aluminium |
Shape | Other |
Length | 2400 mm |
Width | 100 mm 150 mm 200 mm |
Height | 50 mm 75 mm 100 mm 120 mm 150 mm |
Warranty description | 40 year |
Uniclass | |
CAWS | Q37/420 Edge-retaining profile J42/120 Inverted roof covering J42/12 Inverted roof covering Q37/110 Intensive green roof Q37/130 Extensive green roof Q37/120 Simple intensive green roof |
Specification data - Metal edgings
Material | Aluminium. |
Edging | |
Form | Curved.Straight. |
Length (minimum) | 2400 mm. |
Size | 100 x 50 x 1.5 mm.75 x 100 x 1.5 mm.100 x 100 x 1.5 mm.120 x 100 x 1.5 mm.150 x 150 x 1.5 mm.200 x 150 x 2 mm.250 x 200 x 2 mm.300 x 200 x 2 mm. |
Colour | Silver. |
Connectors | GS-CP45. Guidance for specification option: 45 x 95 x 1.5 x 250 mm (h x w x d x l). GS-CP70. Guidance for specification option: 70 x 95 x 1.5 x 250 mm (h x w x d x l). GS-CP95. Guidance for specification option: 95 x 95 x 1.5 x 250 mm (h x w x d x l). GS-CP115. Guidance for specification option: 115 x 95 x 1.5 x 250 mm (h x w x d x l). GS-CP145. Guidance for specification option: 145 x 145 x 1.5 x 250 mm (h x w x d x l). |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
Literature
MedO Living Green Roof System Brochure

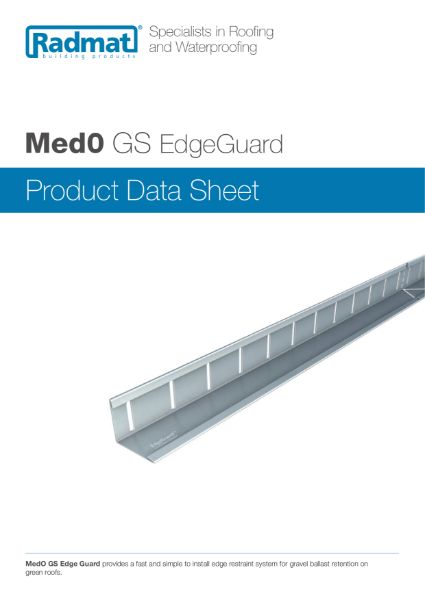

MedO GS EdgeGuard Product Data Sheet
