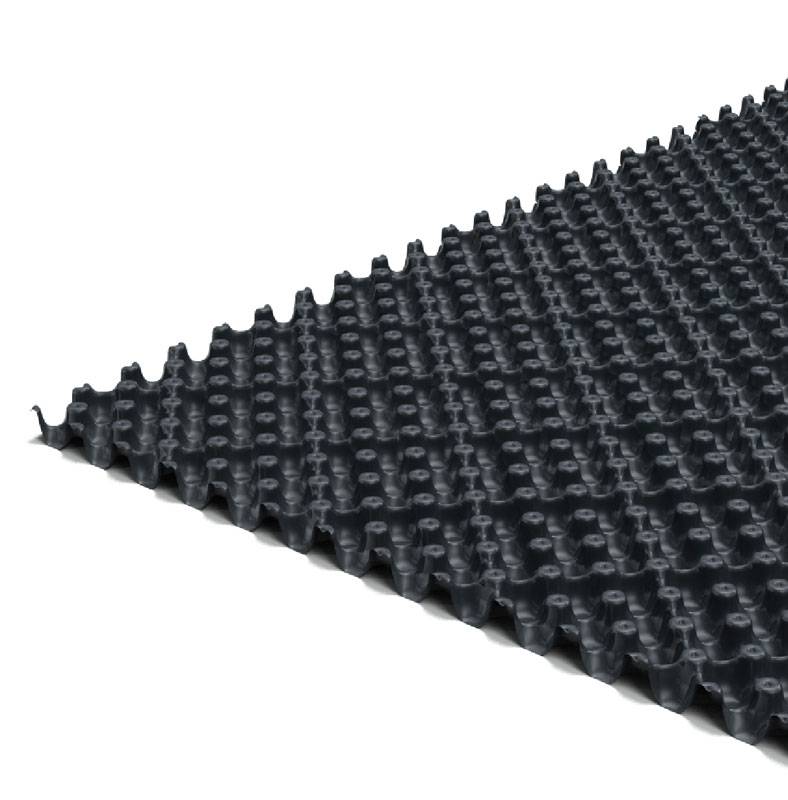

MedO D25 Reservoir & Drainage Board

Verified by manufacturer 3 months ago

Radmat Building Products Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

A drainage and water storage element for extensive green roofing.

Jump to:
+44 (0)1858 410372 Website

Application

Suitable for Extensive Green Roofing and for use as a Drainage Element.

MedO D25 provides both passive irrigation for any green roof system installed above it whilst also permitting free passage of excess rainwater below.


Cuspates in the board allow rainwater to be stored for passive irrigation during periods of dry weather. Drainage holes in the upper layer permit any excess rainwater from overfilling and potentially saturating the green roof system above.


MedO D25 has also been successfully tested as a permeable drainage layer beneath fully-bedded finishes, working in conjunction with permeable mortar beds to provide surface water management and drainage on larger areas, such as podium decks. In this arrangement, the board is not intended to be storing rainwater, so it is placed upside-down when functioning only as a drainage element.


MedO D25 is loose-laid and boards can be butted together or overlapped by one cuspate for larger green roof areas.


When used beneath a Green Roof System, MedO G11 Geotextile Filter Membrane must be installed above to prevent small fines from reaching the drainage network.


Description

A drainage and water storage element for extensive green roofing. Manufactured from recycled polystryene Radmat D25 is chemically neutral, rotproof and resistant to mould and bacteria.


Radmat D25 is supplied in sheets 25 mm deep and is resistant to compression up to 238 kPa.

General information

Color

Black

Finish

Unfinished

Material

Polystyrene

Shape

Rectangle

Length

2020 mm

Width

1100 mm

Height

25 mm

Uniclass

Pr_60_50_41_53 Modular irrigation reservoirsPrimary

CAWS

Q37/355 Combined layers

Q37/340 Moisture retention mat

Q37/350 Drainage layer

Q37/360 Filter membrane

Specification data - Modular irrigation reservoirs

Physical properties

-

Capacity

11.80 L/m².

Fire protection

To BS EN 13501-1: B2.

Studded layer

Recycled Polystyrene.

Filter layer

Recycled Polystyrene.

Sheet thickness

25 mm.

Weight (minimum)

1360 gr/m2.

Colour

Black.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Recyclability

100% Recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

15/5282-2 EshaFlex Total Green Roof Waterproofing System
