Verified by manufacturer 4 days ago

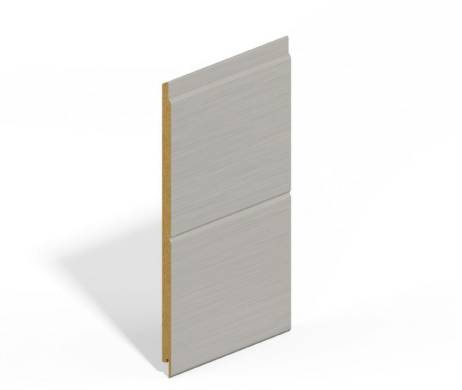

Modified wood board decorative cladding with double tongue and V-grooved profile.
Suitable for external cladding.
MEDITE TRIMAX double tongue and v-groove is crafted from MEDITE TRICOYA EXTREME (MTX), a high-performance panel product used for its durability and stability in demanding environments. MTX makes MEDITE TRIMAX a suitable cladding solution with a selection of finishes.
MTX is manufactured using a wood treatment process that enhances its durability and stability. The acetylation process modifies the wood at a molecular level, making it more dimensionally stable to variations in temperature and humidity. This process also makes the wood more durable, as it prevents the material from being easily broken down. Acetyl groups, which are naturally found in all wood species, are added to the wood during this process, ensuring no harmful chemicals or toxins are introduced. Unlike traditional treatments that only improve durability, this process enhances the wood’s stability throughout, offering a product that lasts longer and performs better in various conditions.
Features and benefits:
Color | Grey White |
Finish | Primed Painted |
Material | Wood |
Shape | Rectangle |
Length | 4880 mm |
Width | 194 mm 244 mm 294 mm |
Height | 12 mm |
Uniclass | |
CAWS | H21/116 Horizontal timber weatherboarding H21/115 Vertical timber weatherboarding H21/10 Vertical timber weatherboarding H21/111 Horizontal timber weatherboarding H21/110 Vertical timber weatherboarding H21/15 Horizontal timber weatherboarding |
Classification data | |
Standard | To EN 13986. |
Reaction to fire classification | E-s2,d0. |
Release of dangerous substances | E1. |
Thermal conductivity | 0.101 W/m–K. |
Biological durability | |
Standard | To EN 13986. |
Use class | BS EN 335, Class 1. BS EN 335, Class 2. BS EN 335, Class 3. BS EN 335, Class 4. |
Profile | V-jointed tongued-and-grooved. Guidance for specification option: Double. |
Finished size | |
Face width | 194 mm. 244 mm. 294 mm. |
Thickness | 12 mm. |
Applied finish | Primed, Silk Grey RAL 7044. Fully finished, Traffic White RAL 9016. Fully finished, Anthracite Grey RAL 7016. Fully finished, Silk Grey RAL 7044. |
Length | 4880 mm. |
Bond | 0.65 N/mm². Guidance for specification option: Internal bond. |
Thermal resistance | 0.114 m²·K/W. |
ThicknessSwelling | 2%. Guidance for specification option: 24 hours. |
Country of product manufacture | Ireland |
Material | Wood |
