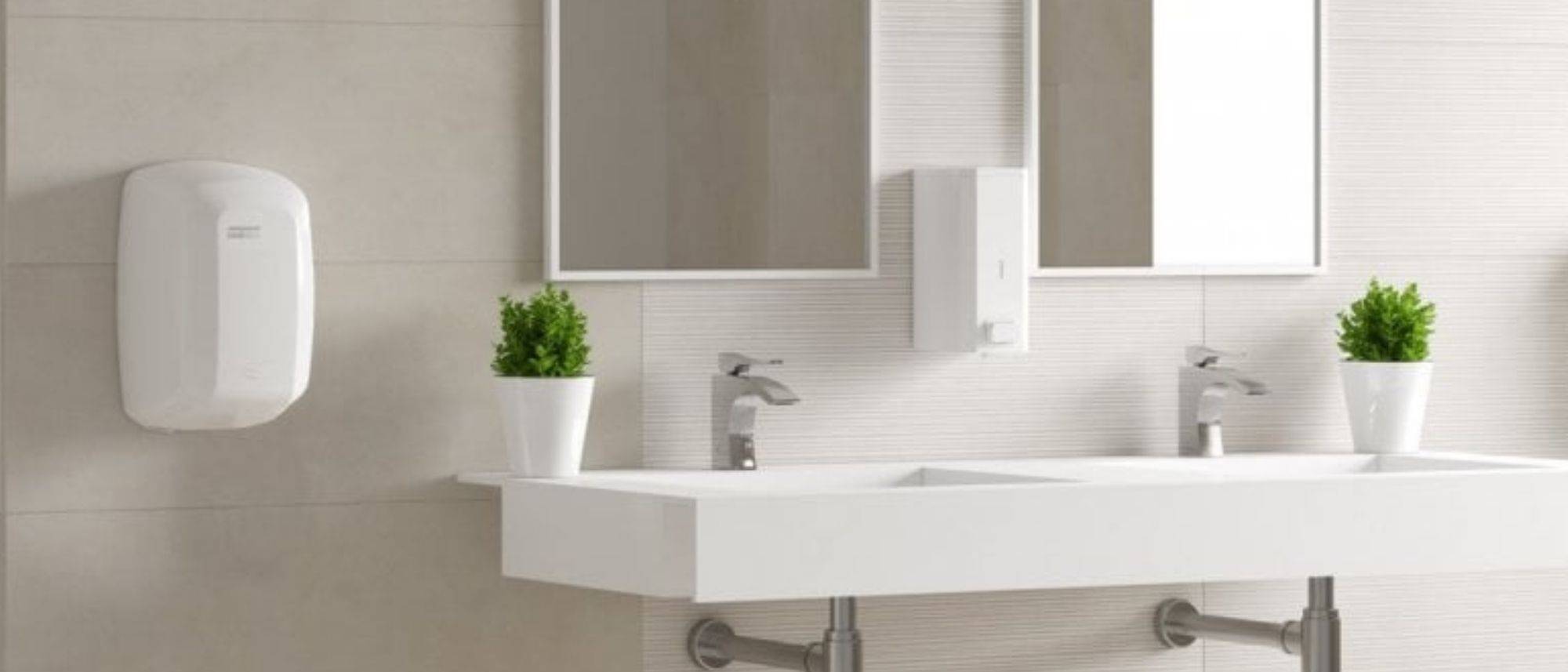

Mediclinics Machflow Plus Hand Dryer
Compare variants

Application

Suitable for use in high traffic facilities.

Description

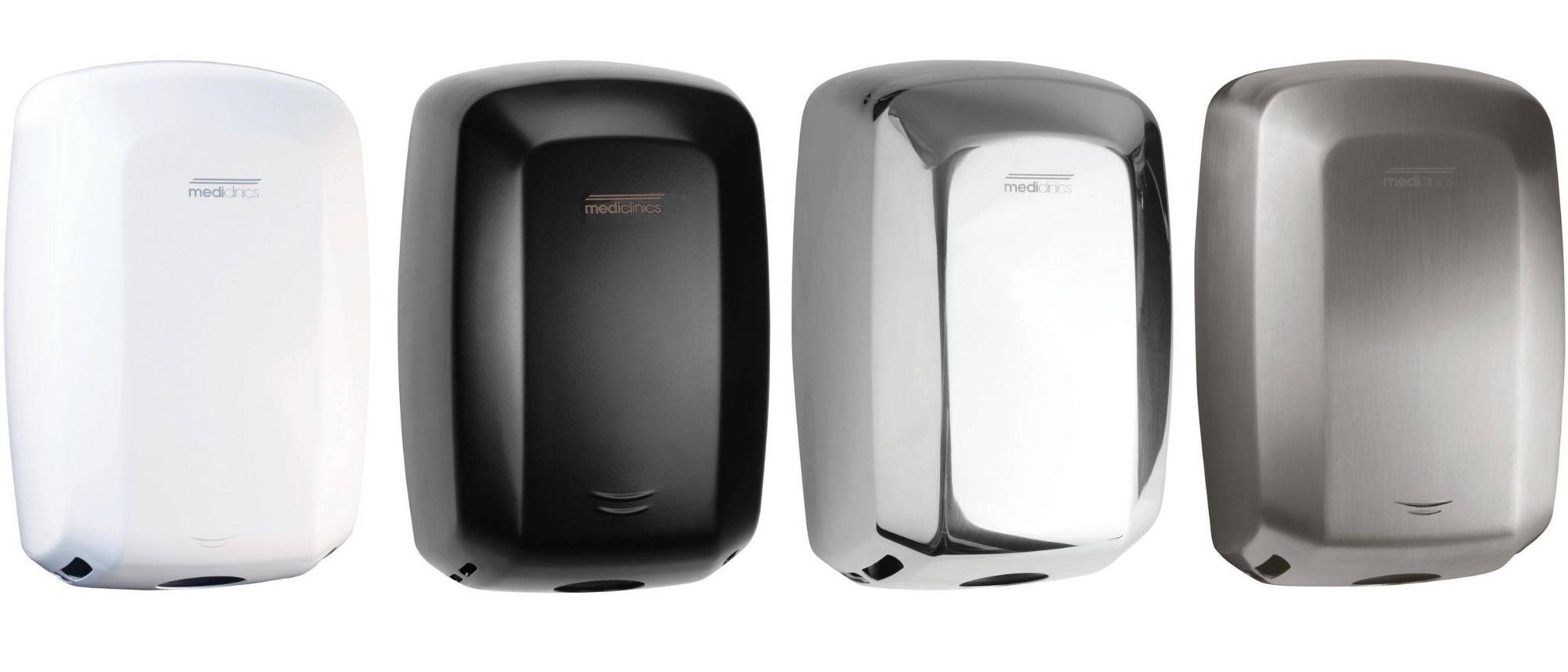

Sensor operated Machflow Plus hand dryer, available in steel, white or black finish and in AISI 304 stainless steel, bright or satin finish.


Features and benefits:

  • With a compact and very robust design, this hand dryer is energetically very efficient and sustainable, providing great energy savings and ultra-fast hand drying. Strongly recommended for high traffic places.
  • It has an adjustable power motor that regulates energy consumption (between 420 and 1500 W) and provides a maximum air output speed of 325 km/h that dries your hands between 10 and 15 seconds.
  • Machflow Plus can incorporate, optionally, a HEPA filter media that filters the solid particles in suspension (pollen, dust mites, tobacco smoke, etc.) significantly improving air quality.
  • As a complement to the HEPA filter medium, and also optionally, the Machflow Plus can incorporate an ionizer ("Ion Hygienic" technology) that cleans and purifies the air through the emission of anions, eliminating most of the germs and particles transported through the air, helping it to be purer and healthier.
  • Optionally, it is also possible to incorporate a quick assembly/ disassembly kit for the machine ("Plug-in" kit code KTP009) that allows you to install and uninstall the hand dryer easily, quickly and safely, making maintenance much more efficient and reducing your costs at the same time.
  • New air concentrator nozzle which helps to channel better the airflow on the hands. Instead of blowing air all over the hands, it focuses the airflow for a more targeted drying. The narrower opening of the concentrator gives the airflow greater pressure on exit, boosting its speed and thus, making the hand drying process much more efficient.
  • It has an odour neutralizer, code RCPOM14 that aromatizes and deodorizes the environment thanks to its soft fragrance (optional).
  • Machflow Plus is equipped with an automatic safety disconnection system that switches it off automatically after 60 seconds of continuous use.
  • It is supplied as standard with all the elements to fix it to a brick wall.


Components:

  • COVER: Made of steel (M09A… and M09AB…) or AISI 304 stainless steel (M09AC… and M09ACS…) of 1.5 mm thickness, in one piece without welding.
  • BASE PLATE: Made with PA6V0 fire resistant plastic. It incorporates 4 silent-blocks to cushion mechanical vibrations.
  • INTERIOR SET: Made of PA6V0 fire resistant plastic.
  • MOTOR: Vacuum universal brush motor, F class. Speed may be adjusted manually between 19 000 and 30 000 rpm by means of a potentiometer.
  • HEATING ELEMENT: Minimum waved wire NiCr heating element of 400 W, mounted on a mica frame that incorporates a self-resettable thermal cut-off which disconnects the whole appliance. The heating element can be disconnected by means of a On/ Off switch.
  • HANDS DETECTION SYSTEM: Fully adjustable IR electronic detection sensor by means of a potentiometer. Detection distance can be adjusted between 5 and 25 cm. It has an automatic disconnection system after 60 "of continuous use.
  • HEPA FILTER MEDIUM: Which filters the solid particles in suspension (pollen, dust mites, tobacco smoke, etc.) significantly improving air quality (optional).
  • IONIZER: Cleans and purifies the air through negative ions (anions) that remove microscopic particles from the air and make it healthier (optional).
  • ODOUR NEUTRALIZER: Aromatizes and deodorizes the environment through its soft fragrance (optional).

General information

Color

Black

White

Finish

Satin

Bright

Material

Stainless steel

AISI 304.

Steel

Shape

Rectangle

Size

Length x width x depth (± 4%).

-

Length

170 mm

Width

213 mm

Height

330 mm

WarrantyDescription

Three year

Uniclass

Pr_40_70_62_37 Hand dryersPrimary

CAWS

N13/472 Hand dryers

Product range

Mediclinics
Hand Dryer Features / Hand Dryers for Schools
Hand Dryer Features / Stainless Steel Hand Dryers
Hand Dryer Features / High Speed Hand Dryers

Specification data - Hand dryers Enhanced data

Form

High-velocity air.

Operation

Automatic.

  • Place the hands under the air outflow valve. The dryer will start automatically, and go on with no interruption as long as the hands are kept in the detection range of the sensor.
  • The appliance will stop 2 seconds after the hands are removed from the airflow or 60 seconds after continuous working.

Electrical supply

-

Power rating

420–1500 W.

Rated operational voltage (Ue)

220–240 V.

Frequency

Electrical Isolation Class I.

50 or 60 Hz.

Body

-

Material

Steel.

Finish

White.

Colour

White.

Ingress protection (minimum)

IP23.

Dimensions

Length x width x depth (± 4%).

330 x 213 x 170 mm.

Noise level at 1 m (maximum)

According UNE EN ISO 11201:2010 V2.

67–74 dB(A) at 2m.

NominalPowerConsumption

3.2 –6.4 (A).

Standby consumption 0.3 W.

Power

420–1100 W.

Heating element

400 W (interrupter On/Off switch).

Weight

5.1 kg.

Thickness

1.5 mm (cover).

Drying time

10–15 seconds.

Air flow

115–180 m³/h (1917–3000 l/min).

CenterlineAirVelocity

191–325 Km/h.

SupplyAirTemperatureHeating

+45ºC (+21ºC at 10 cm distance).

ArrangementType

Neither HEPA filter medium nor Ionizer.

Accessories

Not required.

Odor neutralizer RCPOM14.

Aromatizes and deodorizes the environment thanks to its soft fragrance.

Plug-in kit KTP009.

A quick assembly/ disassembly kit for the machine that allows you to install and uninstall the hand dryer easily, quickly and safely, making maintenance much more efficient and reducing your costs at the same time.

Third-party certification

CE marked, GS, TUV Rheinland, EAC, Bureau Veritas ISO 9001 and RoHS compliant.
