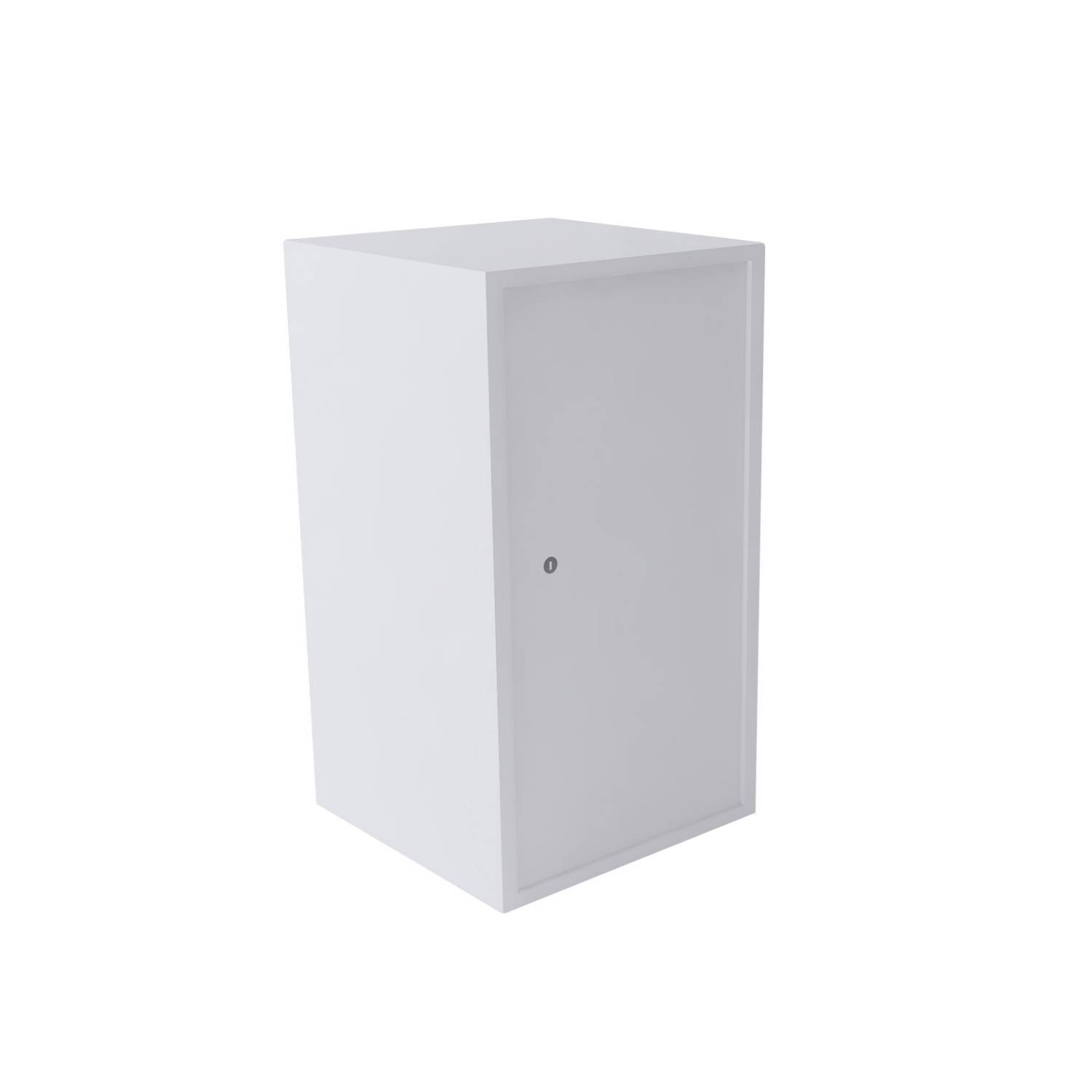

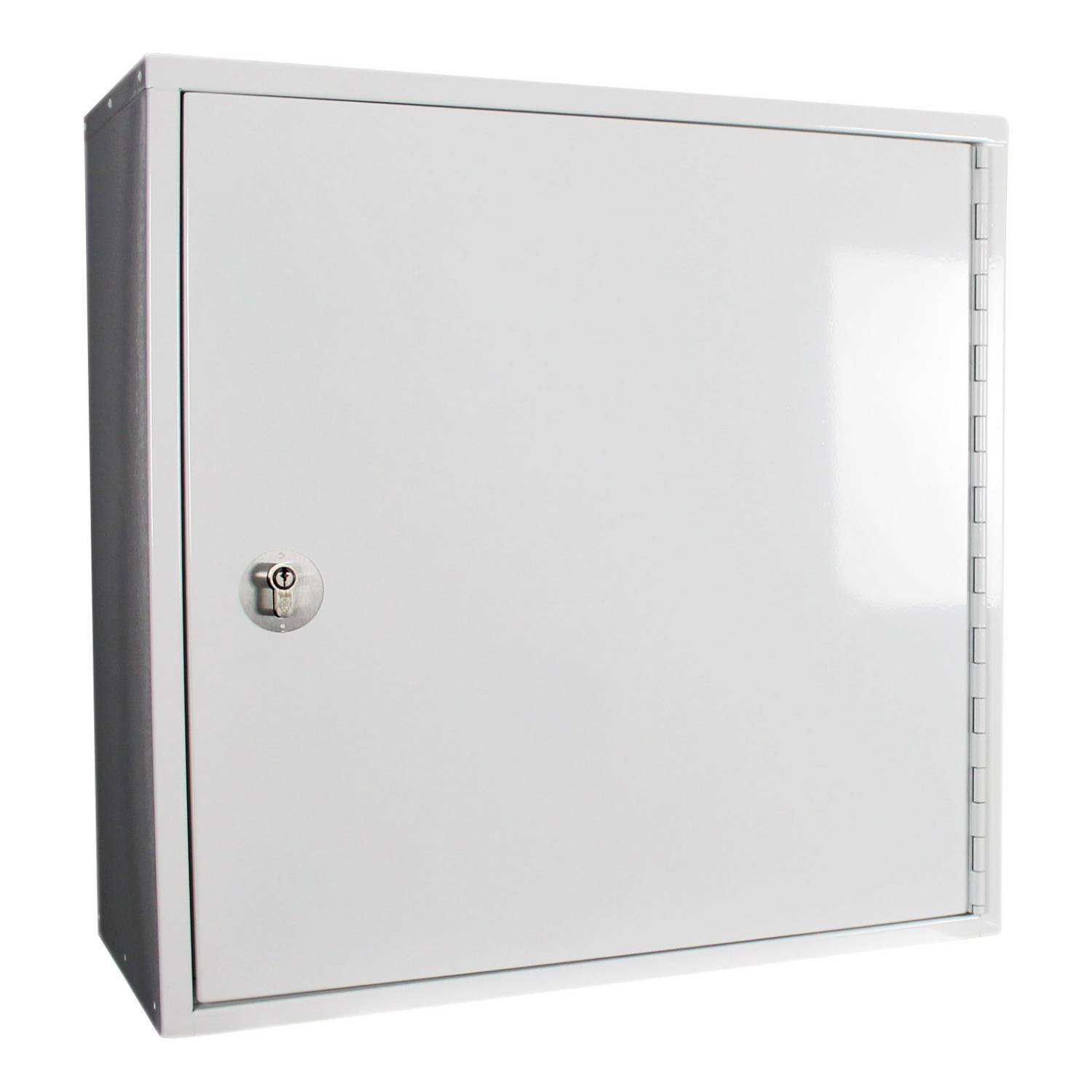

Medicine Cabinets

Verified by manufacturer 1 month ago

MED-201

Medspace Solutions Variant:
Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • Acclaim Accreditation

    Certificate type

Comprehensive range of medicine storage cabinets all conforming to BS 2881:1989, level one.

Jump to:
BOS
+44 (0)1275 394959 Website

Application

Suitable for the storage of medicines in healthcare premises.

Description

Comprehensive range of medicine storage cabinets and trolleys for a variety of applications. All conforming to BS 2881:1989, level 1, they are suitable for the storage of medicines in healthcare premises.


BS 2881:1989 is the requirement for the storage of Medicines in healthcare premises within the UK. The full title is BS 2881:1989 “Cupboards for the Storage of Medicines in Health Care Premises”. All medicine storage solutions from Medpace Solutions are fully compliant with all the relevant regulations within the United Kingdom.


HTM71 medicine cabinets are fitted with HTM71 universal liners. This allows the cabinet to take HTM71 trays and dividers. HTM71 is a standard for storage within the NHS allowing for easy modular storage in cabinets and trolleys.


Piano hinges are used to hold the doors in place. As a result, this increases the access size into the cabinet. Enabling better use of the internal space. The piano hinge is also stronger than other hinging methods, adding further to the security level offered by the cabinets.


Features and benefits:

  • BS 2881:1989 (Security Level One) Specification for Cupboards for the Storage of Medicines in Health Care Premises.
  • BS 3621 anti-pick and drill, key retaining six pin cylinder lock (supplied with three keys).
  • Constructed from 0.9 / 1.2 mm thick cold reduced mild steel sheet.
  • 3 mm thick anchor plates at all fixing points.
  • Fully welded construction.
  • Anti-Jimmy folded return down full length of hinge side of door.
  • A 2 mm thick mild steel continuous hinge. Complete with 25 mm joints and 4.5 mm diameter hinge pin. Additionally, to prevent removal of the door the hinge pin is welded.
  • Wipe clean powder-coated shelving.
  • One x six pin Euro-profile cylinder lock incorporating anti-pick, anti-drill, anti-bump and fire resistant features.
  • Independently tested to meet BS EN 1303:2005.
  • Kitemark – KM532920.
  • TS007 1 Star Cylinder.
  • Key security grade 5.
  • Torque resistance of plug/cylinder relevant to attack resistance – 30 Nm.
  • Meets the MLA vulnerability test for cylinders.
  • Key retention – the key cannot be removed when the door is open.
  • Cylinder meets BS EN 1303:2005 which is the latest security standard testing against all methods of attack. The lock holds Kitemark KM532920.
  • The cylinder holds Secured by Design accreditation (TS007). This is the Police preferred specification.

General information

Color

White

Guidance for specification option:

RAL 9003 (White) textured.

Finish

Textured

Material

Steel

Shape

Rectangle

Length

245 mm

300 mm

350 mm

455 mm

500 mm

Show more

Width

275 mm

300 mm

355 mm

500 mm

525 mm

Show more

Height

370 mm

600 mm

700 mm

900 mm

1200 mm

Show more

Uniclass

Pr_40_30_87_46 Laboratory storage unitsPrimary

CAWS

N10/130 Laboratory furniture

N10/135 Storage and display units

Specification data - Laboratory storage units

Form

Floor-mounted shelf units.

Wall-mounted shelf units.

Dimensions

600 x 300 x 600 mm.

Manufacturer guidance

H x D x W.

Material

Mild steel.

Finish

Textured.

Colour

White (RAL 9003).

Integral accessories

Six pin euro-profile cylinder lock.

Accessories

Not required.

Visual alarm.

Guidance for specification option:

This is a warning light that is activated when the door is open. It’s a 9 Volt self-contained unit.

Volt-free door switch.

Guidance for specification option:

This is designed to connect the cabinet to an external nurse call system or warning light.

Sustainability data

Contains Red List materials

Yes

Country of material origin

China

Country of product manufacture

United Kingdom

Recyclability

Made from materials that are widely accepted by recycling facilities.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

25 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Constructionline Gold

Constructionline Gold

Facilitiesline Gold

Health & Safety Accreditation

Health & Safety Accreditation

CHAS

 Acclaim Accreditation

Acclaim Accreditation

Acclaim SSIP

Literature

BU455-MED - HTM71 Medicine Base Storage
Unit

BU455-MED - HTM71 Medicine Base Storage Unit

BU655-MED - HTM71 Medicine Base Storage
Unit

BU655-MED - HTM71 Medicine Base Storage Unit

BU5005-MED - HTM63 Medicine Base Storage
Unit

BU5005-MED - HTM63 Medicine Base Storage Unit

FH355-MED - HTM71 Medicine Full Height Storage Unit

FH355-MED - HTM71 Medicine Full Height Storage Unit

FH455-MED - HTM71 Medicine Full Height Storage Unit

FH455-MED - HTM71 Medicine Full Height Storage Unit

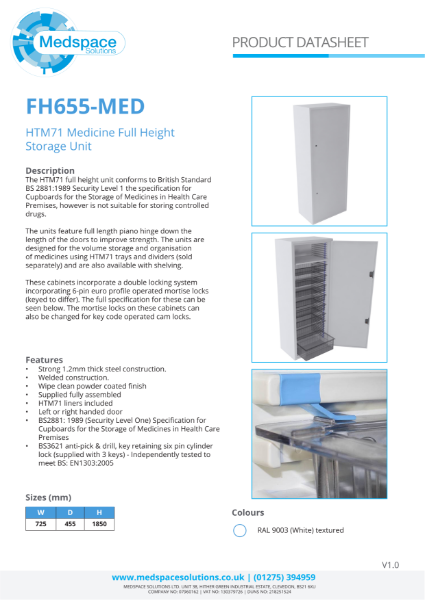

FH655-MED - HTM71 Medicine Full Height Storage Unit

FH655-MED - HTM71 Medicine Full Height Storage Unit

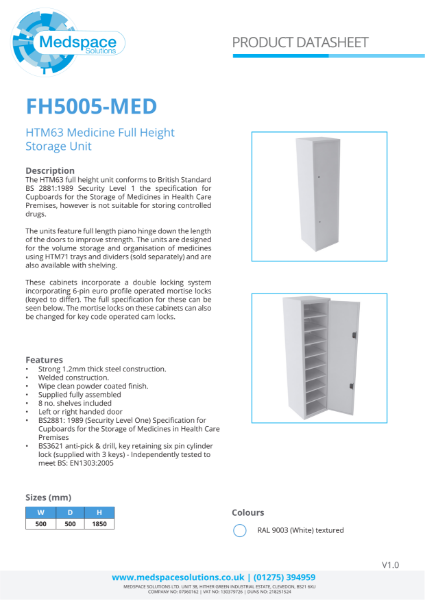

FH5005-MED - HTM63 Medicine Full Height Storage Unit

FH5005-MED - HTM63 Medicine Full Height Storage Unit

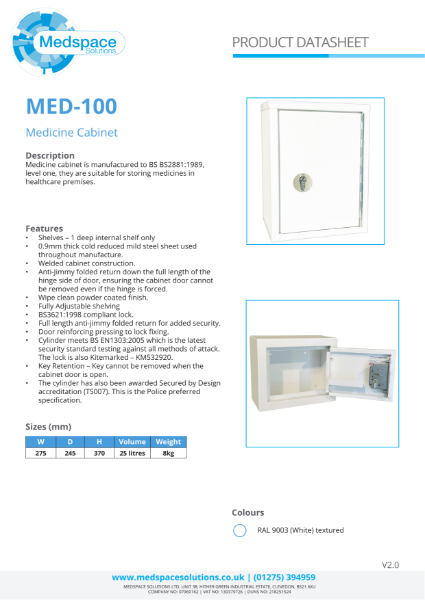

MED-100 - Medicine Cabinet

MED-100 - Medicine Cabinet

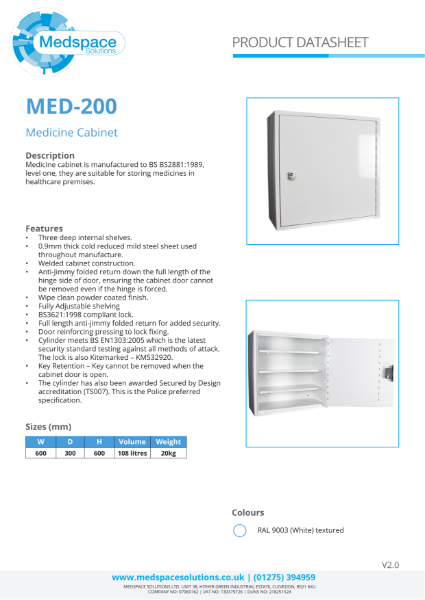

MED-200 - Medicine Cabinet

MED-200 - Medicine Cabinet

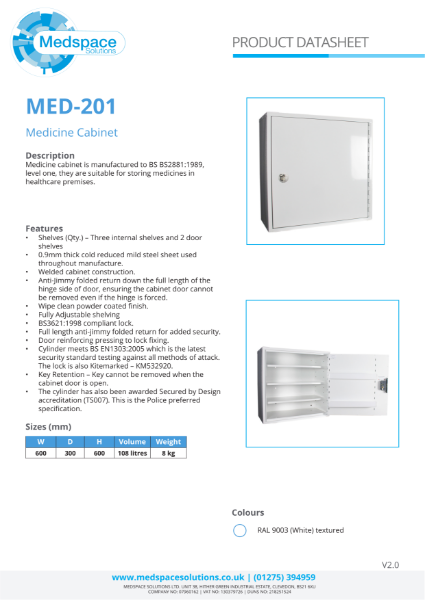

MED-201 - Medicine Cabinet

MED-201 - Medicine Cabinet

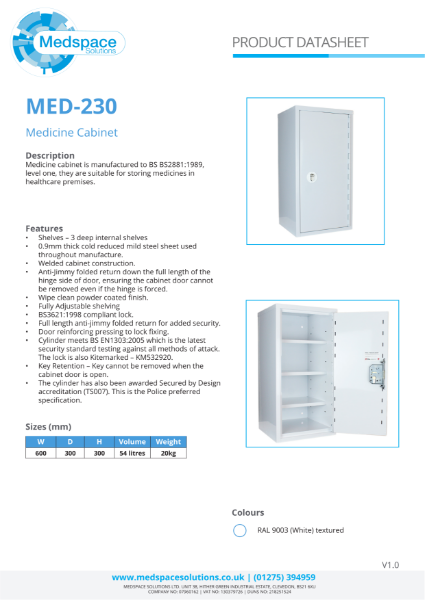

MED-230 - Medicine Cabinet

MED-230 - Medicine Cabinet

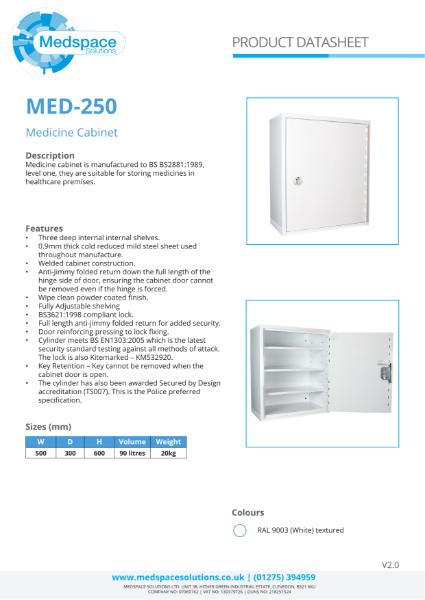

MED-250 - Medicine Cabinet

MED-250 - Medicine Cabinet

MED-300 - Medicine Cabinet

MED-300 - Medicine Cabinet

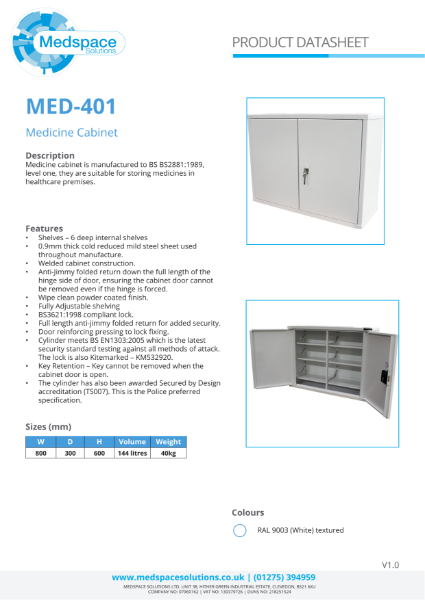

MED-401 - Medicine Cabinet

MED-401 - Medicine Cabinet

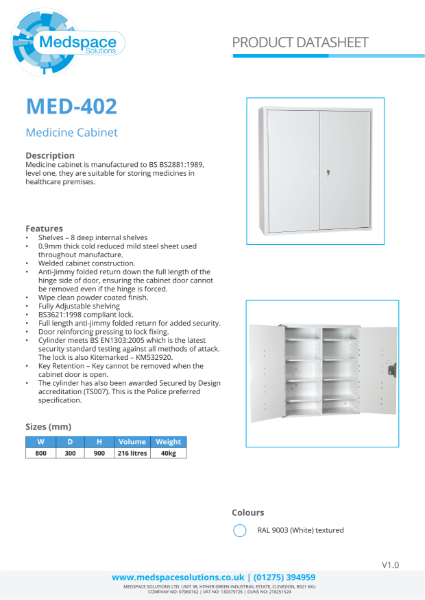

MED-402 - Medicine Cabinet

MED-402 - Medicine Cabinet

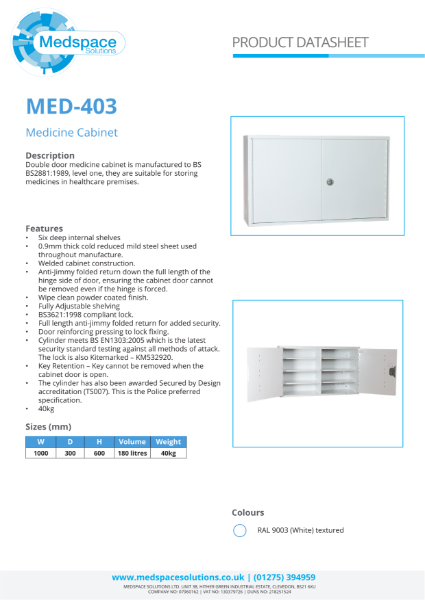

MED-403 - Medicine Cabinet

MED-403 - Medicine Cabinet

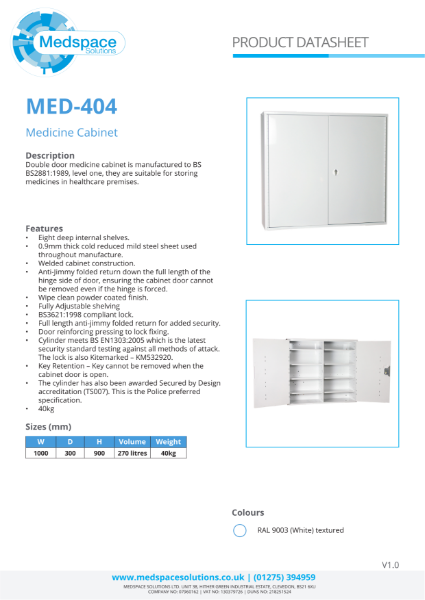

MED-404 - Medicine Cabinet

MED-404 - Medicine Cabinet

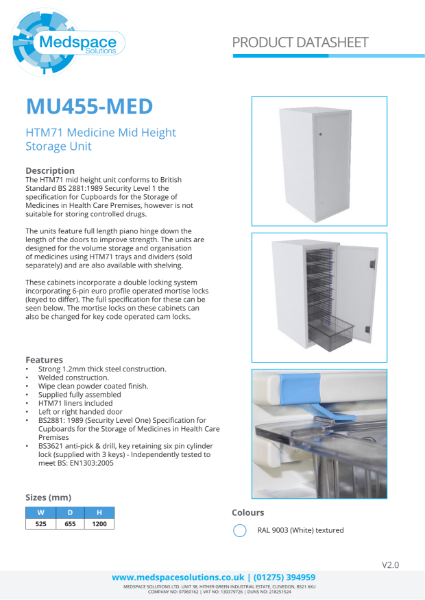

MU455-MED - HTM71 Medicine Mid Height Storage Unit

MU455-MED - HTM71 Medicine Mid Height Storage Unit

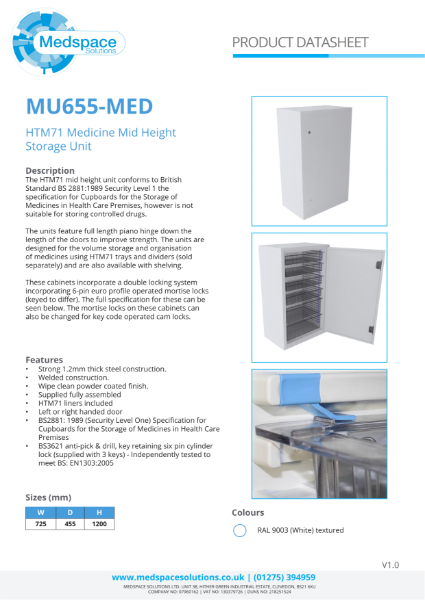

MU655-MED - HTM71 Medicine Mid Height Storage Unit

MU655-MED - HTM71 Medicine Mid Height Storage Unit

WU455-MED - HTM71 Medicine Wall Storage Unit

WU455-MED - HTM71 Medicine Wall Storage Unit

WU655-MED - HTM71 Medicine Wall Storage Unit

WU655-MED - HTM71 Medicine Wall Storage Unit

WU5005-MED - HTM63 Medicine Wall Mounted Storage Unit

WU5005-MED - HTM63 Medicine Wall Mounted Storage Unit
