Mechanically Fixed Single Ply Warm Roof System - IKO Armourplan P - Warm roof system

Name: Mechanically Fixed Single Ply Warm Roof System - IKO Armourplan P - Warm roof system
Brand: IKO Ireland
SKU: xaHFWUfx7zYmEt68K1P1ZD

Verified by manufacturer 1 day ago

IKO Ireland

Product certifications:

NSAI Agrément Certificate
Certificate type

Single ply mechanically fastened roof covering system.

Jump to:

+353 1 88 55 090 Website

Application

Used on both flat and sloping roofs and is suitable for both new build and refurbishment installations.
Completely UV stable throughout.
Mechanically fastened in the overlap using IKOfix Membrane Tubes and IKOfix Fixings into the deck.
Suitable for loose laid ballasted systems.
Armourplan P is also used as the upstand detailing membrane on all Armourplan P/PSG systems.

Description

Single ply mechanically fastened roof covering system.

Features and benefits:

BBA Certified 05/4287.
Good UV resistance and durability.
Good mechanical properties and product performance.
Efficient and safe installation.
Secure seam welding quality.
Aesthetically pleasing finish.
Complete range of fixings and accessories available.

System includes:

IKO Armourplan P, D or G detailing membranes.
IKO Armourplan P Attached with IKO fix tubes and fixings.
Unilin FR/ALU insulation or Unilin TR/ALU insulation.
IKO Spectravap PE AVCL.
Suitable ancillaries including paving supports, parapet and vertical outlets etc.
Deck By others.

General information

Color	Grey
Material	PVC
Length	Bespoke
Width	Bespoke
Height	1.2 mm
Warranty description	Ten year 15 year 20 year

Uniclass	Ss_30_40_30_80 Single layer sheet warm roof covering systemsPrimary
CAWS	J42/10 Warm deck roof covering J42/110 Warm deck roof covering

Specification data - Single layer sheet warm roof covering systems

Classification data
Air and vapour control layer	-

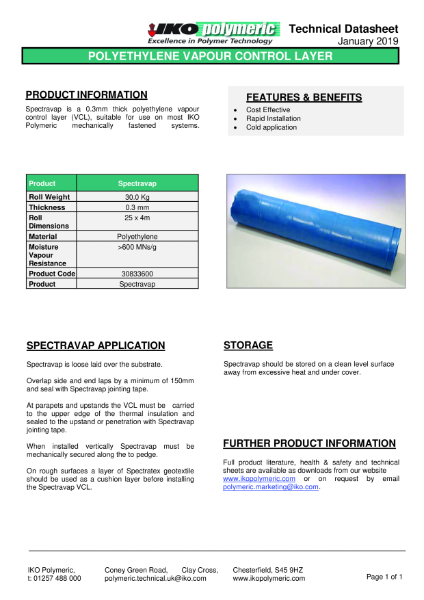

Type	IKO Spectravap PE AVCL. Guidance for specification option: Spectravap is a 0.3 mm thick polyethylene vapour control layer (VCL), suitable for use on most IKO Polymeric mechanically fastened systems.
Attachment	Loose laid with 150 mm side and end laps taped with Spectravap jointing tape.
Insulation	-
Type	Unilin FR/ALU Insulation. Unilin TR/ALU Insulation.
Attachment	Mechanically fastened in accordance with IKO wind load calculation using IKOfix Fasteners and Thermally Broken Insulation Tubes.
Separating layer	Not required. Spectratex 300 gsm separation fleece.
Waterproof covering	-
Type	IKO Armourplan P, Mid Grey (RAL 7046). IKO Armourplan P, Slate Grey (RAL 7015). Manufacturer guidance Polyester scrim reinforced membrane for mechanically fastened roofing systems. Offers enhanced mechanical properties over standard PVC membranes thanks to having high polymer content throughout and high performance reinforcement. Suitable for adhered systems bonded using Armourplan contact or Sprayfast PCA adhesive.
Attachment	Mechanically fastened in accordance with IKO wind load calculation using IKOfix Fasteners and Membrane Tubes.
Joints	Hot Air Welded.
Accessories	None. Armourplan standing seam profile, mid grey. Guidance for specification option: Armourplan PVC Standing Seam Profile is a preformed profile used to simulate a metal standing seam joint. The profile is manufactured from PVC and is hot air welded to the installed Armourplan Membrane at a layout specified by the client Armourplan standing seam profile, slate grey.

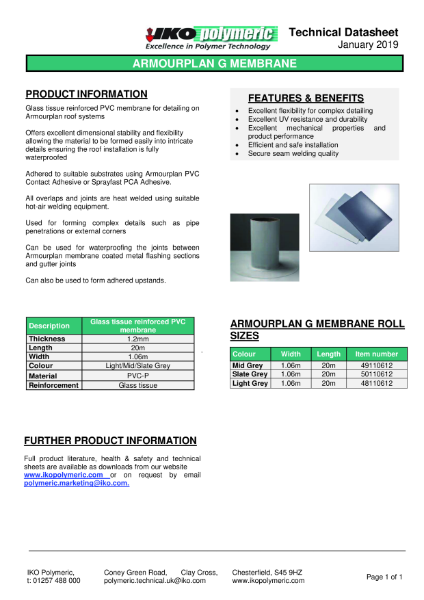

Detailing/ Vertical work	IKO ARMOURPLAN D, Mid Grey. IKO ARMOURPLAN D, Slate Grey. IKO ARMOURPLAN G, Mid Grey. IKO ARMOURPLAN G, Slate Grey. IKO ARMOURPLAN P, Mid Grey. Guidance for specification option: Polyester scrim reinforced membrane for mechanically fastened roofing systems. Offers enhanced mechanical properties over standard PVC membranes thanks to having high polymer content throughout and high performance reinforcement. Suitable for adhered systems bonded using Armourplan contact or Sprayfast PCA adhesive. IKO ARMOURPLAN P, Slate Grey.
Weight	To EN 1849-2, 1700 g/m². Guidance for specification option: This value relates to the Armourplan P membrane.
TensileStrength	To EN 12311-2, ≥ 1500 N/50 mm. Guidance for specification option: This value relates to the Armourplan P membrane.
Elongation at break	To EN 12311-2, ≥ 15%. Guidance for specification option: This value relates to the Armourplan P membrane.
Tear resistance	To EN 12310-2, ≥ 150 N. Guidance for specification option: This value relates to the Armourplan P membrane.
ShearStrength	To EN 12317-2, ≥ 1200 N. Guidance for specification option: This value relates to the Armourplan P membrane.
Impact resistance	To EN 12691, ≥ 1100 mm soft; to EN 12691, ≥450 mm hard. Manufacturer guidance These values relate to the Armourplan P membrane.
Static load resistance	To EN 12730, ≥ 20 kg. Guidance for specification option: This value relates to the Armourplan P membrane.
Dimensional stability	To EN 1107-2, ≤ 0.5%. Guidance for specification option: 6 hours at 80°C. Manufacturer guidance This value relates to the Armourplan P membrane.
Flexibility at low temperature	To EN 495-5, ≤ -30°C. Guidance for specification option: This value relates to the Armourplan P membrane.
Outlets	IKO Flexible PVC Outlets.
Third-party certification	NSAI Agrément (Irish Agrément Board) No. 24/0444; BBA Agrement Certificate No. 05/4287; CE marked.
Standards	To BS EN ISO14001, ISO 9001 and BES 6001.
