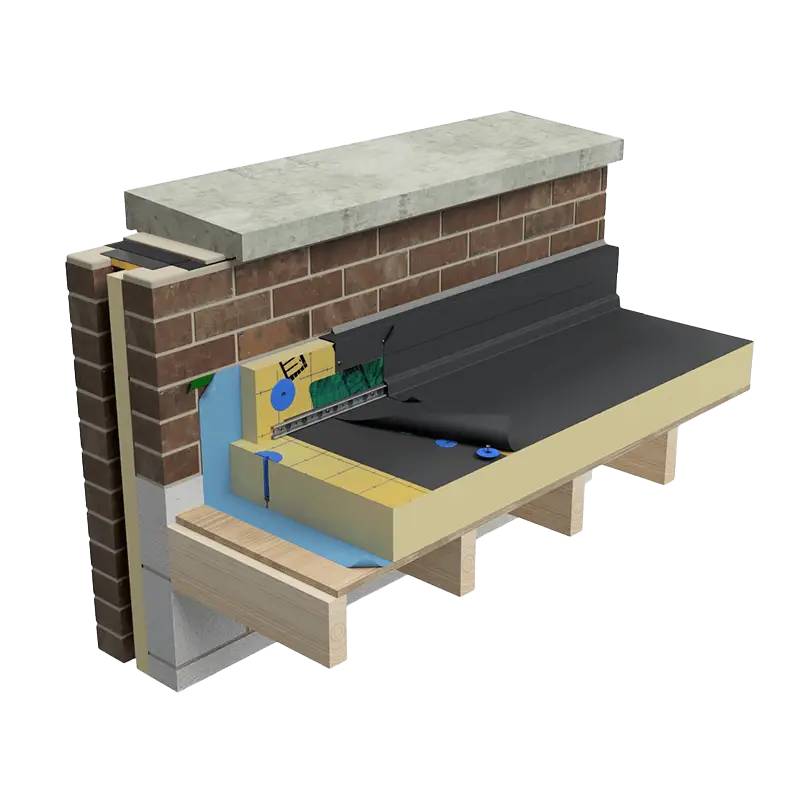

Name: Mechanically Fixed Single Ply Warm Roof System - IKO Armourplan P - 20/25 Year Guarantee - Warm roof system
Brand: IKO UK
SKU: 52GDDEX67hSWpLsUwSxqBj

Color

Grey

Material

PVC

Length

Bespoke

Width

Bespoke

Height

1.2 mm

Warranty description

20 year

25 year

Uniclass

Ss_30_40_30_80 Single layer sheet warm roof covering systemsPrimary

CAWS

J42/10 Warm deck roof covering

J42/110 Warm deck roof covering

Classification data

Air and vapour control layer

Type

IKO Spectravap PE AVCL.

Guidance for specification option:

Spectravap is a 0.3 mm thick polyethylene vapour control layer (VCL), suitable for use on most IKO Polymeric mechanically fastened systems.

Attachment

Loose laid with 150 mm side and end laps taped with Spectravap jointing tape.

Insulation

Type

IKO enertherm Gold Insulation, 2400 x 1200 mm.

Guidance for specification option:

Thickness: 30, 50, 60, 80, 100, 120, 140, 150 mm. Consult literature and insert requirements.

IKO enertherm Gold Insulation, 1200 x 1200 mm.

Guidance for specification option:

Thickness: 30, 40, 50, 70, 80, 100, 120,140 mm. Consult literature and insert requirements.

IKO enertherm MW Insulation.

Guidance for specification option:

A dual-density stone wool insulation board. It is used for the thermal insulation in a variety of warm flat roofing system applications where a non-combustible and/ or acoustic insulation solution is required. Width: 1200 mm.

IKO enertherm EPS Insulation.

Guidance for specification option:

EPS insulation is not compatible with PVC. If the EPS is directly below the PVC membrane an IKOtex 300 gsm separation fleece must be installed between the EPS and PVC membrane.

IKO enertherm PIR/EPS Hybrid Insulation.

Rockwool Insulation Boards.

Guidance for specification option:

Where Acoustic Specification Details are required, i.e. sports halls, leisure centres, and swimming pools, mechanically fixed ROCKWOOL insulation boards will be used.

Manufacturer guidance

IKO enertherm GOLD is a 100 % CFC, HCFC or HFC-free insulation board with a rigid polyisocyanurate foam core, clad on both sides with a multi-layer gastight aluminium complex. This high-quality rooftop insulation consists of no fewer than seven layers, combined into a single complex. It is tested under extreme conditions in respect of water absorption, mechanical properties, corrosion resistance and emissivity.

Attachment

Mechanically fastened in accordance with IKO wind load calculation using IKOfix Fasteners and Thermally Broken Insulation Tubes.

Mechanically fixed ROCKWOOL for Acoustic Specifications.

Guidance for specification option:

For Rockwool insulation boards.

Separating layer

Not required.

Spectratex 300 gsm separation fleece.

Waterproof covering

Type

IKO Armourplan P, mid grey.

IKO Armourplan P, slate grey.

Manufacturer guidance

Polyester scrim reinforced membrane for mechanically fastened roofing systems. Offers enhanced mechanical properties over standard PVC membranes thanks to having high polymer content throughout and high performance reinforcement. Suitable for adhered systems bonded using

Armourplan contact or Sprayfast PCA adhesive.

Attachment

Mechanically fastened in accordance with IKO wind load calculation using IKOfix Fasteners and Membrane Tubes.

Joints

Hot Air Welded.

Accessories

None.

Armourplan standing seam profile, mid grey.

Guidance for specification option:

Armourplan PVC Standing Seam Profile is a preformed profile used to simulate a metal standing seam joint.

The profile is manufactured from PVC and is hot air welded to the installed Armourplan Membrane at a layout specified by the client

Armourplan standing seam profile, slate grey.

Deck profile

TATA D60, 0.7 mm, Solid Deck, 185 mm – 0.2 Thermal/ Rw 43 dB Lia 49.7 dB.

TATA D60, 0.7 mm, Solid Deck, 210 mm – 0.18 Thermal/ Rw 44 dB/ Lia 48.7 dB.

TATA D60, 0.7 mm, Solid Deck, 255 mm – 0.15 Thermal/ Rw 46 dB/ Lia 47.1 dB.

TATA D60, 0.7 mm, Solid Deck, 300 mm – 0.13 Thermal/ Rw 48 dB/ Lia 45.7 dB.

TATA D60, 0.7 mm, Perforated Deck with ROCKWOOL Infill, 185 mm – 0.2 Thermal/ Rw 40 dB/ Lia 50 dB.

TATA D60, 0.7 mm, Perforated Deck with ROCKWOOL Infill, 210 mm – 0.18 Thermal/ Rw 41 dB/ Lia 49 dB.

TATA D60, 0.7 mm, Perforated Deck with ROCKWOOL Infill, 255 mm – 0.15 Thermal/ Rw 43 dB/ Lia 47.3 dB.

TATA D60, 0.7 mm, Perforated Deck with ROCKWOOL Infill, 300 mm – 0.13 Thermal/ Rw 46 dB/ Lia 45.9 dB.

Detailing/ Vertical work

IKO ARMOURPLAN D, Light Grey.

Guidance for specification option:

Non-reinforced PVC membrane for detailing on Armourplan roof systems.

Offers excellent flexibility allowing the material to be formed easily into intricate details ensuring the roof installation is fully waterproofed. Adhered to suitable substrates using Armourplan PVC Contact Adhesive or Sprayfast PCA Adhesive.

IKO ARMOURPLAN D, Mid Grey.

IKO ARMOURPLAN D, Slate Grey.

IKO ARMOURPLAN G, Light Grey.

Guidance for specification option:

IKO Armourplan G membrane is a glass tissue reinforced detailing PVC membrane on IKO Armourplan roof systems. The glass tissue reinforcement offers excellent dimensional stability and flexibility allowing the material to form easily into intricate details ensuring the roof installation is fully waterproofed. IKO Armourplan G Detailing PVC Membrane can be adhered to suitable detailing surfaces using IKO Armourplan PVC Contact Adhesive or IKOpro Sprayfast PCA Adhesive.

IKO ARMOURPLAN G, Mid Grey.

IKO ARMOURPLAN G, Slate Grey.

IKO ARMOURPLAN P, Mid Grey.

Guidance for specification option:

Armourplan contact or Sprayfast PCA adhesive.

IKO ARMOURPLAN P, Slate Grey.
