Fully Adhered Single Ply Warm Roof System - IKO Armourplan PSG - 20/25 Year Guarantee

Name: Fully Adhered Single Ply Warm Roof System - IKO Armourplan PSG - 20/25 Year Guarantee
Brand: IKO UK
SKU: nkPJ7ZEtpki1PatyeU8GDY

Verified by manufacturer 1 day ago

IKO UK

Product certifications:

BBA Agrément Certificate
Certificate type

Single ply adhered roof covering system.

Jump to:

+44 (0)1257 255 771 Website

Application

Suitable for adhered roofing applications.

Description

IKO Armourplan systems offer flexible and durable waterproofing solutions across a wide range of roofing applications. With single ply options, specifiers can minimise roof zone depths and enjoy more flexibility with design. IKO Armourplan roofing boasts a fast and safe installation methodology, as no naked flames or frames are involved in the process. IKO Armourplan PSG is adhered onto most common substrates and forms a sleek finish.

Key benefits to your project

BBA Certified 05/4287.
Classified BROOF(t4) in accordance with BS EN 13501-5: 2005 fire classification. This enables unrestricted use within Part B4 of the Approved Documents of the Building Regulations (tested under ENV1187). This is based on specific system build-up testing, so please contact IKO for further clarification or refer to the product BBA certificate, where applicable.
Good UV resistance and durability.
Good mechanical properties and product performance.
Efficient and safe installation.
Secure seam welding quality.
Aesthetically pleasing finish.
Complete range of fixings and accessories available.

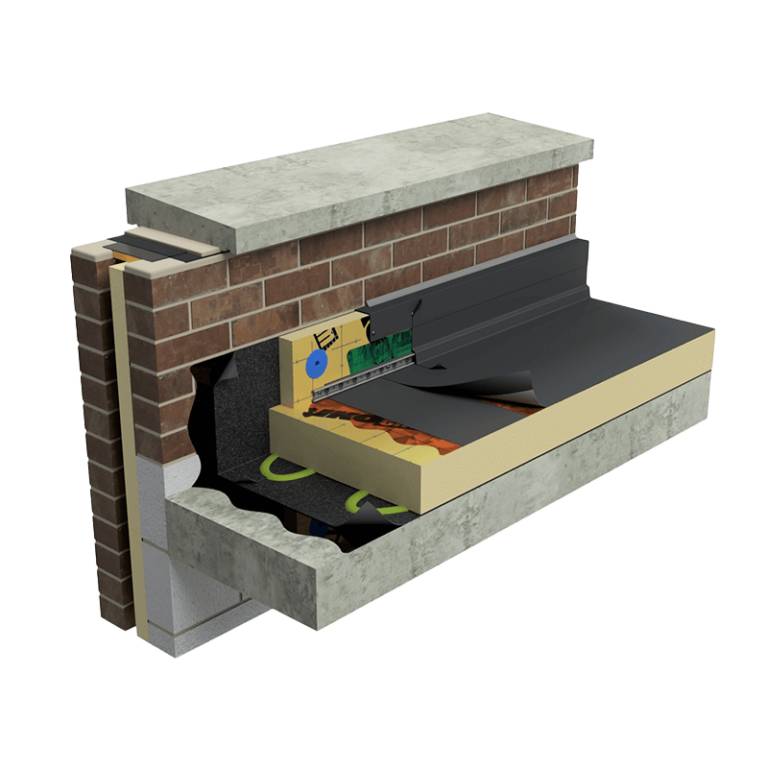

The system includes:

IKO Armourplan P, D, or G detailing membranes.
IKO Armourplan PSG is attached with IKO Low foam PU Adhesive.
IKO enertherm GOLD, MW, EPS, and PIR/EPS hybrid insulation.
IKO ULTRA S-A VCL and IKO ULTRA T-O VCL.
Suitable ancillaries, including paving supports, parapets, and vertical outlets, etc.
Deck by others.

General information

Color	Grey
Material	PVC
Length	Bespoke
Width	Bespoke
Warranty description	20 year 25 year

Uniclass	Ss_30_40_30_80 Single layer sheet warm roof covering systemsPrimary
CAWS	J42/10 Warm deck roof covering J42/110 Warm deck roof covering

Product range	Single Ply (Polymeric) Systems

Specification data - Single layer sheet warm roof covering systems

Classification data
Preparation	-
Skirtings and vertical work	IKOpro Systems bonding agent. Guidance for specification option: S-A membranes only IKOpro Systems Bonding Agent (black) is a specially formulated primer. Enhancing the properties of self- adhesive bitumen roofing membranes, it promotes strong bonds even at temperatures as low as 5°C. IKOpro SPRAYFAST MPP. Guidance for specification option: IKOpro Sprayfast MPP (Black, Multipurpose Primer) is a specially formulated high performance bonding primer, delivered and applied via the delivery system below. It allows the speed of application of the bonding primer to be five times faster than conventional bitumen primers, promoting strong bonds at temperatures as low as 5°C. IKOpro quick dry bitumen primer . Guidance for specification option: T-O membranes only IKOpro Quick Dry Bitumen Primer (black) is a fast-drying bitumen priming solution designed to prepare various substrates prior to the application of bitumen membranes.
Air and vapour control layer	-
Type	IKO Ultra S-A Air and Vapour Control Layer. Guidance for specification option: Self adhesive for combustible substrates S-A VCL (Self-Adhesive) is a high performance vapour barrier for use in adhered IKO Polymeric systems. It is composed of a polyester reinforced aluminium core, coated with a rubber modified, self-adhesive bitumen coating. The membrane is protected on the underside with a release film backing and coated on the top surface with a fine mineral finish. A selvedge of 75mm width, protected with release film, provides a quick means of completing side laps. IKO Ultra T-O Air and Vapour Control Layer. Guidance for specification option: Torch applied to non combustible substrates only T-O VCL (Torch-on) is a high performance vapour control layer for use in adhered IKO Polymeric systems. It comprises an impervious aluminium core, reinforced with polyester and coated with a specially formulated quick melt SBS modified bitumen. The lower surface has a sacrificial film which rapidly melts during the torching operation.
Insulation	-
Type	IKO enertherm Gold Insulation, 2400 x 1200 mm. Guidance for specification option: Thickness: 30, 50, 60, 80, 100, 120, 140, 150 mm. Consult literature and insert requirements. IKO enertherm Gold Insulation, 1200 x 1200 mm. Guidance for specification option: Thickness: 30, 40, 50, 70, 80, 100, 120,140 mm. Consult literature and insert requirements. IKO enertherm MW Insulation. Guidance for specification option: A dual-density stone wool insulation board. It is used for the thermal insulation in a variety of warm flat roofing system applications where a non-combustible and/ or acoustic insulation solution is required. Width: 1200 mm. IKO enertherm EPS Insulation. IKO enertherm PIR/EPS Hybrid Insulation. Rockwool Insulation Boards. Guidance for specification option: Where Acoustic Specification Details are required, i.e. sports halls, leisure centres, and swimming pools, mechanically fixed ROCKWOOL insulation boards will be used. Manufacturer guidance IKO enertherm GOLD is a 100 % CFC, HCFC or HFC-free insulation board with a rigid polyisocyanurate foam core, clad on both sides with a multi-layer gastight aluminium complex. This high-quality rooftop insulation consists of no fewer than seven layers, combined into a single complex. It is tested under extreme conditions in respect of water absorption, mechanical properties, corrosion resistance and emissivity.
Attachment	IKOpro PU bonding adhesive. IKOpro Sprayfast IBA. IKOpro PUMA Zero Adhesive. Mechanically fixed ROCKWOOL for Acoustic Specifications. Guidance for specification option: For Rockwool insulation boards.
Waterproof covering	-
Type	IKO Armourplan PSG, mid grey. IKO Armourplan PSG, slate grey. Manufacturer guidance A 1.2 mm thick glass tissue reinforced polyester fleece-backed PVC single ply roofing membrane. Used in a wide range of roofing applications on both flat and sloping roofs. Suitable for both new build and refurbishment installations, including specialist applications such as simulated metal roofs. Can be adhered onto most common substrates using Spectrabond Low Foaming PU adhesive or IKOpro Sprayfast FMA adhesive. Forms a sleek finish.
Attachment	IKOpro Low Foaming PU adhesive. IKOpro Sprayfast FMA.
Joints	Hot Air Welded.

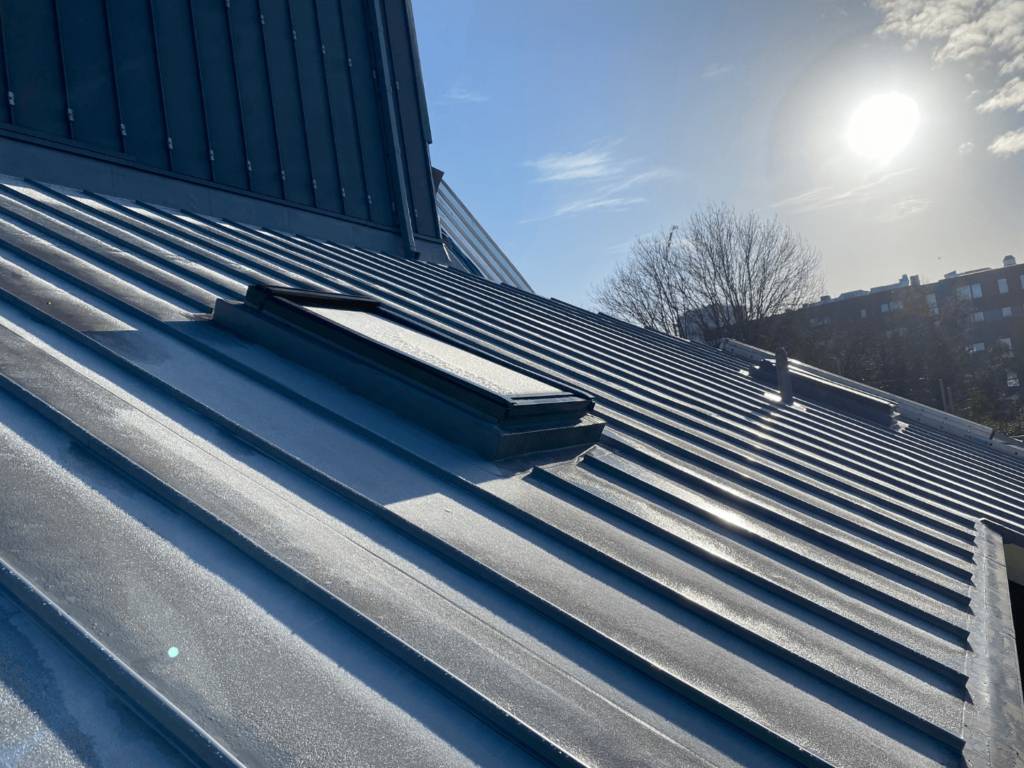

Accessories	None. Armourplan standing seam profile, mid grey. Guidance for specification option: Armourplan PVC Standing Seam Profile is a preformed profile used to simulate a metal standing seam joint. The profile is manufactured from PVC and is hot air welded to the installed Armourplan Membrane at a layout specified by the client Armourplan standing seam profile, slate grey.
Deck profile	TATA D60, 0.7 mm, Solid Deck, 185 mm – 0.2 Thermal/ Rw 43 dB Lia 49.7 dB. TATA D60, 0.7 mm, Solid Deck, 210 mm – 0.18 Thermal/ Rw 44 dB/ Lia 48.7 dB. TATA D60, 0.7 mm, Solid Deck, 255 mm – 0.15 Thermal/ Rw 46 dB/ Lia 47.1 dB. TATA D60, 0.7 mm, Solid Deck, 300 mm – 0.13 Thermal/ Rw 48 dB/ Lia 45.7 dB. TATA D60, 0.7 mm, Perforated Deck with ROCKWOOL Infill, 185 mm – 0.2 Thermal/ Rw 40 dB/ Lia 50 dB. TATA D60, 0.7 mm, Perforated Deck with ROCKWOOL Infill, 210 mm – 0.18 Thermal/ Rw 41 dB/ Lia 49 dB. TATA D60, 0.7 mm, Perforated Deck with ROCKWOOL Infill, 255 mm – 0.15 Thermal/ Rw 43 dB/ Lia 47.3 dB. TATA D60, 0.7 mm, Perforated Deck with ROCKWOOL Infill, 300 mm – 0.13 Thermal/ Rw 46 dB/ Lia 45.9 dB.
Detailing/ Vertical work	IKO ARMOURPLAN D, Light Grey. Guidance for specification option: Non-reinforced PVC membrane for detailing on Armourplan roof systems. Offers excellent flexibility allowing the material to be formed easily into intricate details ensuring the roof installation is fully waterproofed. Adhered to suitable substrates using Armourplan PVC Contact Adhesive or Sprayfast PCA Adhesive. IKO ARMOURPLAN D, Mid Grey. IKO ARMOURPLAN D, Slate Grey. IKO ARMOURPLAN G, Light Grey. Guidance for specification option: IKO Armourplan G membrane is a glass tissue reinforced detailing PVC membrane on IKO Armourplan roof systems. The glass tissue reinforcement offers excellent dimensional stability and flexibility allowing the material to form easily into intricate details ensuring the roof installation is fully waterproofed. IKO Armourplan G Detailing PVC Membrane can be adhered to suitable detailing surfaces using IKO Armourplan PVC Contact Adhesive or IKOpro Sprayfast PCA Adhesive. IKO ARMOURPLAN G, Mid Grey. IKO ARMOURPLAN G, Slate Grey. IKO ARMOURPLAN P, Mid Grey. Guidance for specification option: Polyester scrim reinforced membrane for mechanically fastened roofing systems. Offers enhanced mechanical properties over standard PVC membranes thanks to having high polymer content throughout and high performance reinforcement. Suitable for adhered systems bonded using Armourplan contact or Sprayfast PCA adhesive. IKO ARMOURPLAN P, Slate Grey.
Weight	To EN 1849-2, 1650 g/m². Guidance for specification option: This value relates to the Armourplan PSG membrane.
TensileStrength	To EN 12311-2, ≥ 650 N/50 mm. Guidance for specification option: This value relates to the Armourplan PSG membrane.
Elongation at break	To EN 12311-2, ≥ 40%. Guidance for specification option: This value relates to the Armourplan PSG membrane.
Tear resistance	To EN 12310-2, ≥ 150 N. Guidance for specification option: This value relates to the Armourplan PSG membrane.
ShearStrength	To EN 12317-2, ≥ 650 N. Guidance for specification option: This value relates to the Armourplan PSG membrane.
Impact resistance	To EN 12691, ≥ 1100 mm soft; to EN 12691, ≥450 mm hard. Manufacturer guidance This value relates to the Armourplan PSG membrane.
Static load resistance	To EN 12730, ≥ 20 kg. Guidance for specification option: This value relates to the Armourplan PSG membrane.
Dimensional stability	To EN 1107-2, ≤ 0.5%. Guidance for specification option: 6 hours at 80°C. Manufacturer guidance This value relates to the Armourplan PSG membrane.
Flexibility at low temperature	To EN 495-5, ≤ -30°C. Guidance for specification option: This value relates to the Armourplan PSG membrane.
Third-party certification	BBA Agrément Certificate No. 05/4287, CE marked.
Standards	To BS EN ISO 14001, ISO 9001, BES 6001.
