Fully Adhered Single Ply Cold Roof System - IKO Armourplan PSG - 20/25 Year Guarantee
Verified by manufacturer 1 day ago
BBA Agrément Certificate
Certificate type
Single ply adhered cold roof system.
Application
Suitable for adhered roofing applications.
Description
IKO Armourplan systems offer flexible and durable waterproofing solutions across a wide range of roofing applications. With single ply options, specifiers can minimise roof zone depths and enjoy more flexibility with design. IKO Armourplan roofing boasts a fast and safe installation methodology, as no naked flames or frames are involved in the process. IKO Armourplan PSG is adhered onto most common substrates and forms a sleek finish.
Key benefits to your project
- BBA Certified 05/4287.
- Classified BROOF(t4) in accordance with BS EN 13501-5: 2005 fire classification. This enables unrestricted use within Part B4 of the Approved Documents of the Building Regulations (tested under ENV1187). This is based on specific system build-up testing, so please contact IKO for further clarification or refer to the product BBA certificate, where applicable.
- Good UV resistance and durability.
- Good mechanical properties and product performance.
- Efficient and safe installation.
- Secure seam welding quality.
- Aesthetically pleasing finish.
- Complete range of fixings and accessories available.

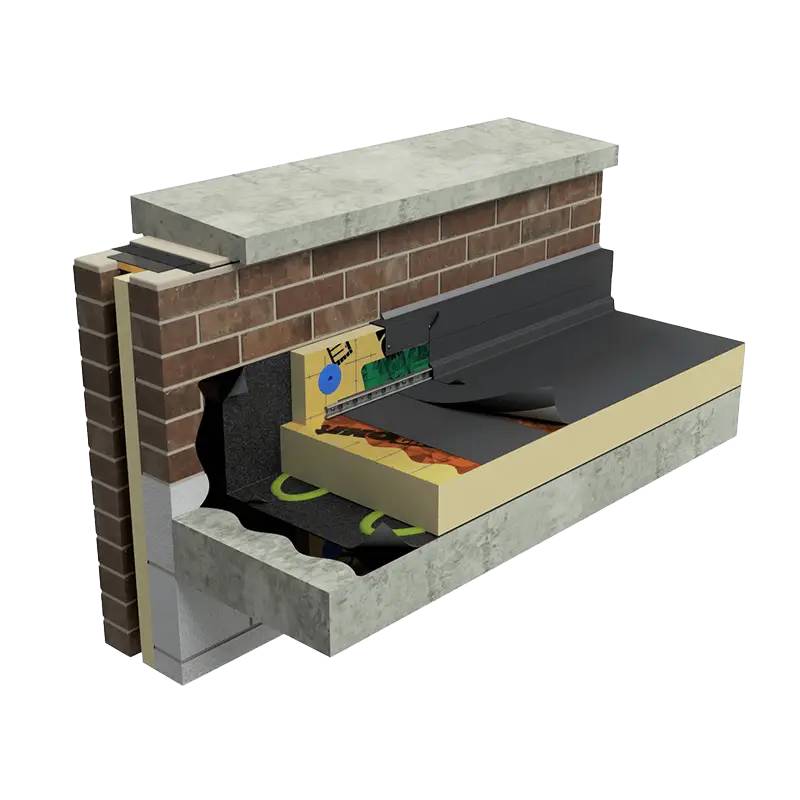

The system includes:
- IKO Armourplan P, D, or G detailing membranes.
- IKO Armourplan PSG is attached with IKO Low foam PU Adhesive.
- Suitable ancillaries, including paving supports, parapets, and vertical outlets, etc.
- Deck by others.
Metal decks must be overboarded with a minimum 12mm plywood/oriented strand board (OSB) to provide continuous support.
General information
Color | Grey |
Material | PVC |
Length | Bespoke |
Width | Bespoke |
Warranty description | 20 year 25 year |
Uniclass | |
CAWS | J42/10 Warm deck roof covering J42/110 Warm deck roof covering |
Product range |
Specification data - Single layer sheet warm roof covering systems
Classification data | |
Waterproof covering | |
Type | IKO Armourplan PSG, mid grey. IKO Armourplan PSG, slate grey. Manufacturer guidanceA 1.2 mm thick glass tissue reinforced polyester fleece-backed PVC single ply roofing membrane. Used in a wide range of roofing applications on both flat and sloping roofs. Suitable for both new build and refurbishment installations, including specialist applications such as simulated metal roofs. Can be adhered onto most common substrates using Spectrabond Low Foaming PU adhesive or IKOpro Sprayfast FMA adhesive. Forms a sleek finish. |
Attachment | IKOpro Low Foaming PU adhesive. IKOpro Sprayfast FMA. |
Joints | Hot Air Welded. |

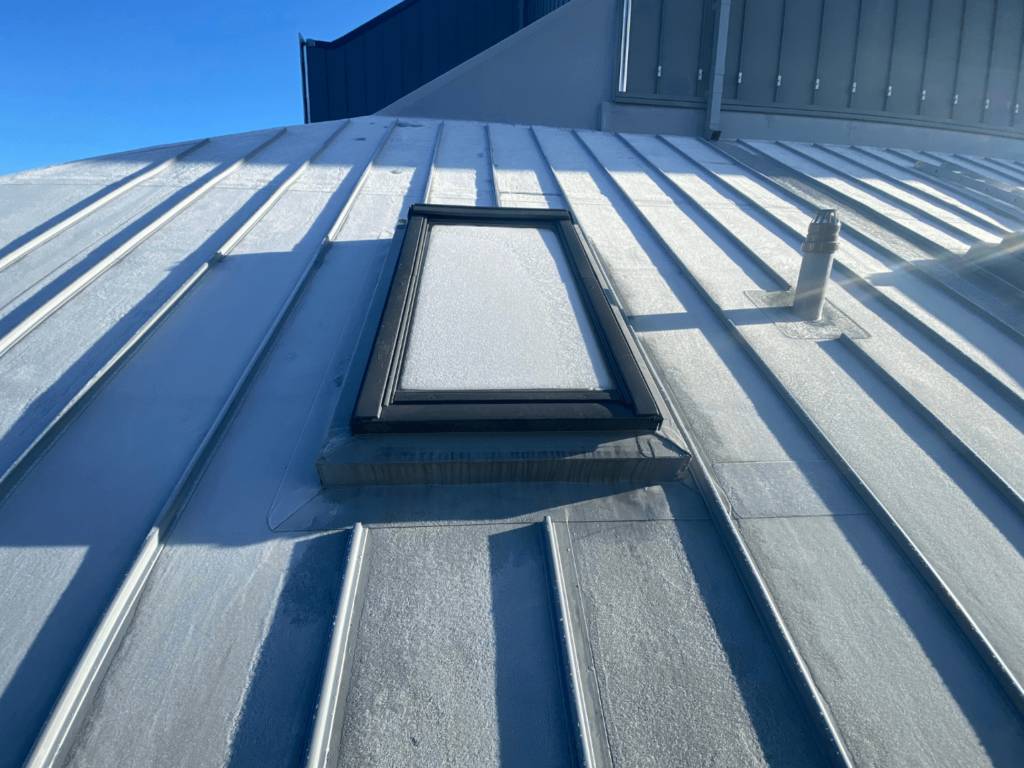

Accessories | None. Armourplan standing seam profile, mid grey. Guidance for specification option: Armourplan PVC Standing Seam Profile is a preformed profile used to simulate a metal standing seam joint. The profile is manufactured from PVC and is hot air welded to the installed Armourplan Membrane at a layout specified by the client Armourplan standing seam profile, slate grey. |
Detailing/ Vertical work | IKO ARMOURPLAN D, Light Grey. Guidance for specification option: Non-reinforced PVC membrane for detailing on Armourplan roof systems. Offers excellent flexibility allowing the material to be formed easily into intricate details ensuring the roof installation is fully waterproofed. Adhered to suitable substrates using Armourplan PVC Contact Adhesive or Sprayfast PCA Adhesive. IKO ARMOURPLAN D, Mid Grey. IKO ARMOURPLAN D, Slate Grey. IKO ARMOURPLAN G, Light Grey. Guidance for specification option: IKO Armourplan G membrane is a glass tissue reinforced detailing PVC membrane on IKO Armourplan roof systems. The glass tissue reinforcement offers excellent dimensional stability and flexibility allowing the material to form easily into intricate details ensuring the roof installation is fully waterproofed. IKO Armourplan G Detailing PVC Membrane can be adhered to suitable detailing surfaces using IKO Armourplan PVC Contact Adhesive or IKOpro Sprayfast PCA Adhesive. IKO ARMOURPLAN G, Mid Grey. IKO ARMOURPLAN G, Slate Grey. IKO ARMOURPLAN P, Mid Grey. Guidance for specification option: Polyester scrim reinforced membrane for mechanically fastened roofing systems. Offers enhanced mechanical properties over standard PVC membranes thanks to having high polymer content throughout and high performance reinforcement. Suitable for adhered systems bonded using Armourplan contact or Sprayfast PCA adhesive. IKO ARMOURPLAN P, Slate Grey. |
Weight | To EN 1849-2, 1650 g/m². Guidance for specification option: This value relates to the Armourplan PSG membrane. |
TensileStrength | To EN 12311-2, ≥ 650 N/50 mm. Guidance for specification option: This value relates to the Armourplan PSG membrane. |
Elongation at break | To EN 12311-2, ≥ 40%. Guidance for specification option: This value relates to the Armourplan PSG membrane. |
Tear resistance | To EN 12310-2, ≥ 150 N. Guidance for specification option: This value relates to the Armourplan PSG membrane. |
ShearStrength | To EN 12317-2, ≥ 650 N. Guidance for specification option: This value relates to the Armourplan PSG membrane. |
Impact resistance | To EN 12691, ≥ 1100 mm soft; to EN 12691, ≥450 mm hard. Manufacturer guidanceThis value relates to the Armourplan PSG membrane. |
Static load resistance | To EN 12730, ≥ 20 kg. Guidance for specification option: This value relates to the Armourplan PSG membrane. |
Dimensional stability | To EN 1107-2, ≤ 0.5%. Guidance for specification option: 6 hours at 80°C. Manufacturer guidanceThis value relates to the Armourplan PSG membrane. |
Flexibility at low temperature | To EN 495-5, ≤ -30°C. Guidance for specification option: This value relates to the Armourplan PSG membrane. |
Third-party certification | BBA Agrément Certificate No. 05/4287, CE marked. |
Standards | To BS EN ISO 14001, ISO 9001, BES 6001. |
Sustainability data
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | PVC |
Product certifications
BBA Agrément Certificate
BBA Certificate - IKO Armourplan PSG
Literature
Literature type
Brochure - IKO PLC (UK) ESG Report
Brochure - IKO Armourplan Systems

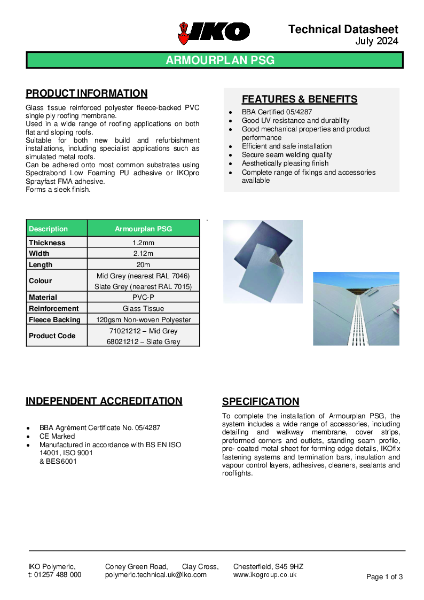

Technical Data Sheet (TDS) - IKO Armourplan PSG
