Mechanically Fixed Single Ply Warm Roof System - IKO Armourplan P - 20/25 Year Guarantee - Warm roof system
Verified by manufacturer 4 months ago
Single ply mechanically fastened roof covering system.
Application
- Used on both flat and sloping roofs and is suitable for both new build and refurbishment installations.
- Completely UV stable throughout.
- Mechanically fastened in the overlap using IKOfix Membrane Tubes and IKOfix Fixings into the deck.
- Suitable for loose laid ballasted systems.
- Armourplan P is also used as the upstand detailing membrane on all Armourplan P/PSG systems.
Description
Single ply mechanically fastened roof covering system.
Features and benefits:
- BBA Certified 05/4287.
- Good UV resistance and durability.
- Good mechanical properties and product performance.
- Efficient and safe installation.
- Secure seam welding quality.
- Aesthetically pleasing finish.
- Complete range of fixings and accessories available.

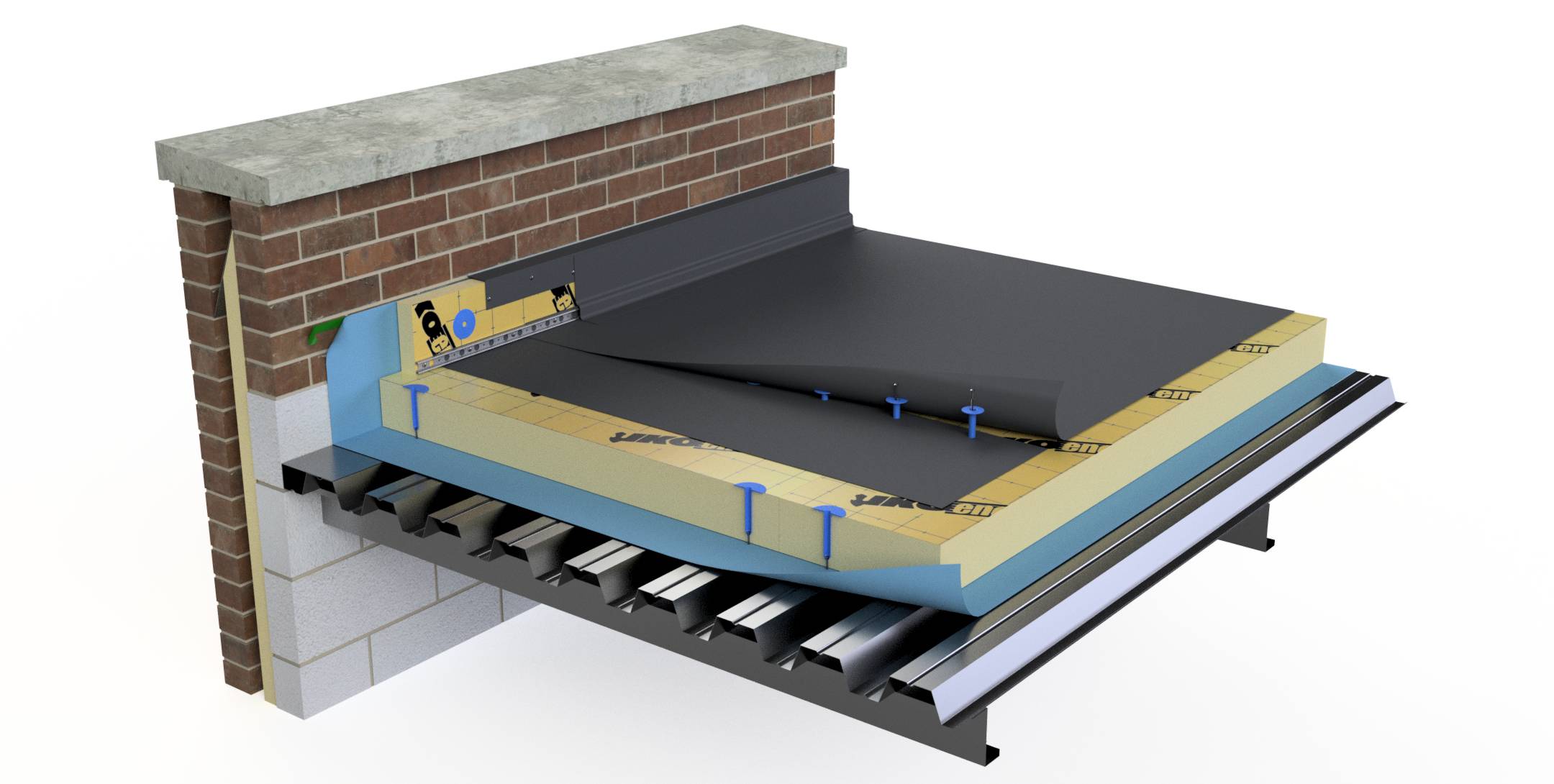

System includes:
- IKO Armourplan P, D or G detailing membranes.
- Enertherm GOLD, enerthern MW, EPS and PIR/EPS Hyrbid insulation.
- IKO Spectravap PE AVCL.
- Suitable ancillaries including paving supports, parapet and vertical outlets etc.
- Deck By others.
General information
Color | Grey |
Material | PVC |
Length | Bespoke |
Width | Bespoke |
Height | 1.2 mm |
Warranty description | 20 year 25 year |
Uniclass | |
CAWS | J42/10 Warm deck roof covering J42/110 Warm deck roof covering |
Product range |
Specification data - Single layer sheet warm roof covering systems
Air and vapour control layer | |
Type | IKO Spectravap PE AVCL.Guidance for specification option: Spectravap is a 0.3 mm thick polyethylene vapour control layer (VCL), suitable for use on most IKO Polymeric mechanically fastened systems. |
Attachment | Loose laid with 150 mm side and end laps taped with Spectravap jointing tape. |
Insulation | |
Type | IKO enertherm Gold Insulation, 2400 x 1200 mm.Guidance for specification option: Thickness: 30, 50, 60, 80, 100, 120, 140, 150 mm. Consult literature and insert requirements. IKO enertherm Gold Insulation, 1200 x 1200 mm.Guidance for specification option: Thickness: 30, 40, 50, 70, 80, 100, 120,140 mm. Consult literature and insert requirements. IKO enertherm MW.Guidance for specification option: A dual-density stone wool insulation board. It is used for the thermal insulation in a variety of warm flat roofing system applications where a non-combustible and/ or acoustic insulation solution is required. Width: 1200 mm. EPS.Guidance for specification option: EPS insulation is not compatible with PVC. If the EPS is directly below the PVC membrane an IKOtex 300 gsm separation fleece must be installed between the EPS and PVC membrane. PIR/EPS Hybrid.Manufacturer guidanceIKO enertherm GOLD is a 100 % CFC, HCFC or HFC-free insulation board with a rigid polyisocyanurate foam core, clad on both sides with a multi-layer gastight aluminium complex. This high-quality rooftop insulation consists of no fewer than seven layers, combined into a single complex. It is tested under extreme conditions in respect of water absorption, mechanical properties, corrosion resistance and emissivity. |
Attachment | Mechanically fastened in accordance with IKO wind load calculation using IKOfix Fasteners and Thermally Broken Insulation Tubes. |
Separating layer | Not required.Spectratex 300 gsm separation fleece. |
Waterproof covering | |
Type | IKO Armourplan P, mid grey.IKO Armourplan P, slate grey.Manufacturer guidancePolyester scrim reinforced membrane for mechanically fastened roofing systems. Offers enhanced mechanical properties over standard PVC membranes thanks to having high polymer content throughout and high performance reinforcement. Suitable for adhered systems bonded using Armourplan contact or Sprayfast PCA adhesive. |
Attachment | Mechanically fastened in accordance with IKO wind load calculation using IKOfix Fasteners and Membrane Tubes. |
Joints | Hot Air Welded. |
Accessories | None.Armourplan standing seam profile, mid grey.Guidance for specification option: Armourplan PVC Standing Seam Profile is a preformed profile used to simulate a metal standing seam joint. The profile is manufactured from PVC and is hot air welded to the installed Armourplan Membrane at a layout specified by the client Armourplan standing seam profile, slate grey. |
Detailing/ Vertical work | IKO ARMOURPLAN D, Light Grey. Guidance for specification option: Non-reinforced PVC membrane for detailing on Armourplan roof systems. Offers excellent flexibility allowing the material to be formed easily into intricate details ensuring the roof installation is fully waterproofed. Adhered to suitable substrates using Armourplan PVC Contact Adhesive or Sprayfast PCA Adhesive. IKO ARMOURPLAN D, Mid Grey. IKO ARMOURPLAN D, Slate Grey. IKO ARMOURPLAN G, Light Grey. Guidance for specification option: IKO Armourplan G membrane is a glass tissue reinforced detailing PVC membrane on IKO Armourplan roof systems. The glass tissue reinforcement offers excellent dimensional stability and flexibility allowing the material to form easily into intricate details ensuring the roof installation is fully waterproofed. IKO Armourplan G Detailing PVC Membrane can be adhered to suitable detailing surfaces using IKO Armourplan PVC Contact Adhesive or IKOpro Sprayfast PCA Adhesive. IKO ARMOURPLAN G, Mid Grey. |
Weight | To EN 1849-2, 1700 g/m². Guidance for specification option: This value relates to the Armourplan P membrane. |
TensileStrength | To EN 12311-2, ≥ 1500 N/50 mm. Guidance for specification option: This value relates to the Armourplan P membrane. |
Elongation at break | To EN 12311-2, ≥ 15%. Guidance for specification option: This value relates to the Armourplan P membrane. |
Tear resistance | To EN 12310-2, ≥ 150 N. Guidance for specification option: This value relates to the Armourplan P membrane. |
ShearStrength | To EN 12317-2, ≥ 1200 N. Guidance for specification option: This value relates to the Armourplan P membrane. |
Impact resistance | To EN 12691, ≥ 1100 mm soft; to EN 12691, ≥450 mm hard. Manufacturer guidanceThese values relate to the Armourplan P membrane. |
Static load resistance | To EN 12730, ≥ 20 kg. Guidance for specification option: This value relates to the Armourplan P membrane. |
Dimensional stability | To EN 1107-2, ≤ 0.5%. Guidance for specification option: 6 hours at 80°C. Manufacturer guidanceThis value relates to the Armourplan P membrane. |
Flexibility at low temperature | To EN 495-5, ≤ -30°C. Guidance for specification option: This value relates to the Armourplan P membrane. |
Sustainability data
Material | PVC |
