Mechanical Lock (EL160)

Name: Mechanical Lock (EL160)
Brand: Abloy UK
SKU: ha42PQJa9cs4aNBruuKLHe

Verified by manufacturer over a year ago

Abloy UK

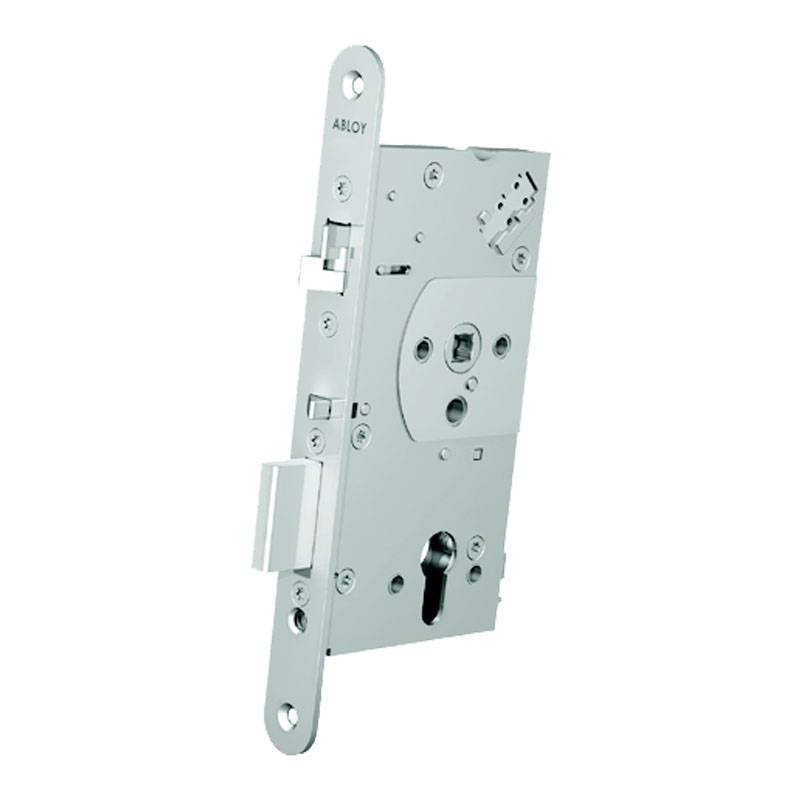

Mechanical escape lock.

Jump to:

+44 (0)1902 364500 Website

Application

For situations where safe escape is required.

Description

Supplied complete with EA322 satin stainless steel strike plate, this lock is intended for situations where safe escape is required. The solid construction, dead bolt and self-latching mechanism of the lock ensures secure and positive locking of the door.

Features and benefits:

Operation is with a key externally and an inside lever handle for egress to BS EN179.
Lock case can be fitted with an Abloy panic bar to conform to BS EN 1125.
Fire resistant.
Complies with BS EN 12209 and SKG ®179 / 1125.
Exit function adjustable on site.
Tested in excess of 200 000 operations.

General information

Finish	Satin
Material	Steel
Length	235 mm
Width	20 mm 24 mm

Uniclass	Pr_30_36_08_36 Door locksPrimary
CAWS	P21/24 Door locks P21/515 Door locks

Specification data - Door locks

Description	Mechanical escape lock.
Manufacturer	Abloy UK.
Standard	To BS EN 12209.
Classification grades (minimum)	-
Category of use	BS EN 1192, grade 3.
Durability	BS EN 12209, grade S.
Door mass and closing force	BS EN 12209, grade 8.
Suitability for use on fire resisting and/ or smoke control doorset	BS EN 12209, grade D.
Corrosion resistance and temperature	BS EN 12209, grade L.
Security and drill resistence	BS EN 12209, grade 6.
Lock type	Cylinder mortice lock.
Backset	55 mm. 60 mm. 65 mm. 80 mm. 100 mm.
Material and finish	Satin stainless steel.
Fasteners for hardware	Fasteners for hardware.
