This product is no longer available

Description

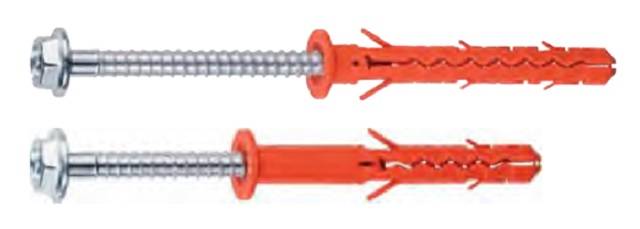

A4 (1.4401 [316] grade) austenitic stainless steel anchor for fixing aluminium rainscreen brackets to brick, block, concrete, masonry and sandstone.

Nylon plug design benefits include:

  • 1. Expansion zone for applications in concrete and solid brick.
  • 2. Wings: Stops the plus from rotating in the hole.
  • 3. Knock-in protection: Prevention of premature expansion while installing.

Warranty:

Up to 40 years (period to be confirmed and agreed specific to the project).

Approvals:

MBRK stainless steel anchor is ETA approved (ETA number 15/0068) and are CE marked. Technical performance in terms of tensile and shear are all documented in the ETA to enable the engineer to determine safe working loads in accordance with EuroNorms.

Fire Resistance test certification F90 for fastening of facade systems.

General information
Material

Plug manufactured from high quality polyamider PA6

Concrete anchor manufactured from A4 (1.4401 [316] grade) austenitic stainless steel and are therefore suitable for all corrosivity categories; C1–C5 as defined in BS EN 12944

Stainless steel: Grade 1.4401 (316)

Uniclass 2015
Self-drilling screws (Pr_20_29_76_76)Primary
Specification data - Self-drilling screws
Product Reference

MBRK - A4

Anchor length

S4-H18-10 x 60

S4-H18-10 x 80

S4-H18-10 x 100

Standard product features

Material:

  • Plug manufactured from high quality polyamider PA6.
  • Concrete anchor manufactured from A4 (1.4401 [316] grade) austenitic stainless steel and are therefore suitable for all corrosivity categories; C1–C5 as defined in BS EN 12944.
  • Stainless steel: Grade 1.4401 (316).

Product Options

Anchor length:

On-site pull out testing recommended.

Material:

Consult manufacturer for suitability with swimming pool applications.
