MBI GeoCeramica Exterior Porcelain-Concrete Paving - Concrete-Porcelain Paving Tile
Verified by manufacturer 6 months ago
GeoCeramica Concrete Look - Cendre Rock
GeoCeramica Concrete Look - Cendre Rock
CO2-aware Certificate, Level 3
Certificate type
A ceramic tile inextricably linked to a water-permeable underlay for contemporary outdoor paving.
Application
This product is appropriate for creating defined paving areas that look great and are safe. GeoCeramica is an outdoor product and can be used in both residential and commercial settings.
Description

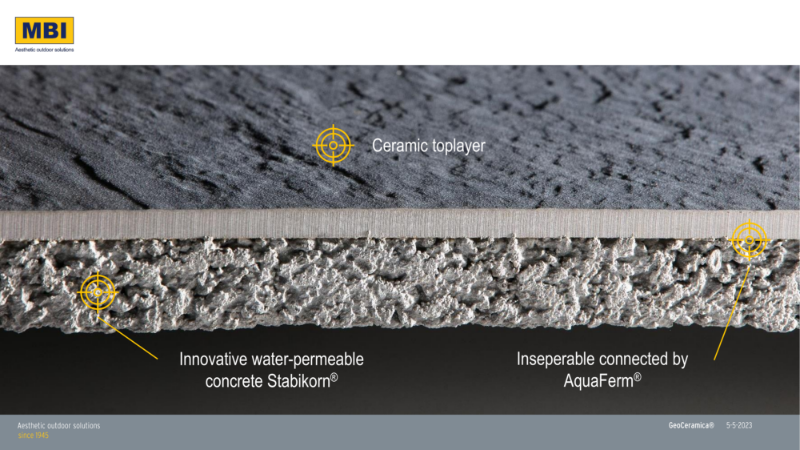

The GeoCeramica system combines two different materials, into one paving tile. The upper surface layer consists of a ceramic tile (10 mm thick) and is available in a wide range of colours and styles. The lower layer (30 mm thick) is a water permeable drainage layer made from a concrete mix.
This layer acts as a load bearing foundation, meaning GeoCeramica can be laid on sand. The two layers are connected with a binding paste. GeoCeramica can be laid on any type of base.
Features and benefits:
- Wide choice in designs and sizes
- Low maintenance and easy to use
- Long lifespan
- Suitable for any type of soil
- Relatively simple installation, can be laid straight on a base of sand
- CE marked
General information
Color | Other Guidance for specification option: Various colours available, consult manufacturer. |
Finish | Anti-skid |
Material | Ceramic Concrete |
Shape | Square |
Length | 600 mm 1200 mm |
Width | 300 mm 600 mm |
Height | 40 mm |
Uniclass | |
CAWS | M40/5 Tiling to M40/110 Tiling to |
Specification data - Ceramic tiles
Standard | To EN1339:2003 and EN12004:2017. |
Colour | Cendre Rock. |
Finish | Porcelain. |
Size | 600 x 600 mm. |
Thickness | 40 mm. |
Surface | Even, closed. |
Slip potential | |
Slip resistance value (SRV)/ pendulum test value (PTV) (minimum) | |
Standard | R11. |
Top layer | 10 mm thick ceramic tile. Guidance for specification option: Available in a wide range of colours and styles, consult manufacturer. |
Underlayer | 30 mm thick water-permeable concrete mix. |
Weather resistance | High. |
Wear resistance | High. |
Weight | 87.5 kg per m². |
Binder | Binding paste. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Netherlands |
Country of product manufacture | Netherlands |
Recyclability | 100% |
Third party certifications
CO2-aware Certificate, Level 3
KIWA C02 Aware Certificate, Level 3
Literature
MBI GeoCeramica Exterior Porcelain-Concrete Paving Product Catalogue 1
MBI GeoCeramica Exterior Porcelain-Concrete Paving Product Catalogue 2
