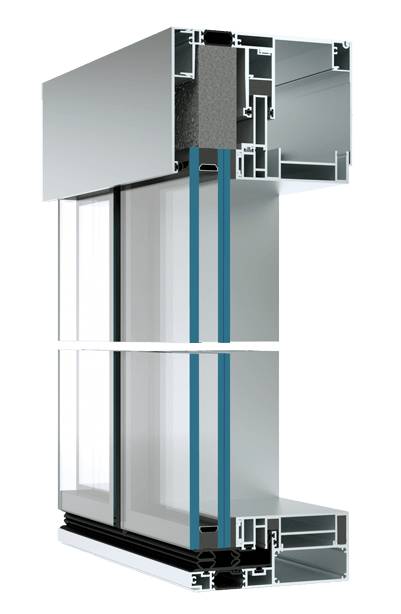

Aluminium semi-unitized facade system.
Aluminium semi-unitized system used as window walling between slabs, manufactured using EN AW-6060 T66 aluminium, finished with anodic oxide coatings for corrosion protection. Meets the requirements for Qualanod quality label, or with a Qualicoat-approved polyester powder coating.
Aluminium profiles are produced in the process of mechanical working of the aluminium alloy in accordance with the following standards:
Glazing gaskets are manufactured from synthetic rubber EPDM in accordance with DIN 7863 and working standard ISO 3302-1. The gaskets are joined in the process of gluing or vulcanizing.
Steel sheets are protected against corrosion with protective zinc or powder coating.
Steel brackets are manufactured from steel sheet and protected against corrosion; points of contact between steel and aluminium elements are isolated.
Mineral wool applied to insulate lintel/ apron areas, attics, etc. authorized for use in building industry, according to the design.
