MB-80 Office Internal Partition System

Application

Internal partition double-glass walling system designed to fabricate internal partitions in offices and other public facilities.

Description

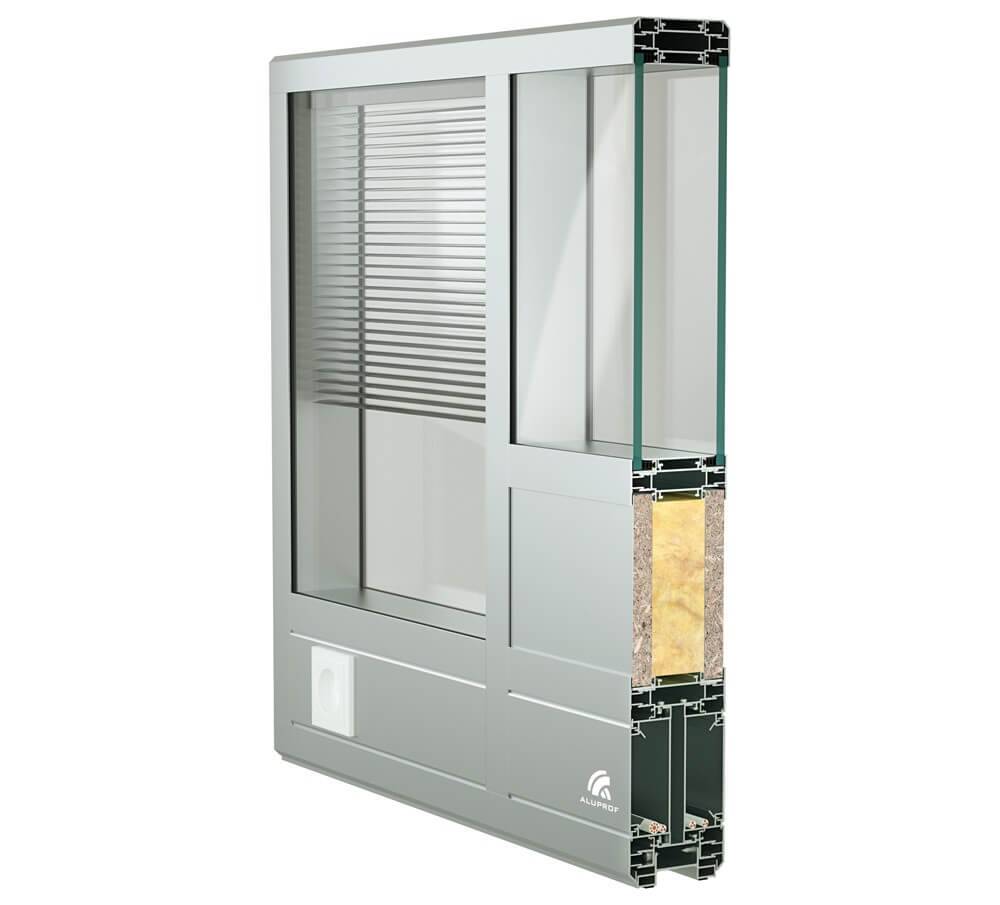

This internal partition double-glass walling system is designed to fabricate internal partitions in offices and other public facilities.

The system enables the use of different types of infills, transparent or obscure, with internal louvres and electrical components, and office equipment. These walls are especially suitable for buildings where high sound insulation is required.


The basic feature of this construction is its versatility in arranging office space, combined with the simplicity of execution of all the works on site.


Features and benefits:

  • Good sound insulation in office spaces – noise reduction of 50 dB, depending on the type of infill.
  • Integrated partitions with electrical fittings.
  • Different types of infill available including 4–14 mm-thick panes, 16–18 mm-thick furniture boards and gypsum plaster boards.
  • Depth and construction of the basic profiles enable installation of intra-pane louvres.
  • Can be combined with a standard, 75 mm-thick gypsum plaster boards.
  • Option to fabricate 80 and 92 mm walls.
  • Custom division of space, angle of refraction within the range 90–180°.
  • Simple fabrication and installation; direct on-site pre-fabrication an option.
  • Cables inside the wall, installation of standard power sockets.
  • Can be combined with MB-45 wall or MB-45 (centrally or flushed with the plane of the wall), with MB-45S door (flushed with the plane of the wall and with non-protruding hinges) and MB-45 OFFICE (with centrally installed leaf, flushed with the plane of the wall, plus non-protruding hinges).
  • Maximum development height: 5.5 m.

General information

Uniclass 2015

Pr_25_71_57_60 Partition panelsPrimary

CAWS

K30/10 Relocatable partition system

K30/130 Relocatable partition system

Specification data - Partition panels Enhanced data

Third party accreditation

Consult manufacturer for details.

-

Unit size

-

Partition height (nominal)

Consult manufacturer for details and insert requirements.

-

Deflection allowance (maximum)

-

Head

Consult manufacturer for details and insert requirements.

-

Floor

Consult manufacturer for details and insert requirements.

-

Verticals

Consult manufacturer for details and insert requirements.

-

Panel partition type

Consult manufacturer for details and insert requirements.

-

Framing, junctions, corners

Consult manufacturer for details and insert requirements.

-

Solid panels

-

Type

Consult manufacturer for details and insert requirements.

Different types of infill available including 16–18 mm-thick furniture boards and gypsum plaster boards.

-

Finish and colour

Consult manufacturer for details and insert requirements.

-

Joint treatment

-

Type

Consult manufacturer for details and insert requirements.

-

Finish and colour

Consult manufacturer for details and insert requirements.

-

Glazed panels

-

Type

Consult manufacturer for details and insert requirements.

Different types of infill available including 4–14 mm-thick panes.

-

Integral blinds

Required.

Consult manufacturer for details and insert requirements.

Not required.

Additional features

None.

Manifestation.

Consult manufacturer for details and insert requirements.

Door arrangement

-

Type

Consult manufacturer for details and insert requirements.

-

Door frames

Consult manufacturer for details and insert requirements.

-

Door leafs

-

Type

Consult manufacturer for details and insert requirements.

-

Vision panels

Required.

Consult manufacturer for details and insert requirements.

Not required.

Additional apertures

Consult manufacturer for details and insert requirements.

-

Perimeters, skirtings, sills

Consult manufacturer for details and insert requirements.

-

Trims

Consult manufacturer for details and insert requirements.

-

Hardware

Consult manufacturer for details and insert requirements.

-

Seals

Consult manufacturer for details and insert requirements.

-

Other features

Consult manufacturer for details and insert requirements.

-

Product Reference

MB-80 Office Internal Partition System

Configuration

As drawing.

Various configuration options are available; consult literature for details and insert requirements or alternatively add a drawing reference of the configuration required.

To BS 5234-2

Consult manufacturer for details and insert requirements.

Reaction to fire rating (for rateable components)

Consult manufacturer for details and insert requirements.

Accessible design

Consult manufacturer for details and insert requirements.
