MB-59 Slide And MB-59 Slide HI Sliding Doors
Application

The system can be used in various types of buildings: individual buildings, hotels or apartments.

Description

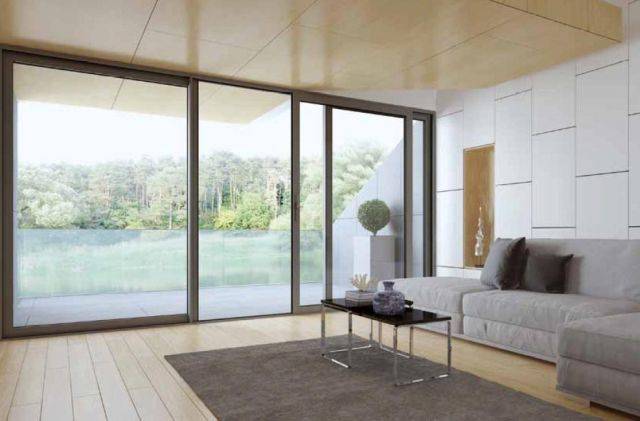

MB-59 Slide system has been designed to fabricate thermally insulated sliding doors which are to be integrated in masonry walls, aluminium curtain walls, winter gardens or window walling. Sliding doors, especially large ones, can make living space visually bigger by combining it with the external terrace or garden.

In terms of thermal insulation, MB-59 Slide profiles have two different variants: ST and HI. The range of available profiles includes two- and three-rail frames. A wide range of glazing enables the use of double and triple glazing units, including safety and sound insulation units.

Features and benefits:

  • Door leaves: Height of up to 2600 mm, width of up to 1800 mm and weight of up to 160 kg (maximum).
  • Slender and robust, three-chamber profiles with insulating chamber equipped, with wide thermal breaks in the central part.
  • Two- or three-rail frames that enable the fabrication of doors with wide clear passage size.
  • Large glass thickness to be fitted in the door leaves (up to 42 mm), to bring flexibility in choosing the appropriate glass.
  • Possibility to use most of the sliding door hardware available on the market.
  • Doors can be mounted individually or as part of larger constructions, i.e. mullion and transom curtain walls or winter gardens.
  • Can make the living space visually bigger, especially when combined with external terraces or gardens.
  • Simplified construction which reduces time and cost.
  • Straightforward construction technology to reduce time and cost of fabrication.
  • Compatibility with other Aluprof systems – possibility to use common components. Consult manufacturer for details.

Performance:

  • Air permeability to EN 1026:2001 and EN 12207:2001: Class 3.
  • Wind load resistance to PN-EN 12210:2001: Class C3.
  • Watertightness to PN-EN 12208:2001: Class 6A.
  • Thermal insulation (Uf) from 1.9 W/(m²K).

Applications:

The system can be used in various types of buildings: individual buildings, hotels or apartments.

General information

Uniclass 2015

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/520 Sliding doors

Specification data - Sliding door and partition sets Enhanced data

Product Reference

MB-59 Slide Sliding Door

MB-59 Slide HI Sliding Door

Frame and architraves

-

Type

Two-rail frame

Three-rail frame

Glazing/ Infill details

-

Thickness

10.5–42 mm available.

Standard product features

Technical characteristics:

  • Frame depth: 120 mm (two rail profile), 199 mm (three-rail profile).
  • Leaf depth: 59 mm.
  • Frame width (seen from the outside): 44 mm (minimum).
  • Leaf width (seen from the outside): 83.5 mm (minimum).
