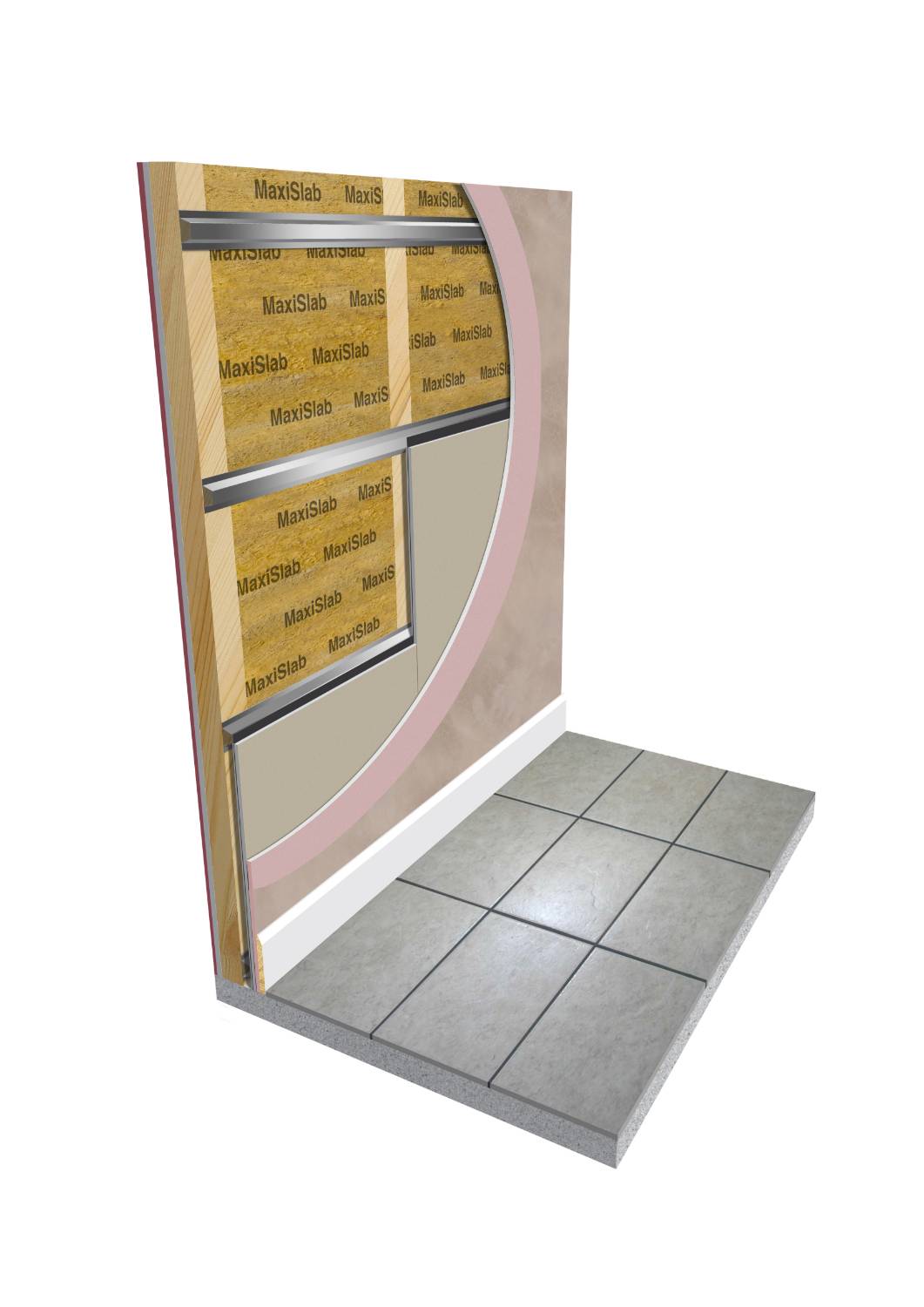

Maxiboard Timber Stud Specification - Wall Lining
Verified by manufacturer 23 days ago
Alcumus SafeContractor
Certificate type
High performance acoustic wall system designed to meet Building Regulations Approved Document E and increase comfort / privacy in domestic and commercial buildings.
Application
- Suitable for refurbishment, conversion and new build projects.
- Suitable for domestic, commercial and industrial environments.
- Maxiboard can be applied to most existing or newly constructed timber stud wall constructions to help meet Building Regulations Approved Document E or just to improve domestic comfort/ privacy.
Description
Maxiboard is an extremely high performance and versatile acoustic building board. Maxiboard can be used as an alternative to plasterboard to dramatically increase the acoustic performance of existing and newly constructed walls and ceilings.
The Maxiboard Timber Stud Partition Specification can be used in both new build and retrofit applications to dramatically reduce the transfer of sound through the partition. Whether you need to meet the requirements of Building Regulations Approved Document E or are looking for increased comfort and privacy, Maxiboard will offer the maximum performance in the minimum thickness.
Features and benefits:
- Improves airborne sound insulation performance.
- Meets Building Regulations Approved Document E.
- Extremely durable.
- Excellent low frequency performance.
- Minimal thickness just over 60 mm.
- Noisy neighbour solution.
General information
Color | Other |
Finish | Unfinished |
Material | Gypsum |
Shape | Rectangle |
Length | 1200 mm |
Width | 600 mm |
Height | 17 mm Guidance for specification option: Thickness. |
Uniclass | |
CAWS | K10/409 Gypsum plasterboard (improved sound insulation) |
Specification data - Sound insulation gypsum plasterboards
Thickness (nominal) | 17 mm. |
Edge profile | Shiplap. |
SurfaceSpreadOfFlame | To BS 476-7, Class 1. |
Accessories | SRS Acoustic Sealant. SRS Gripfix. SRS Maxi Resilient Bars. Guidance for specification option: 3000 x 120 x 30 mm. SRS Maxi Screws. Guidance for specification option: 3.9 x 30 mm. |
Acoustic performance | Airborne DnT,w: 54 dB. DnT,w+ Ctr, 45 dB. Guidance for specification option: Dependent on whether Maxiboard use on one or both sides of lightweight blockwork. |
Fire propagation to BS 476-6 | Class 0. |
Reaction to fire | To EN 13501-1, B–s1, d0. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Gypsum |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 58 % |
Third party certifications
Alcumus SafeContractor
SafeContractor Certificate
Alcumus SafeContractor
SafeContractor PQQ Certificate
Literature
SRS Maxiboard Timber Stud Partition Data Sheet
Maxiboard Timber Stud Specification CAD Drawing
Institute of Acoustic Sponsor Certificate
Richard Sherwood MIOA Certificate
