Maxi 60 Ceiling - Ceiling Board

Name: Maxi 60 Ceiling - Ceiling Board
Brand: Sound Reduction Systems Ltd
SKU: sUapE4jGyozu6u5P6qPvyq

Verified by manufacturer 5 months ago

High performance acoustic and fire-rated ceiling system designed to meet Building Regulations Approved Document E without the need for additional floor treatments.

Jump to:

+44 (0)1204 380074 Website

Application

Suitable for refurb, conversion and new build projects performance.
Suitable for domestic, commercial and industrial environments where sound insulation gypsum plasterboards are traditionally used.

Description

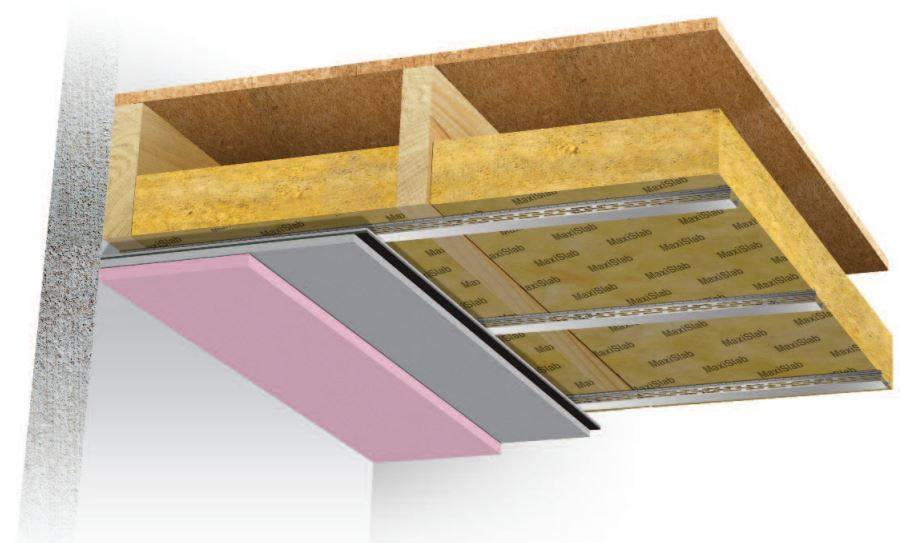

The Maxi 60 ceiling system is ideal in situations where Building Regulations Approved Document E compliance is required along with a one hour fire separation. Simply installed below the joists, the Maxi 60 ceiling system requires no additional floor treatment and, at just over 60 mm deep, minimizes loss of room height.

It utilises Maxiboard, an extremely high performance and versatile acoustic building board. It can be used as an alternative to plasterboard to dramatically increase the acoustic performance of both existing and newly constructed walls and ceilings.

Features and benefits:

Improves impact and airborne sound insulation performance.
Meets Building Regulations Approved Document E.
Achieves one hour fire rating.
Takes screws and nails direct.
Minimal thickness just over 60 mm.
Extremely durable and robust.
Noisy neighbour solution.

General information

Color	Other
Finish	Unfinished
Material	Gypsum
Shape	Rectangle
Length	1200 mm
Width	600 mm
Height	17 mm Guidance for specification option: Thickness.

Uniclass	Pr_25_71_35_80 Sound insulation gypsum plasterboardsPrimary
CAWS	K13/170 Acoustic panel lining K13/170 Acoustic panel lining K10/50 Suspended ceiling system on metal framing K10/25 Ceiling lining on timber K10/245 Ceiling lining on timber K10/220 Proprietary suspended ceiling system

Specification data - Sound insulation gypsum plasterboards

Classification data
Thickness (nominal)	17 mm.
Edge profile	Shiplap.
SurfaceSpreadOfFlame	To BS 476-7, Class 1.
Fire resistance	To BS EN 1365-2, Integrity and insulation: 85 minutes. Load Bearing Capacity: 86 minutes.
Accessories	Maxislab 100. SRS Acoustic Sealant. SRS Gripfix. SRS Maxi Resilient Bars. Guidance for specification option: 3000 x 120 x 30 mm. SRS Maxi Screws. Guidance for specification option: 3.9 x 30 mm.

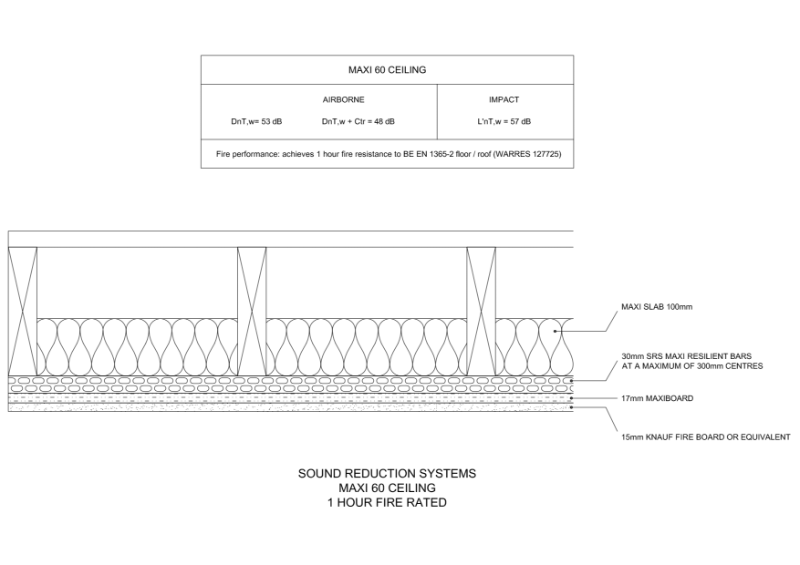

Acoustic performance	Airborne DnT,w: 53 dB. DnT,w+ Ctr: 48 dB. Impact L’nT,w: 57 dB.
Fire propagation to BS 476-6	Class 0.

Sustainability data

Country of material origin	- Manufacturer guidance Varies according to the component parts.
Country of product manufacture	United Kingdom
Material	Gypsum
Recyclability	- Manufacturer guidance Varies according to the component parts.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	58 %
