Maxiboard Independent Stud - Wall Lining
Verified by manufacturer 23 days ago
Alcumus SafeContractor
Certificate type
High performance acoustic wall lining system designed to exceed Building Regulations Approved Document E and increase comfort / privacy in domestic and commercial buildings.
Application
- Suitable for refurbishment, conversion and new build projects performance.
- Suitable for domestic, commercial and industrial environments.

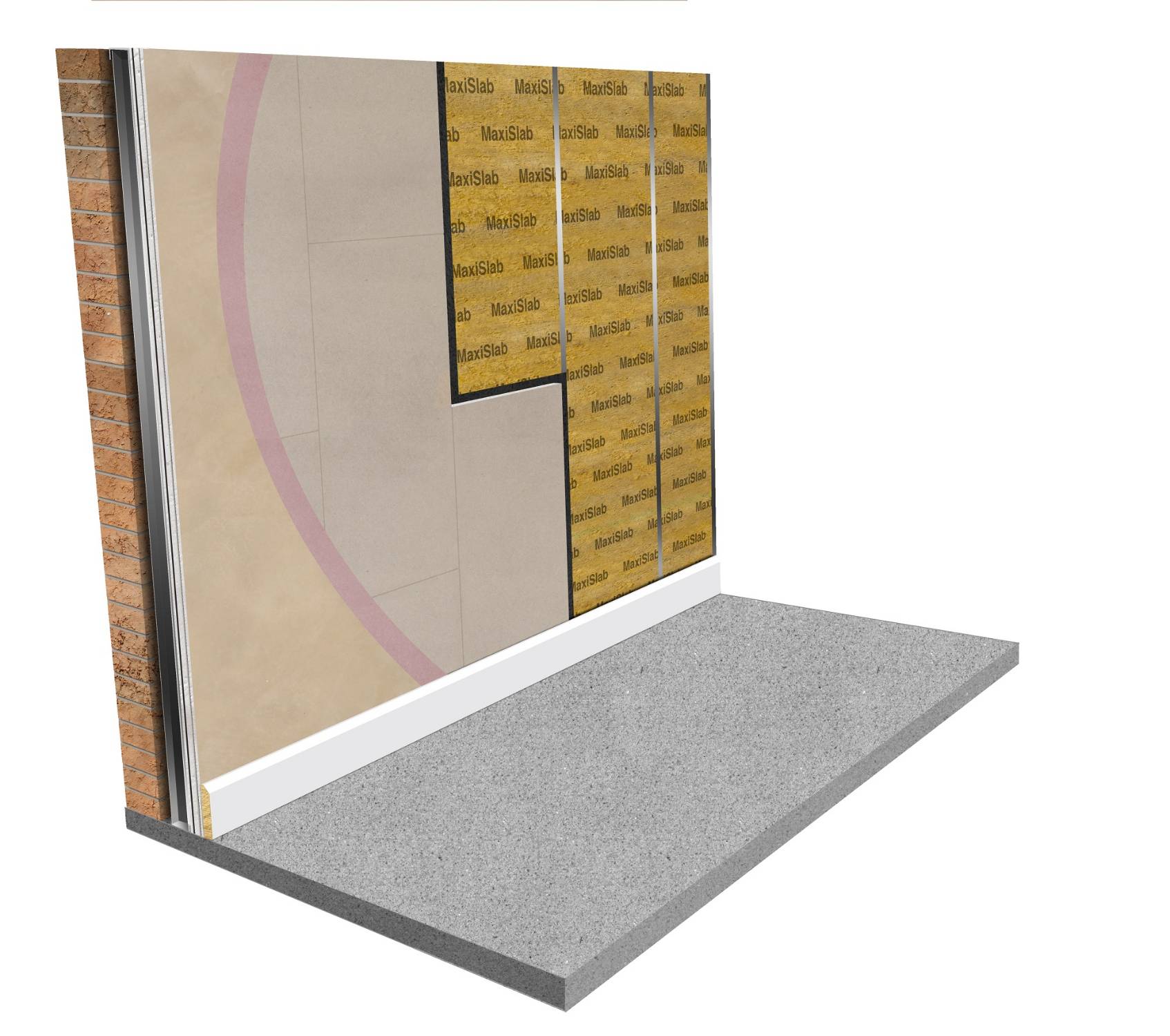

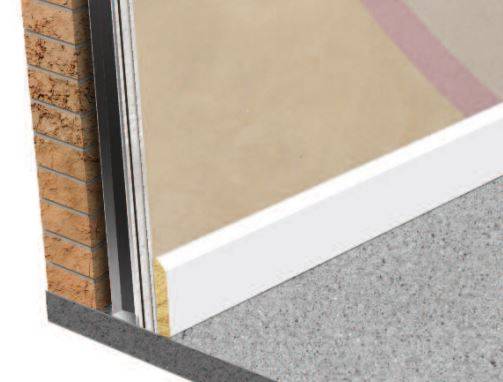

- Maxiboard can be installed on an independent metal stud in front of a masonry wall construction to exceed the acoustic requirements of Approved Document E of the Building Regulations or to significantly improve domestic comfort/ privacy.
Description
Maxiboard Independent Stud utilises Maxiboard, an extremely high performance and versatile acoustic building board. Maxiboard can be used as an alternative to plasterboard to dramatically increase the acoustic performance of existing and newly constructed walls and ceilings.
The Maxiboard Independent Wall Lining Specification is ideal for reducing the sound transfer through separating walls in terrace and semi-detached housing, as well as flats and apartments. Whether to meet the requirements of Building Regulations Approved Document E or increased comfort and privacy, Maxiboard will offer the maximum acoustic performance in the minimum thickness.
Features and benefits:
- Significantly improves airborne sound insulation.
- Exceeds Building Regulations Approved Document E.
- Enhanced low frequency performance compared to conventional materials.
- Minimal thickness 92 mm.
- High performance domestic noisy neighbour solution.
General information
Color | Other |
Finish | Unfinished |
Material | Gypsum |
Shape | Rectangle |
Length | 1200 mm |
Width | 600 mm |
Height | 17 mm Guidance for specification option: Thickness. |
Uniclass | |
CAWS | K10/409 Gypsum plasterboard (improved sound insulation) |
Specification data - Sound insulation gypsum plasterboards
Thickness (nominal) | 17 mm. |
Edge profile | Shiplap. |
SurfaceSpreadOfFlame | To BS 476-7, Class 1. |
Accessories | SRS Acoustic Sealant. SRS Gripfix. SRS Maxi Resilient Bars. Guidance for specification option: 3000 x 120 x 30 mm. SRS Maxi Screws. Guidance for specification option: 3.9 x 30 mm. |
Acoustic performance | Airborne DnT,w: 56 dB. DnT,w+ Ctr: 52 dB. Guidance for specification option: Dependent on whether Maxiboard use on one or both sides of lightweight blockwork. |
Fire propagation to BS 476-6 | Class 0. |
Reaction to fire | To EN 13501-1, B–s1, d0. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Gypsum |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 58 % |
Third party certifications
Alcumus SafeContractor
SafeContractor Certificate
Alcumus SafeContractor
SafeContractor PQQ Certificate
Literature
SRS Maxiboard Independent Wall Lining Data Sheet
Institute of Acoustic Sponsor Certificate
Richard Sherwood MIOA Certificate
