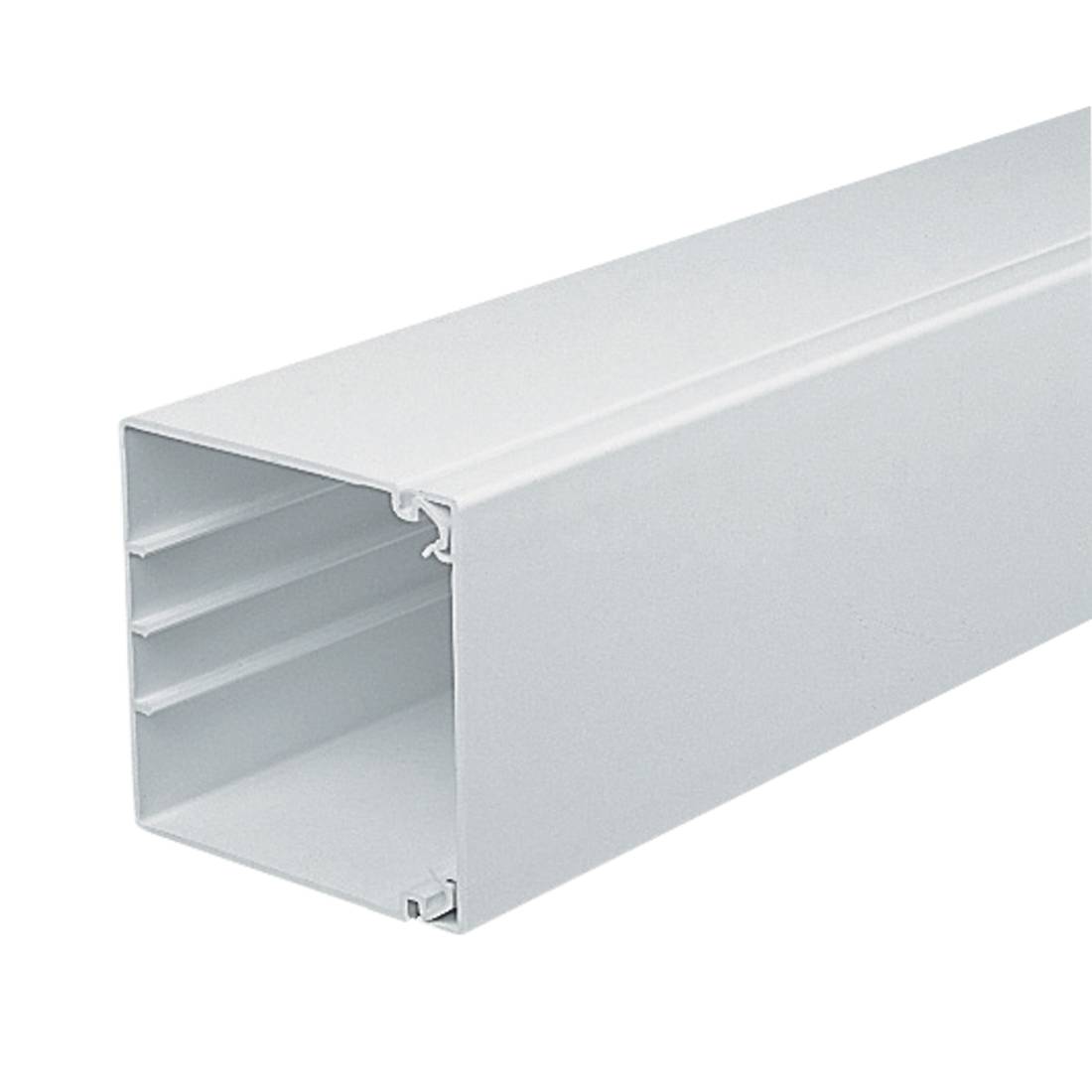

Maxi PVC-U Trunking

Name: Maxi PVC-U Trunking
Brand: Marshall-Tufflex Ltd
SKU: 24JftyUWEAeyDSMTDcZXP1

Verified by manufacturer 1 month ago

Trunking Dado MT Maxi MTRS100

A mid-size feeder and distribution trunking that can be subdivided to carry power and data. Larger sizes can also accommodate wiring accessories.

Jump to:

+44 (0)1424 856600 Website

Application

Suitable to be subdivided to carry power and data as well as larger sizes can accommodate wiring accessories.

Description

A mid-size feeder and distribution trunking.

Features and benefits:

A variety of sizes from 50 x 50 mm to 150 x 150 mm.
Single or divided compartment options.
Self extinguishing and non-flame propagating PVC-U.
Fire clips available to secure cables and prevent premature collapse in the event of a fire.
Manufactured using 100% recycled material.

General information

Color	White Guidance for specification option: White (RAL9003).
Finish	Matt
Material	PVC-U
Shape	Square Rectangle
Length	3000 mm
Width	150 mm 100 mm 75 mm 50 mm
Height	150 mm 100 mm 75 mm 50 mm

Uniclass	Pr_65_70_11_96 Wall and ceiling-mounted cable trunking and ductingPrimary
CAWS	V90/350 Cable trunking and cable ducting for wall and ceiling mounting V90/350 Cable trunking and cable ducting for wall and ceiling mounting

Specification data - Wall and ceiling-mounted cable trunking and ducting

Installation position	Surface mounted on the wall.
Resistance to flame propagation	Non-flame-propagating.
Sizes	100 x 100 mm.
Compartments	Three.
Accessories and fittings	-
Types	Not required. Clear TCCS50 coupler. Spacer – 25mm. Mini trunking adaptor. Flanged coupler. Dividing fillet. 1 gang accessory box. 2 gang accessory box. 1 gang accessory plate. 2 gang accessory plate. Cable retainer. External coupler. Internal coupler. Flanged coupler. End cap. 90° flat angle(clip–on). 90° flat angle (moulded). 90° flat angle (fabricated). 90° data flat angle (fabricated). 135° flat angle (fabricated). Internal 90°bend (clip–on). Internal 90°bend (moulded). Internal 90°bend (fabricated). Internal 90°Data bend (fabricated). Internal 135°Data bend (fabricated). External 90°bend (clip–on). External 90°bend (moulded). External 90°bend (fabricated). External 90°Data bend (fabricated). External 135°bend (fabricated. Flat tee (moulded). Flat tee (fabricated). Data flat tee (gussetted). External edgetee (fabricated). Internal edgetee (fabricated). Flat crossover (fabricated).

Fire performance	- Manufacturer guidance The fire rating for PVC-U is excellent* and PVC-U has all the characteristics required for Fire Escape Time. Highly resistant to ignition. Does little to contribute to the spread of fire and is classified to Building Regs: Class 0. Chars and is self-extinguishing. Has a low rate of smoke production during the early stages of a fire. Acts as an effective barrier to flame spread from malfunctioning electrical components within systems. Does not produce flaming droplets or burning debris.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	PVC-U
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %

BIM objects

Platform	Compatible	Version
Revit	-	1
