Maxi Beam & Block - Acoustic Building Board
Verified by manufacturer 23 days ago
Alcumus SafeContractor
Certificate type

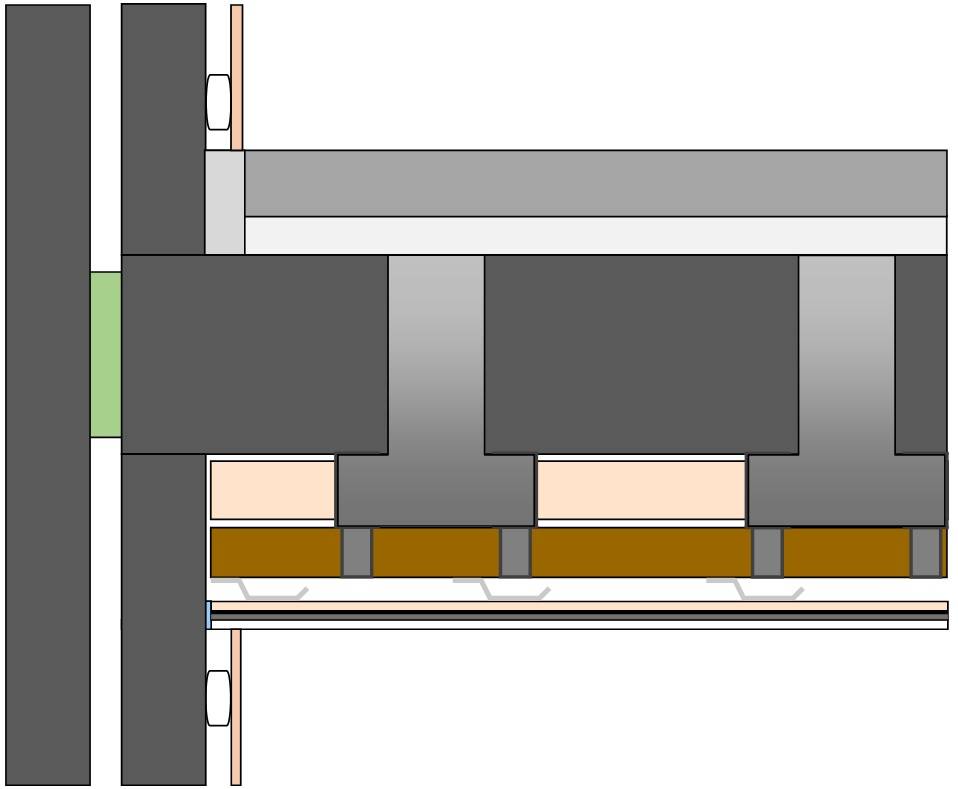

Maxiboard ceiling fitted under a beam and block concrete floor to provide an effective acoustic insulation system.
Application
Maxiboard ceilings can be installed beneath a beam and block floor structure to minimise both airborne and impact noise. It is suitable for use in domestic, commercial and industrial projects.
Description
A high performance acoustic building board fitted under a beam and block concrete floor.
Features and benefits:
- Meets Building Regulations Approved Document E for both airborne and impact noise.
- Achieves one hour fire rating.
- Easy to accommodate different ceiling heights.
- Minimal thickness.
- Extremely durable.
General information
Color | Other |
Finish | Unfinished |
Material | Gypsum PVC Cementitious |
Shape | Rectangle |
Length | 1200 mm |
Width | 600 mm |
Height | 17 mm Guidance for specification option: Thickness. |
Uniclass | |
CAWS | K10/409 Gypsum plasterboard (improved sound insulation) |
Specification data - Sound insulation gypsum plasterboards
Thickness (nominal) | 17 mm. |
Edge profile | Shiplap. |
SurfaceSpreadOfFlame | To BS 476-7, Class 1. |
Accessories | SRS Acoustic Sealant. SRS Gripfix. SRS Maxi Resilient Bars. Guidance for specification option: 3000 x 120 x 30 mm. SRS HP Screws. Guidance for specification option: 3.9 x 30 mm. |
Acoustic performance | Airborne DnT,w: 51 dB. DnT,w+ Ctr: 47 dB. Impact L’nT,w: 52 dB. |
Fire propagation to BS 476-6 | Class 0. |
Fire resistance | Achieves one hour when tested to BS EN 1365-2:2000 (actual |
Sustainability data
Country of material origin | United Kingdom Manufacturer guidanceVaries according to the component parts. |
Country of product manufacture | United Kingdom Manufacturer guidanceVaries according to the component parts. |
Material | Gypsum PVC Cementitious |
Recyclability | Manufacturer guidanceVaries according to the component parts. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 58 % |
