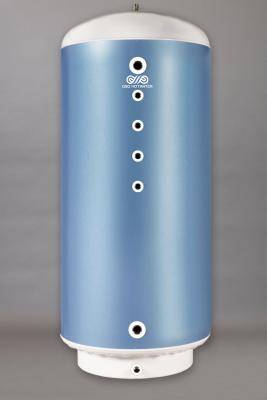

Maxi Accu
Maxi Accu is an ideal accumulator tank for heat pump / solar collectors, ensuring optimal working conditions for the energy source and providing stable temperature to the system.
Suitable as an accumulator tank for heat pump/ solar collectors, ensuring optimal working conditions for the energy source and providing stable temperature to the system.
Maxi Accu is constructed with Everlast™ high-alloy stainless steel in combination with Ultraweld™ technology for optimal corrosion resistance.
It can be used as accumulator for hot/ cold water and can also be used with cooling systems with Armaflex insulation. The insulation and the steel outer casing is diffusion proof to prevent condensation against the cold internal tank surface. Maxi Accu with Armaflex is suitable for room climate systems with refrigerating machines where the unit is the required buffer against the system
Features and benefits:
- High-grade Nanopur™ (MA 400) or Isoflex + vacuum insulated panel (VIP) (MA 600 and MA 1000) insulation.
- Accumulator for hot/ cold water provides stable temperature for system.
- 10 bar design pressure and high corrosion resistance.
Components:
- Flow/ return connection - 4 x 2" female BSP threads (MA 400) / 2 x DN80 PN10 (MA 600) / 2 x DN100 PN10 (MA 1000).
- Other connections - 2 x ½" female BSP threads.
Applications:
Suitable as an accumulator tank for heat pump/ solar collectors, ensuring optimal working conditions for the energy source and providing stable temperature to the system.
| Color | White |
| Material | Stainless steel |
| Shape | Cylinder |
| Size | 580 x 580 x 2085 mm1000 x 1000 x 2100 mm780 x 780 x 1900 mm |
| Uniclass 2015 |
| Product Reference | Maxi Accu |
| Type | MA 400 - SS / PLUS379 L volume, 580 x 2085 mm (diameter x height). MA 600 - SS / PLUS550 L volume, 780 x 1900 mm (diameter x height). MA 1000 -SS / PLUS885 L volume, 1000 x 2100 mm (diameter x height). |
| Armaflex insulation | Not requiredRequiredFor use with cooling systems. |
| Standard product features | Energy rating: C. |
| Product Options | Type: - MA 400 - SS / PLUS:
- MA 600 - SS / PLUS:
- MA 1000 - SS / PLUS:
|
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 Revit | - | 1 | 2.1 |
 IFC | - | 1 | 2.1 |
