Max Compact Resistance 2

Fundermax GmbH Variant:

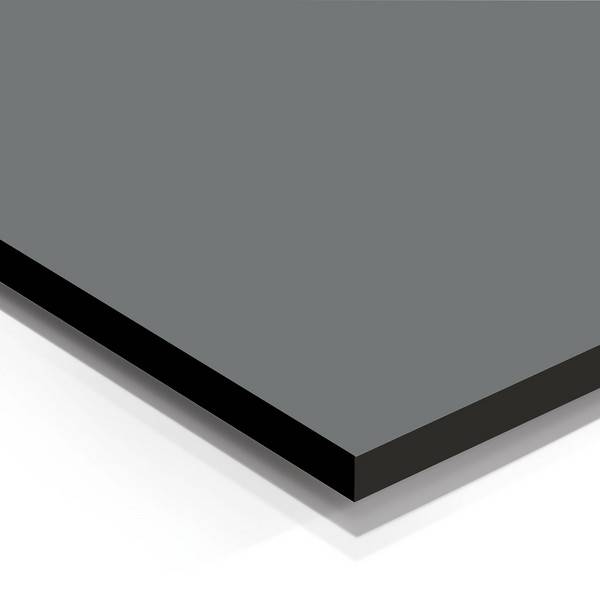

High-pressure laminate panel for interior use.

Jump to:
+44 (0)7564 665048 www.fundermax.at

Application

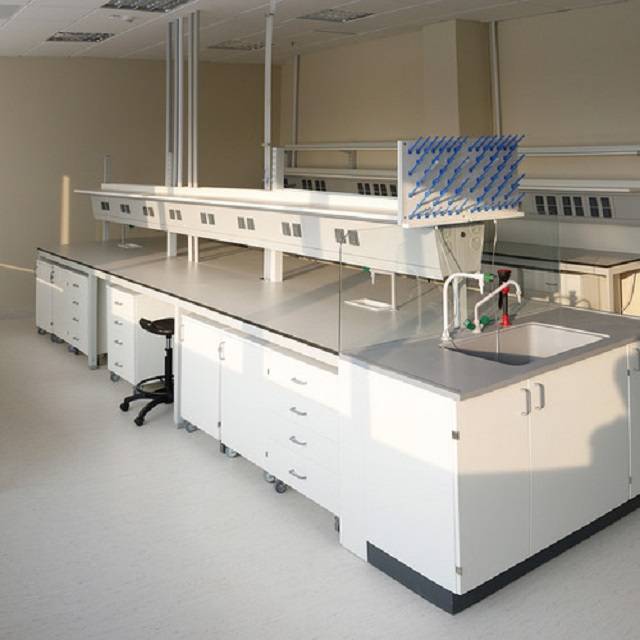

Suitable for all types of laboratories, in the hygienic sector, for research centres, hospitals or doctor’s surgery, photo laboratories, the foodstuffs industry, schools, pharmaceutical industry and everywhere, where absolute cleanliness of a highly resistant surface is demanded.

Description

FunderMax Compact Interior panels are high-pressure laminate panels (HPL) manufactured to standard EN 438 for simple cut-outs for mounting the facade panels, to intricate milling for balcony elements.


Max Resistance² panels are Compact Interior panels with an integrated chemical-resistant surface.


Features and benefits:

  • Scratch resistant.
  • Solvent resistant.
  • Food grade.
  • Heat resistant.
  • Easy to clean.
  • Hygienic.
  • Impact resistant (to EN ISO 178).
  • Decorative.
  • Abrasion proof.
  • Resistant to chemicals.
  • Frost and heat resistant from -80 to +80°C.
  • Bending resistant (to EN ISO 178).
  • Easy to install.
  • Durable.

General information

Shape

Rectangle

Color

Panel Core is black with surface finish available in different colours.

Black

Material

Laminate

High-pressure laminate panels (HPL) according to EN 438-4 with scientifically developed, double-cured polyurethane acrylic coating.

Size

3660 x 1630 mm

Uniclass 2015

Pr_25_71_63_15 Compact or solid grade high-pressure laminate (HPL) boardsPrimary

CAWS

K13/140 Proprietary laminated plastics-veneered panel lining

K13/145 Proprietary plastics cladding

N10/10 Purpose-made

N10/110 Purpose-made

N11/380 Purpose-made units

N12/440 Purpose made

Specification data - Compact or solid grade high-pressure laminate (HPL) boards Enhanced data

Thickness

4 mm.

5 mm.

6 mm.

8 mm.

10 mm.

12 mm.

13 mm.

16 mm.

19 mm.

20 mm.

25 mm.

Panel size

-

Length

3600 mm.

Width

1630 mm.

Edges

Non-bevelled cut edges as standard.

Edge processing is possible.

Finish

Double-sided.

Colour

Black.

Black (core), surfaces are available in a wide range of decors, see manufacturer's literature for details.

Specials

Not required.

Resistant surface.

Apparent density

DIN 52350/ EN ISO 1183 ≥1.35 g/cm³.

Flexural strength to EN ISO 178

≥80 MPa.

E-Modulus to EN ISO 178

≥9000 MPa.

Coefficient of thermal expansion to EN 61340-4-1

20 x 10^-6 1/K.

ThermalConductivity

0.3 W/mK.

Water vapour diffusion resistance

17.200 μ.

Resistance against stress abrasion to EN 438-2

≥450 U.

Resistance against scratching to EN 438-2

≥3–4 Degree (4–6 N).

Susceptibility to cracking to EN 438-2

≥4.

Light fastness to EN 438-2

≥4.

Fixing

A variety of options for fixing exist, including mechanical fastening, consult the manufacturer for details and insert requirements.

Environmental information

Contains Red List materials

The panels do not contain organic halogens (or chlorine, fluorine, bromine, etc) compounds such as are found in greenhouse gases or PVC. They contain neither asbestos nor wood protection agents (fungicides, pesticides, etc) and are free of sulfur, mercury and cadmium.

-

Country of material origin

Austria

Recyclability

Made from 65% natural fibre panels. Production waste is used to generate energy in Fundermax's green energy district heating plants.

-
