Max Compact Interior Plus
Compare variants

Application

Suitable for interior use in heavy duty areas (e.g. office furniture, wall cladding, wet rooms, etc.).


Typical application includes hospitals, schools, kindergartens, sanitary rooms, hotels and in public areas, as well as buildings with occasionally increased risk of infection (airports, train stations), industrial kitchens, food industry and public transport.

Description

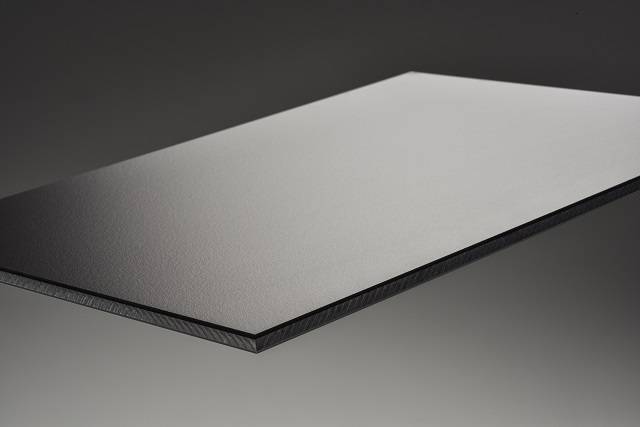

FunderMax Compact Interior Plus are high-pressure laminate (HPL) double-sided panels for interior use.



Features and benefits:

  • Scratch resistant.
  • Solvent resistant.
  • Food grade.
  • Heat resistant.
  • Easy to clean.
  • Hygienic.
  • Impact resistant (to EN ISO 178).
  • Decorative.
  • Abrasion proof.
  • Resistant to chemicals.
  • Frost and heat resistant from -80 to +80°C.
  • Bending resistant (to EN ISO 178).
  • Easy to install.
  • Durable.
  • CE marked.

General information

Material

Laminate

High-pressure laminate panels (HPL) according to EN 438-4 with a double hardened, pore-free, sealed urethane acrylate layer.

Shape

Rectangle

Size

2800 x 1300 mm

4100 x 1300 mm

2800 x 1854 mm

4100 x 1854 mm

Uniclass 2015

Pr_25_71_63_15 Compact or solid grade high-pressure laminate (HPL) boardsPrimary

CAWS

K13/145 Proprietary plastics cladding

N11/380 Purpose made units

N12/440 Purpose made

Specification data - Compact or solid grade high-pressure laminate (HPL) boards Enhanced data

Grade

HPL/ BS EN 438 4/ CGS.

Fire rating

To EN 13501-1: Euroclass D-s2, d0 (CWFT).

Thickness

2–20 mm.

(2–4 mm single sided).

Panel size

-

Length

2800 mm.

4100 mm.

Width

1300 mm.

1854 mm.

Edges

Non-bevelled cut edges as standard.

Edge processing is possible.

Finish

Double-sided.

Specially compressed surface to both sides.

Colour

Panel Core is black with surface finish available in different colours.

-

Specials

Not required.

Specially compressed surface.

Apparent density

DIN 52350/ EN ISO 1183 ≥1.35 g/cm³.

Flexural strength to EN ISO 178

≥80 MPa.

E-Modulus to EN ISO 178

≥9000 MPa.

Coefficient of thermal expansion to EN 61340-4-1

20 x 10^-6 1/K.

ThermalConductivity

0.3 W/mK.

Water vapour diffusion resistance

17.200 μ.

Resistance against stress abrasion to EN 438-2

≥150 U.

Resistance against scratching to EN 438-2

≥3 Degree (4 N).

Susceptibility to cracking to EN 438-2

≥4.

Light fastness to EN 438-2

≥4.

Fixing

A variety of options for fixing exist, including mechanical fastening, consult the manufacturer for details and insert requirements.

Environmental information

Contains Red List materials

The panels do not contain organic halogens (or chlorine, fluorine, bromine, etc.) compounds such as are found in greenhouse gases or PVC. They contain neither asbestos nor wood protection agents (fungicides, pesticides,etc.) and are free of sulfur, mercury and cadmium.

-

Country of material origin

Austria

Recyclability

Made from 65% natural fibre panels. Production waste is used to generate energy in Fundermax's green energy district heating plants.

-
