Max Compact Exterior F Quality
Compare variants

Max Compact Exterior F Quality

Fundermax GmbH Variant:

Exterior high-pressure laminate panel.

Jump to:
+44 (0)7564 665048 www.fundermax.at

Application

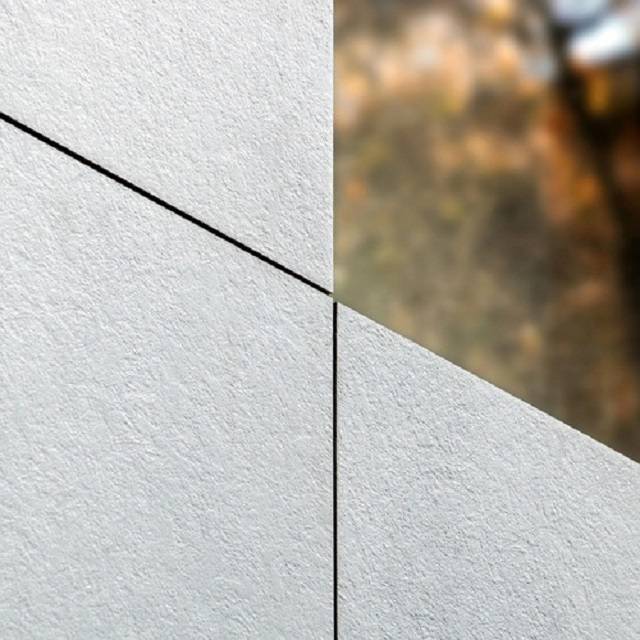

For outdoor use. Suitable for all exterior applications, particularly suitable for long-lasting balconies and facade claddings. The panels are often used as tabletops, benches or furniture in outdoor applications.

Description

Max Compact Exterior panels are duromer high-pressure laminates (HPL) in accordance with EN 438-6 Type EDF that are produced in lamination presses under great pressure and high temperature. Double-hardened acrylic polyurethane (PUR) resins provide extremely effective weather protection that is particularly suitable for long-lasting balconies and facade claddings. For load/ span tables, fixing and construction details, consult technical literature for details.

FunderMax offers CNC controlled processing and panel cutting.

With state-of-the-art devices, it is possible to produce everything from simple cut-outs for mounting the facade panels, to intricate milling for balcony elements. Consult manufacturer for details and specify requirements under 'Special' below.


Features and benefits:

  • Weather-resistant to EN ISO 4892-2.
  • Lightfast according to EN ISO 4892-3.
  • Double hardened.
  • Scratch-resistant.
  • Solvent resistant.
  • Hail resistant.
  • Easy to clean.
  • Impact-resistant EN ISO 178.
  • Suitable for all exterior applications.
  • Aesthetically pleasing.
  • Bending resistant EN ISO 178.
  • Frost and heat resistant.
  • Constant temperature load: -80°C to +80°C.
  • Easy to install.
  • CE marked.

General information

Shape

Rectangular

Color

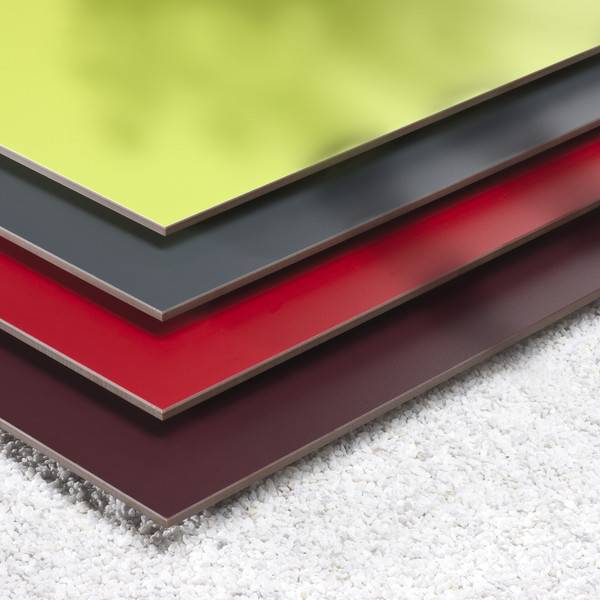

Core Panel is brown in colour and finished in plain or printed colour (surface).

-

Material

Laminate

Size

2800 x 1300 mm

4100 x 1300 mm

4100 x 1854 mm

2800 x 1854 mm

Uniclass 2015

Pr_25_71_63_15 Compact or solid grade high-pressure laminate (HPL) boardsPrimary

CAWS

H92/120 Rainscreen cladding

K13/145 Proprietary plastics cladding

K30/10 Relocatable partition system

K30/130 Relocatable partition system

L20/280 Doors

L20/45 Doors

L20/480 Doorsets

L20/55 Doorsets

Q40/30 Proprietary fencing

Q40/430 Proprietary fencing

Specification data - Compact or solid grade high-pressure laminate (HPL) boards Enhanced data

Grade

As per EN 438-6, type EDF.

Fire rating

EN 13501-1, B-s2,d0.

Thickness

2.0–13.0 mm.

Panel size

-

Length

2800 mm.

4100 mm.

Width

1300 mm.

1854 mm.

Edges

Non-bevelled cut edges as standard.

 Edge processing is possible.

Finish

Double-sided.

 Decor paper on both sides.

Colour

Brown core. Plain or printed colour surface. Wide range of decors, see manufacturer's literature for details.

-

Specials

Not required.

Gloss surface.

Size: 4100 x 1300 mm only, thicknesses 6 and 8 mm, limited decor range.

Hexa surface.

Size: 4100 x 1854 mm only, thicknesses 6 and 8 mm, limited decor range.

NT surface.

Sky (surface texture).

Size: 4100 x 1300 mm only, thicknesses 6 and 8 mm, limited decor range.

Artificial weathering to EN ISO 4892-2

EN 20105-A02 greyscale 4–5.

Apparent density

DIN 52328/ EN ISO 1183 ≥1.35 g/cm³.

Flexural strength to EN ISO 178

≥80 MPa.

Modulus of elasticity to EN ISO 178

≥9000 MPa.

Coefficient of thermal expansion to DIN 52328

18 x 10^-6 1/K.

ThermalConductivity

0.3 W/mK.

Water vapour diffusion resistance

17.200 μ.

Fixing

A variety of options for fixing exist, including mechanical and adhesive fastening, depending on application. Consult manufacturer for details and insert requirements.

Environmental information

Contains Red List materials

The panels do not contain organic halogens (or chlorine, fluorine, bromine, etc) compounds such as are found in greenhouse gases or PVC. They contain neither asbestos nor wood protection agents (fungicides, pesticides, etc) and are free of sulfur, mercury and cadmium.

-

Country of material origin

Austria

Recyclability

Made from 65% natural fibre panels. Production waste is used to generate energy in Fundermax's green energy district heating plants.

-
