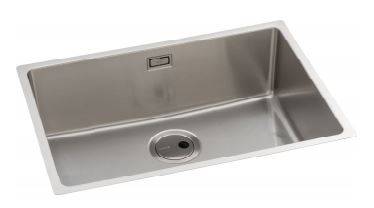

Matrix R15 Stainless Steel Sink
Application

Stainless steel kitchen sink.

Description

The Matrix R15 range uses pressing technology to create very precise shapes with almost square radiuses.


Features and Benefits:

  • Versatile in its installation and can be installed undermounted or as a low profile inset option.
  • Eight different options within the range.
  • Durable 304 stainless steel construction throughout.
  • Deep bowl(s) to accept larger cookware.
  • Easy clean bowl curves.
  • Smooth lined luxury Orbit waste supplied as standard.



General information

Color

Silver

Finish

Brushed

Brushed steel.

Material

Stainless steel

Shape

Rectangular

Size

380 x 440 mm

Matrix R15 - 1.0 Bowl.

540 x 440 mm

Matrix R15 - 1.0 Bowl Large.

580 x 440 mm

Matrix R15 - 1.5 Bowl LH Main Bowl and Matrix R15 - 1.5 Bowl RH Main Bowl.

740 x 440 mm

Matrix R15 - 1.5 Bowl Large LH Main Bowl and Matrix R15 - 1.5 Bowl Large RH Main Bowl and Matrix R15 - 2.0 Bowl.

750 x 440 mm

Matrix R15 - 1.0 Bowl Extra Large.

WarrantyDescription

Ten year

Uniclass 2015

Pr_40_20_96_81 SinksPrimary

CAWS

N11/350 Sinks, taps, traps and wastes

Specification data - Sinks Enhanced data

Form

Inset.

Under-mounted.

Bowls

One.

Matrix R15 - 1.0 Bowl, Matrix R15 - 1.0 Bowl Large and Matrix R15 - 1.0 Bowl Extra Large.

One and a half.

Matrix R15 - 1.5 Bowl LH Main Bowl, Matrix R15 - 1.5 Bowl RH Main Bowl, Matrix R15 - 1.5 Bowl Large LH Main Bowl and Matrix R15 - 1.5 Bowl Large RH Main Bowl.

Two.

Matrix R15 - 2.0 Bowl.

Drainers

None.

Materials

-

Body

Stainless steel type 1.4301 (304) to BS EN 10088-1.

Finish and colour

Brushed stainless steel.

Size

380 x 440 mm.

Matrix R15 - 1.0 Bowl.

540 x 440 mm.

Matrix R15 - 1.0 Bowl Large.

580 x 440 mm.

Matrix R15 - 1.5 Bowl LH Main Bowl and Matrix R15 - 1.5 Bowl RH Main Bowl.

740 x 440 mm.

Matrix R15 - 1.5 Bowl Large LH Main Bowl and Matrix R15 - 1.5 Bowl Large RH Main Bowl and Matrix R15 - 2.0 Bowl.

750 x 440 mm.

Matrix R15 - 1.0 Bowl Extra Large.

Water supply, overflow and waste holes

-

Water supply

No tap holes.

Overflow

Overflow hole.

Rectangular overflow (55 x 30 mm vertical).

Waste

Centre.

Integral accessories

Orbit manual basket strainer waste, rectangular overflow, bowl pipe work, stainless steel fixing clips and undermount fixing clips.

Included.

Execution

Installing worktop sink assemblies.

Product Reference

Matrix R15 - 1.0 Bowl

380 x 440 mm.

Matrix R15 - 1.0 Bowl Large

540 x 440 mm.

Matrix R15 - 1.5 Bowl LH Main Bowl

580 x 440 mm. (LH main bowl internal size: 340 x 400 mm, RH side bowl internal size: 180 x 400 mm).

Matrix R15 - 1.5 Bowl RH Main Bowl

580 x 440 mm. (RH main bowl internal size: 340 x 400 mm, LH side bowl internal size: 180 x 400 mm).

Matrix R15 - 1.5 Bowl Large LH Main Bowl

740 x 440 mm. (LH main bowl internal size: 500 x 400 mm, RH side bowl internal size: 180 x 400 mm).

Show more

Accessories

None.

Bowl mat.

1 X AX3013. 412 x 332 mm R5.

High and Dry drainer rack.

1 X AX2503. White and grey.
