MatchFast® A3/304 Stainless Steel Fasteners for 1.2–3 mm Steel

MatchFast® A3/304 Stainless Steel Fasteners for 1.2–3 mm Steel

Fixfast Ltd

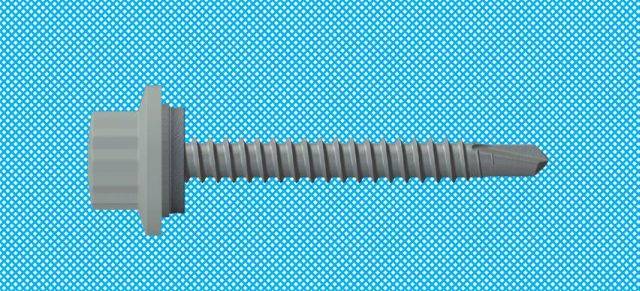

Stainless steel self-drilling fasteners with moulded head for roofing and cladding (1.2–3 mm).

Jump to:
+44 (0)1732 882387 www.fixfast.com

Application

Suitable for the mechanical fixing of the following:

  • For mechanically fixing metal sheeting systems to light metal purlins and rails.
  • For mechanically fixing components of steel, aluminium and metal framing systems.

For use in the following locations:

  • Buildings in residential and commercial settings with humidity class of Class 1, Class 2, Class 3 or Class 4 to BS 5250.
  • Buildings with an internal temperature range of -45°C to 50°C.
  • Coastal locations.

To be fixed with FixFast MF1165.

Fixfast products must be used as a complete system with tools and accessories as recommended - consult manufacturer for details.

Description

Stainless steel self-drilling fasteners with moulded head for roofing and cladding (1.2–3 mm).

Features and benefits:

  • Grade 1.4301 (304), A2 stainless steel is used for optimum resistance to corrosion.
  • Bi-metal, manufactured for superior drilling performance.
  • Good pull-out and shear performance.
  • Colour moulded head.
  • Manufactured in accordance with ISO 9001 and ISO 14001 Quality and Management Systems.

Applications:

Suitable for the mechanical fixing of the following:

  • For mechanically fixing metal sheeting systems to light metal purlins and rails.
  • For mechanically fixing components of steel, aluminium and metal framing systems.

For use in the following locations:

  • Buildings in residential and commercial settings with humidity class of Class 1, Class 2, Class 3 or Class 4 to BS 5250.
  • Buildings with an internal temperature range of -45°C to 50°C.
  • Coastal locations.

To be fixed with FixFast MF1165.

Fixfast products must be used as a complete system with tools and accessories as recommended - consult manufacturer for details.

General information

Material

1.4301 stainless steel (304M), with carbon steel case hardened welded point and UV-stabilized nylon moulded head

Uniclass 2015

Pr_20_29_76_76 Self-drilling screwsPrimary

CAWS

H31/10 Metal

H31/110 Metal

H31/120 Metal

H92/120 Rainscreen cladding

Specification data - Self-drilling screws

Product Reference

MatchFast® A3/304 Stainless Steel Fasteners for 1.2–3 mm Steel, MF3-SS-5.5 x 35

Washer

Required

Consult manufacturer for information.

Not required

Colour

Consult manufacturer and insert requirement.

Standard product features

Size (l x diameter):

35 x 5.5 mm.

Material:

1.4301 stainless steel (304M), with carbon steel case hardened welded point and UV-stabilized nylon moulded head.

Coating:

Multiple layer organic.

Head type:

Bi-Hex 11 mm.

Drilling capacity:

1.2–3 mm (steel).

Minimum penetration (light steel purlins):

19 mm (through underside).

Build up:

0–9 mm (dependent on washer used).

Durability class:

  • Interior environments: C1 (30).
  • Semi-interior: 25.
  • Urban: C2 (25).
  • Rural: C3 (25).
  • Industrial/ coastal: C4 (15).
  • Marine: C5.

Technical characteristics:

- Characteristic values:

  • Pull out values (axial load resistance), to BS 5427: On 1.2 mm steel: 2.07 kN; on 2 mm steel: 4.22 kN; on 3 mm steel: 4.76 kN.
  • Pull through values (axial load resistance): 0.5 mm steel with A15 washer: 3.38 kN; 0.7 mm steel with A15 washer: 4.97 kN.
  • Shear values (lateral load resistance): 1.2 mm steel with A15 washer: 1.95 kN.

- Design values:

  • Pull out values (axial load resistance), to BS 5427: On 1.2 mm steel: 1.22 kN; on 2 mm steel: 3.17 kN; on 3 mm steel: 3.58 kN.
  • Pull through values (axial load resistance): 0.5 mm steel with A15 washer: 2.54 kN; 0.7 mm steel with A15 washer: 3.73 kN.
  • Shear values (lateral load resistance): 1.2 mm steel with A15 washer: 1.47 kN.

Other figures and specific testing are available on request - consult manufacturer for information.
