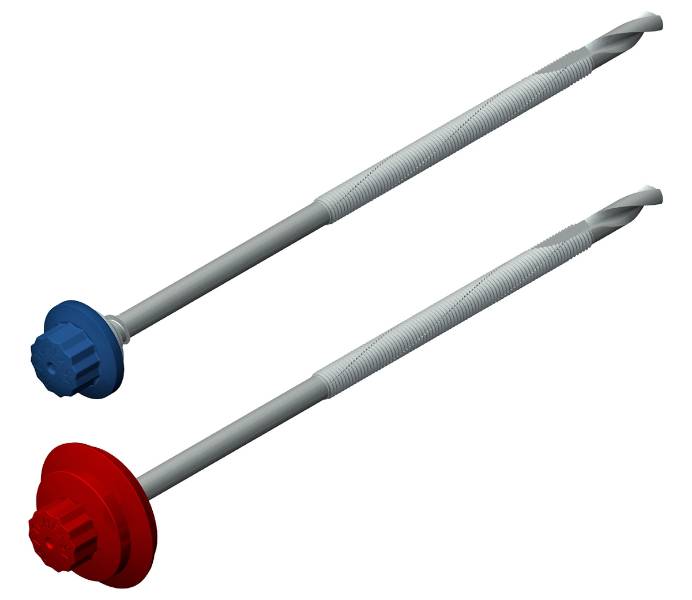

MatchFast Stainless MF12-SS-HT Composite Panel Fasteners
Verified by manufacturer 2 months ago
European Technical Approval (ETA)
Certificate type
Stainless steel self-drilling fasteners with moulded head for installing insulated sandwich panels to heavy steel.
Application
- For mechanically fixing composite panel systems to heavy steel purlins and sections
- Heavy steel purlins 4.0–12.0 mm thickness, 30 mm through underside
Description
Stainless steel self-drilling fasteners with moulded head for roofing and cladding.
Features and benefits:
- Warranted fasteners with £20 million UK insurance cover
- A2/ 304 stainless steel for optimum resistance to corrosion
- Bi-metal manufactured for superior drilling performance
- Excellent pull-out and shear performance
- Colour moulded head
- Purpose designed and precision manufactured by Fixfast
- ETA approved and CE marked
General information
Color | Silver Beige Black Blue Brown |
Finish | Nylon-coated |
Material | Stainless steel |
Length | 95 mm 115 mm 150 mm 200 mm 250 mm |
Width | 5.5 mm |
Warranty description | 30 year Guidance for specification option: Up to 40 years, consult manufacturer for details. |
Uniclass | |
CAWS | H43/219 Fasteners H43/10 Metal insulating sandwich panel H43/120 Metal insulating sandwich panel |
Product range |
Specification data - Self-drilling screws
Standard | Independently tested to EAD 33047-01-0602. |
Material | 1.4301 stainless steel (304M), with carbon steel case hardened welded point and UV-stabilized nylon moulded head. |
Finish | Organic. |
Head type | Bi-Hex 11 mm. |
Size | |
Diameter | 5.5 mm. |
Length | 95 mm.115 mm.150 mm.200 mm.250 mm. |
Washers | A19 washer.A15 washer.L29 washer. |
Performance: | Pull-out values (axial load resistance): 3.59–5.59 kN. Guidance for specification option: Characteristic value. Manufacturer guidanceProduct dependent. Consult literature for details. |
ShearStrength | 4.0 mm steel: 0.98 kN. Guidance for specification option: Characteristic value. |
Durability | Up to 30 years corrosion resistance. |
Sustainability data
Material | Stainless steel |
Third party certifications
European Technical Approval (ETA)
ETA: Certificate 15/0406
