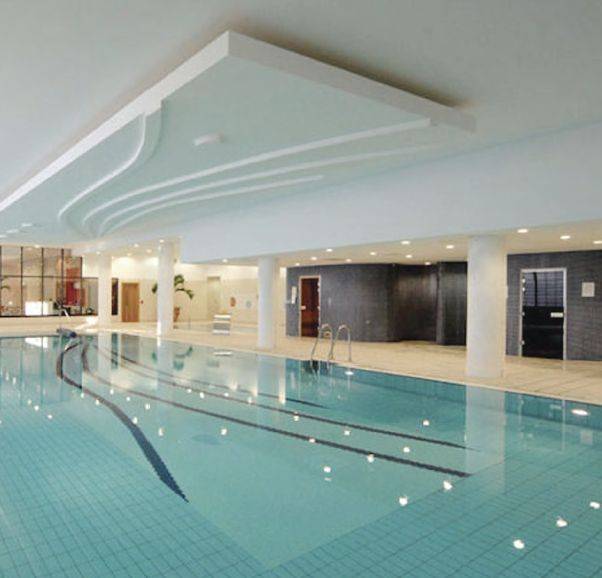

Masterboard suspended swimming pool ceilings
Application

Suitable for use in suspended ceilings above swimming pools.

Description

A moisture-resistant suspended ceiling suitable for use above swimming pools.

Features and benefits:

The boards are:

  • Resistant to the effects of moisture.
  • Will not physically deteriorate when used in damp or humid conditions.
  • Can withstand high temperatures and frequent temperature changes.

Application:

Suitable for use in suspended ceilings above swimming pools.

General information
Features

The boards are resistant to the effects of moisture. Will not physically deteriorate when used in damp or humid conditions, and can withstand high temperatures and frequent temperature changes. Provides a quick and economical method of upgrading existing latched single leaf, single acting flush and panelled timber doors to achieve 20 minutes fire integrity

Finish

Panelled. Top coat has a matt finish or low profile ripple finish

Material

Timber - softwood or hardwood, polyvinyl chloride (PVC)-encased

Shape

Rectangular with vertical edges

Size

2400 x 1200 x 9 mm, rebated four edges

Uniclass 2015
Ss_30_25_10_35 Gypsum board suspended ceiling systemsPrimary
CAWS

K40/135 Board-suspended ceiling system

Specification data - Gypsum board suspended ceiling systems
Product Reference

Masterboard Suspended Swimming Pool Ceilings

Suspension -
Suspension grid

Protektor System S400 suspended ceiling support system suitable for swimming pool areas

The system is coated for protection to this atmosphere with specially treated fixings, hangers and screws.

Grid fasteners

Supported at maximum 600 mm centres and fastened with minimum 25 mm ceramic screws, at maximum 300 mm centres

Linings -
Inner layers

LPL bonding primer

Face layer

Promat Masterboard

Fasteners

Ceramic screws

Joint treatment

Promat moisture resistant ready-mixed joint filler

System accessories

None

Decorative coating system

Embed LPL Steridex into LPL Reemat Lite reinforcement.

Standard product features

Features:

The boards are resistant to the effects of moisture. Will not physically deteriorate when used in damp or humid conditions, and can withstand high temperatures and frequent temperature changes. Provides a quick and economical method of upgrading existing latched single leaf, single acting flush and panelled timber doors to achieve 20 minutes fire integrity.

Finish:

Panelled. Top coat has a matt finish or low profile ripple finish.

Material:

Timber - softwood or hardwood, polyvinyl chloride (PVC)-encased.

Size:

2400 x 1200 x 9 mm, rebated four edges.

Shape:

Rectangular with vertical edges.
