Master F direct fix acoustic ceiling tile - Mechanical Fixed Ceiling Tile System

Name: Master F direct fix acoustic ceiling tile - Mechanical Fixed Ceiling Tile System
Brand: Saint-Gobain Ecophon
SKU: 6J1FLfzs1nigi3C26LkM1t

Verified by manufacturer 7 days ago

Saint-Gobain Ecophon

Product certifications:

M1 emission classification
Certificate type
Cradle to Cradle Certified
Certificate type
Cradle to Cradle Certified
Certificate type
Indoor Air Comfort – Eurofins
Certificate type
EPD
Certificate type
European Technical Approvals
Certificate type
Health & Safety Accreditation
Certificate type

Ceiling tile manufactured with a glass wool core.

Jump to:

+44 (0)1256 855250 Website

Application

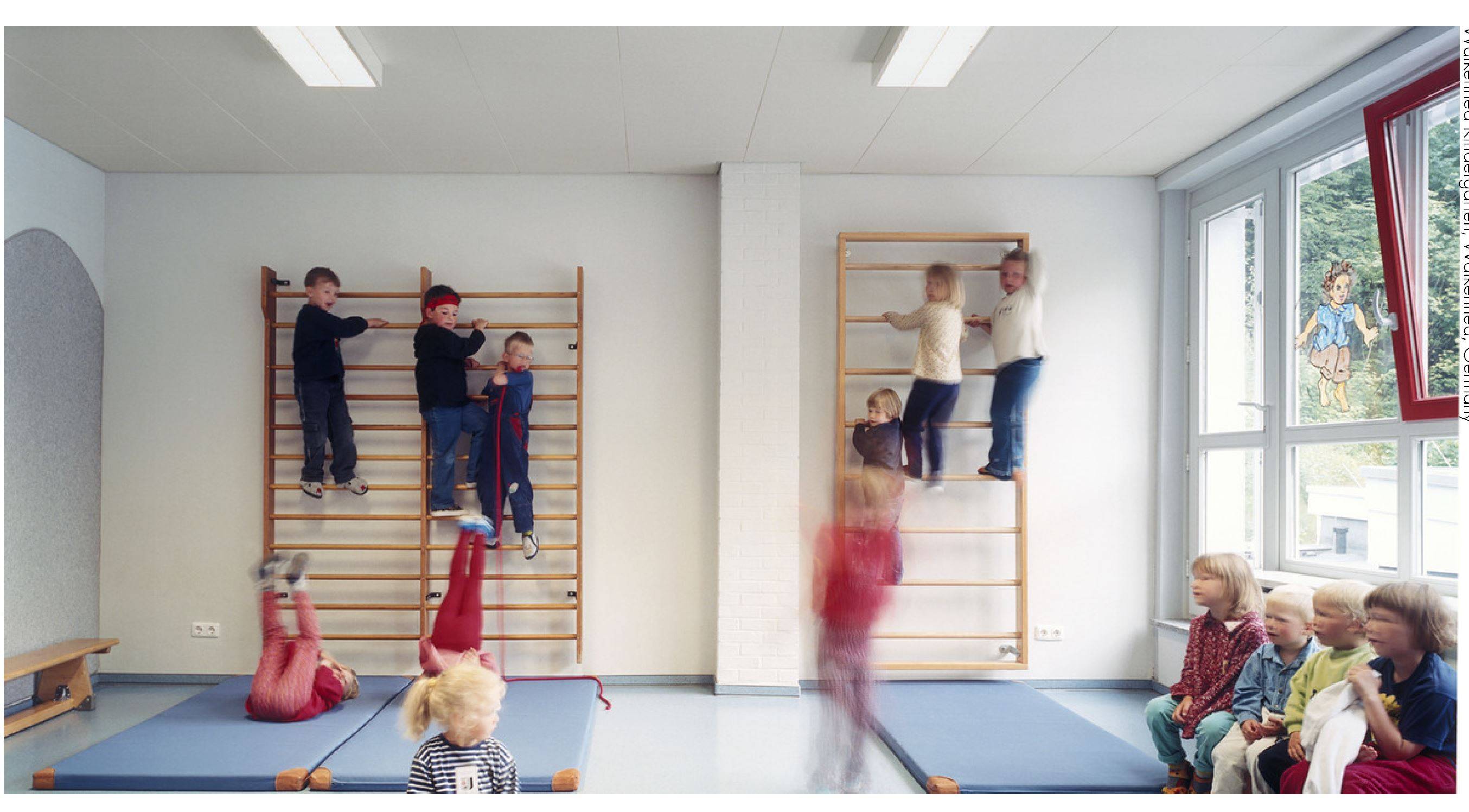

Suitable for schools, open plan offices or other premises where strict demands are made on good acoustics.

Description

Ecophon Master™ F is installed directly to an existing plaster ceiling, boarding, battens or concrete to create a ceiling with a smooth appearance.

Features and benefits:

Daily dusting and vacuum cleaning. Weekly wet wiping.
Non-demountable.
CE marked according to the European harmonized standard EN 13964.

General information

Color	White
Finish	Painted
Material	Glass Wool
Shape	Square Rectangle
Length	600 mm 1200 mm
Width	600 mm
Height	40 mm
Warranty description	Ten year

Uniclass	Pr_35_93_13_80 Sound attenuator infill unitsPrimary
CAWS	K45/350 Boards K45/37 Boards K40/32 Boards K40/270 Boards

SKU Code	Master F acoustic ceiling system

Specification data - Sound attenuator infill units

Classification data
Form	Board.
Rigidity	Rigid.
Application	Ceiling mounting.
Material	Glass wool.
Acoustic performance	-
Purpose	Absorber.
Sound absorption	Class A to BS EN ISO 11654. Guidance for specification option: NRC 0.95.
Fire performance	-
Reaction to fire	A2-s1,d0.
Dimensions	-
Size (length x width)	600 x 600 mm. 1200 x 600 mm.
Thickness (overall)	40 mm.
Profile	Linear.
Edges	Tongue and groove.
Surface pattern	Solid.
Colour	White Frost, nearest NCS colour sample S 0500-N, 85% light reflectance. Gloss < 1.
Constant humidity resistance	Class C, relative humidity 95% and 30°C, according to EN 13964.
Indoor climate	Eurofins Indoor Air Comfort®: IAC, French VOC A and Finnish M1.
Installation	M52 - Glued installation.

Sustainability data

Contains Red List materials	No
Country of material origin	Sweden
Country of product manufacture	Sweden
Material	Glass Wool
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 7.3 Value guidance: A1-A3 Life-cycle stages A1 to C4 from EPD, in conformity with ISO 14025/ EN 15804.
Recyclability	Fully recyclable.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	63 %
Expected Life	50 year
