Masonry Support System - WSP Individual Bracket System
Compare variants

Masonry Support System - WSP Individual Bracket System

WSP/T

Wincro Metal Industries Ltd Variant:
Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

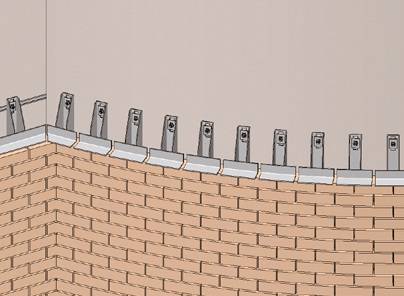

Individual masonry bracket support system.

Jump to:
+44 (0)114 242 2171 www.wincro.com

Application

Suitable for fixing to concrete framed and steel framed structures.

Description

A system that comprises of a thin support angle complete with welded bracket incorporating a serrated slot and adjustment washer. Various solutions are available for fixing to concrete framed structures, including the use of ‘T’ head bolts into cast-in channels, site drilled expansion bolts or the use of resin anchor products. Fixing to steel framed structure use coated Setscrews or the Wincro RHS Blind Bolt for hollow fixing. Brackets are usually designed at 225 mm centres for supporting brickwork and 450 mm centres for blockwork.


Type:

  • WSP/T: Standard arrangement using cast in channel to slab edge.
  • WSP/E: Standard arrangement using site drilled expansion bolts.
  • WSP/R: Standard arrangement using site drilled resin anchor bolts.
  • WSP/S: Standard arrangement using isolated bolts to structural steelwork.
  • WSP/BB: Standard arrangement using isolated bolts to RHS structural frames.


Features and benefits:

  • Systems to suit stone cladding are generally at the vertical joint between adjoining stones and should be designed in accordance with the necessary codes of practice.
  • Drawings are provided showing the location of fixings and all bracket units are fully referenced and scheduled.
  • Other variations/ configurations available, consult manufacturer for details.
  • All details are submitted for approval before manufacture.
  • CE marked to BS EN 1090-1.

General information

Color

Silver

Material

Stainless steel

Grade 1.4301 (304), standard.

Grade 1.4401 (316), optional.

Shape

Other

Uniclass

Pr_20_85_09_42 Individual masonry bracketsPrimary

CAWS

F30/224 Individual brackets

Specification data - Individual masonry brackets Enhanced data

Standard

To BS EN 1090-1.

Material

Stainless steel, grade 1.4301 (304).

Standard.

Stainless steel, grade 1.4401 (316).

Optional.

Accessories

None.

Cavity Closure plate.

Soffit Hanger System to suit ½ brick high soldier.

Soffit Hanger System to suit 1 brick high soldier.

Thermal shim.

Prevents bi-metallic corrosion.

Fixing

T-Head bolts.

Into cast-in channels for fixing to concrete framed structures.

Site-drilled expansion bolts.

For fixing to concrete framed structures.

Resin-anchor products.

For fixing to concrete framed structures.

Coated setscrews.

For fixing to steel framed structures.

Wincro grip bolt.

For hollow fixing for fixing to steel framed structures.

Configurations

Standard arrangement using cast in channel to slab edge.

Sizes

Insert requirements, or 'As drawing'.

Centres

Brackets centres.

225 mm (supporting brickwork); 450 mm (blockwork).

Literature

Masonry Support Systems

Masonry Support Systems

Third party certifications

  • CE Marked to BS EN 1090-1
