WSU Ultima Support System
WSU Ultima Support System

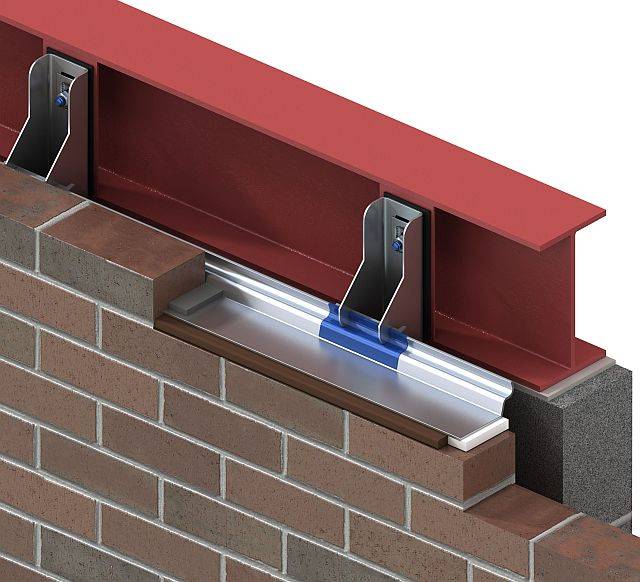

A standard support system comprising of a front loading support angle with brackets and fixings to suit various masonry loads and cavities.
Application
Suitable for supporting outer leaf of masonry cladding for concreate and steel framed structures.
Description
A standard support system comprising of a front loading support angle with pre-marked fixing zones, and a range of brackets and fixings to suit masonry loads up to 14 kN/m and cavities from 50 to 150 mm wide.
Type:
- WSU Wincro Ultima Support System is suitable for masonry loads up to 14 kN/m.
- WSU2 Wincro Ultima Support System is suitable for masonry loads up to 12 kN/m.
Features and benefits:
- Brackets and angles are interchangeable.
- Provides greater on-site adjustment compared with ‘traditional’ welded systems.
- Can be easily moved around site and the system requires no setting out or detailed layouts.
- Brackets can be simply changed on site to suit cavity variances between the structure and brickwork.
- CE marked to BS EN 1090-1.
- Cost effective, convenient and easy installation.
General information
Color | Silver |
Material | Stainless steel Guidance for specification option: Grade 1.4301 (304) and Grade 1.4401 (316). |
Shape | Other |
Size | Guidance for specification option: Standard corner unit. |
Uniclass | |
CAWS | F30/265 Support system |
Specification data - Masonry angle supports
Material | Stainless steel, grade 1.4301 (304). |
Accessories | None. Thermal shim. Guidance for specification option: Prevents bi-metallic corrosion. |
Fixing type | WBT38 M12 A2 T head bolt to continuous cast-in channel. Guidance for specification option: To concrete. WBEB M12 A4 expansion bolts. Guidance for specification option: To concrete. WBRC resin anchor system. Guidance for specification option: To concrete (consult manufacturer for more information). WBXS isolated hex-head set screw. Guidance for specification option: To steelwork (steel plates/ gussets within the steelwork beam). WBBB RHS bolt fixing and isolation. Guidance for specification option: To hollow sections (RHS/ SHS sections). |
Fixing | 140 mm. Manufacturer guidanceFixing height. |
Load | 14 kN/m. Manufacturer guidanceMasonry load. Maximum. |
Angle | 790 mm. Manufacturer guidanceAngle length. |
Lengths | 800 mm. Manufacturer guidanceNominal length. |
Bracket centres (maximum) | 400 mm. |
Unit size | 850 x 850 mm. Manufacturer guidanceStandard corner unit. |
Cavity size | Guidance for specification option: Insert details. |
Adjustment | +/- 26 mm. Guidance for specification option: Provided by the patented Wincroslot within the brackets. Horizontal adjustment is provided within the coloured angle ’fixing zone’ to accommodate predrilled holes in steelwork or clashes with reinforcing bar in concrete frames. Manufacturer guidanceVertical adjustment. |
