Masonry Support Brick Faced Soffit

Verified by manufacturer 3 months ago

Header bond

Wincro Metal Industries Ltd Variant:

LBS brick slip soffit system suitable for high rise buildings over 18 m.

Jump to:
+44 (0)114 242 2171 Website

Application

Suitable for any brick soffit detail including:

  • External walls of residential buildings over 18 metres in height.
  • Care homes.
  • Student accommodation.
  • Hospitals.

Description

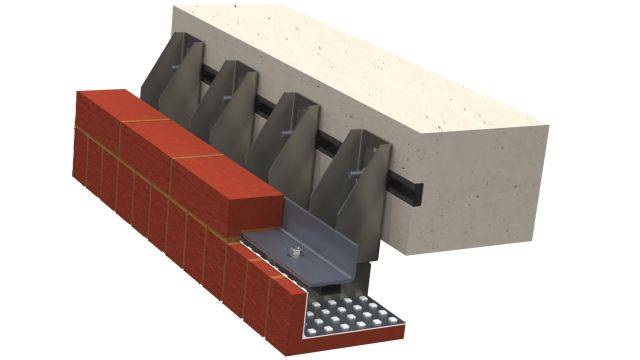

Prefabricated brick slip soffit system to suit any brick soffit detail. Suitable for high rise buildings over 18 m.


Features and benefits:

  • Full stainless-steel construction.
  • Flawless joint to existing brickwork.
  • Considerably lighter and quicker to produce than traditional solutions.
  • Fits seamlessly with Wincro Masonry Support systems.
  • Designed and manufactured to suit any brick soffit detail.
  • Simpler reduced installation time due to the new prefabricated components.
  • Variable bond styles and soffits available.
  • Manufactured from corrosion resistant stainless steel.
  • BBA approved resin.
  • Complies with Approved Document B: 2019 (Fire Safety) – BS EN 13501-1, A2-s1, d0 classification.
  • CE marked to BS EN 1090-1.
  • Brick bond tested to BS EN 1015-12.
  • All bond styles and sizes accommodated to suit project requirements. Consult manufacturer for details.

General information

Material

Stainless steel

Guidance for specification option:

Grade 1.4301 (304).

Shape

Other

Uniclass

Pr_20_85_03_50 Masonry angle supportsPrimary

CAWS

F30/265 Support system

Specification data - Masonry angle supports

Material

Stainless steel, grade 1.4301 (304).

Sizes

65 x 215 mm.

Bond

Header bond.

Fire safety

Complies with Approved Document B: 2019.

Reaction to fire

To BS EN 13501-1, A2-s1,d0.

Manufacturer guidance

Independently tested by Warringtonfire to BS EN 13501-1 (Reaction of Fire of Construction Products).

Literature

LBS Masonry Support Brick Slip Soffit (EX-43-2)
