Masonry Stone Wool Brick Effect Render A1 Rated External Wall Insulation System - External Wall Insulation System
Verified by manufacturer 1 day ago
A1 Rated external wall insulation system incorporating a range of components including A1 non-combustible stone wool insulation and a brick-effect render finish.
Application
Suitable for a range of projects where traditional new brick-work or brick slips are impractical, including retrofit, remediation, high-rise buildings, and new build.
Description

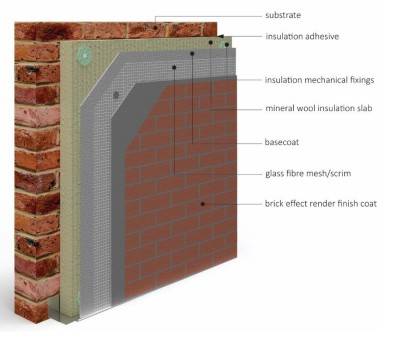

External wall insulation system for masonry substrates, incorporating an A1 non-combustible stone wool insulation board, this system achieves a system fire classification of A1 to BS EN 13501-1.

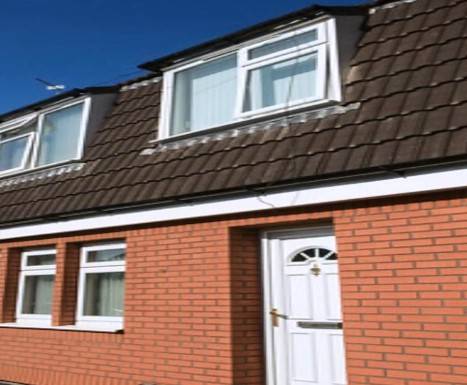

Providing a familiar brick finish, this system provides a versatile alternative to traditional brickwork.
Features and benefits:
- Render finish applied in two coats.
- Fire classification: A1 to EN 13501-1.
- Design life: 30 years, 60 year option available.
- Impact resistance: Category I.
- Hygrothermal/ freeze/ thaw testing: Pass.
- Stone wool thermal conductivity: 0.036 W/mK.
- Insulation thicknesses available: 50–250 mm.
- Finish options: brick-effect render available in a variety of colours.
- BBA certified.
General information
Color | Grey Red Yellow Cream Orange |
Finish | Brick |
Material | Render Mineral wool Stone wool Aluminium Cementitious |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year 25 year |
Uniclass | |
CAWS | M21/210 Rendered external wall insulation systems M21/20 External wall insulation systems |
Specification data - External wall insulation systems
Classification data | |
System performance | Durability - 30 years; fire performance to EN 13501-1, Class A1. Durability - 60 years; fire performance to EN 13501-1, Class A1. Guidance for specification option: The system’s service life can be extended to 60 years provided a planned inspection and maintenance programme is introduced. An extended 60 years service life also requires the use of certain components - consult manufacturer for details. |
Support rails and brackets | |
Fixing method | |
Material | Wetherby aluminium base rail. Guidance for specification option: 2.5 m long. |
Bracket fixings | Hit M 6 x 40 mm. Guidance for specification option: Zinc-coated expansion sleeve with a polyamide 6 body. 40 mm long by 6 mm diameter. |
Insulation | |
Material | Wetherby stone wool insulation. Guidance for specification option: Rockwool External Wall Dual Density Slab. Thermal performance ranging from 0.030 Wm²/K. Thicknesses between 50–250 mm (in 10 mm increments).
|
Adhesive | Wetherby insulation bedding adhesive (where required). Guidance for specification option: Wetherby Insulation Bedding Adhesive is a cement based, polymer modified adhesive that offers improved adhesion for bedding of EPS and Stone Wool External Wall Insulation Systems. Suitable for use on multiple masonry substrates. Contact manufacturer for more details regarding suitable primers and substrates. Consult manufacturer's literature for more details. |
Additional mechanical fixings | SPIT ISO 10. Guidance for specification option: Polypropylene plastic expansion sleeve with a polypropylene or polyamide 6 plastic pin. TFIX-8M. Guidance for specification option: Polypropylene sleeve with electro-galvanized steel pin. R-TFIX-8M. Guidance for specification option: Polypropylene sleeve with electro-galvanized steel pin. R-TFIX-8S. Guidance for specification option: Polypropylene sleeve with electro-galvanized steel pin. Ejot DMH 8. Guidance for specification option: Stainless steel anchor. Rawl MBA-SS. Guidance for specification option: Stainless steel facade fixing. Other. Guidance for specification option: Other fixings may be used provided they can be demonstrated to have equal or higher pull-out, plate diameter and plate stiffness characteristics. Consult manufacturer for details. |
Beads and trims | Render beads. Manufacturer guidanceConsult manufacturer and insert requirements. |
Movement joints | |
Form with | Render beads. Guidance for specification option: Consult manufacturer and insert requirements. |
Sealant | Arbosil LMS. Guidance for specification option: Arbosil LMS is a one-part neutral cure silicon sealant which cures on exposure to moisture vapour to form an elastic silicone rubber. Available in a range of colours; consult manufacturer's literature for more details. Nullifire FS703. Guidance for specification option: FS703 is a low modulus, neutral cure, silicone sealant, suitable for linear gaps sealing in order to reinstate the fire performance in compartment walls and floors. Available in white as standard and black and grey upon request (may be subject to minimum order quantities). Consult manufacturer's literature for more details. |
Render carrier or reinforcement | |
Material | Alkali resistant reinforcing scrim cloth (R 131 A101). Guidance for specification option: Alkali-resistant glass fibre mesh. Nominal weight of 160 g/m². |
Mesh size | 3.5 x 3.8 mm. Guidance for specification option: Supplied in 50 x 1 m rolls and available in 1.1 and 0.5 mm thickness. Insert requirements. |
Fixings | SPIT ISO 10. Guidance for specification option: Polypropylene plastic expansion sleeve with a polypropylene or polyamide 6 plastic pin. TFIX-8M. Guidance for specification option: Polypropylene sleeve with electro-galvanized steel pin. R-TFIX-8M. Guidance for specification option: Polypropylene sleeve with electro-galvanized steel pin. R-TFIX-8S. Guidance for specification option: Polypropylene sleeve with electro-galvanized steel pin. Ejot DMH 8. Guidance for specification option: Stainless steel anchor. Rawl MBA-SS. Guidance for specification option: Stainless steel facade fixing. Other. Guidance for specification option: Other fixings may be used provided they can be demonstrated to have equal or higher pull-out, plate diameter and plate stiffness characteristics. Consult manufacturer for details. |
Render | |
Application | Finish coat. |
Decorative finish | Wetherby brick-effect render finish. Guidance for specification option: A cementitious render applied to 3–5 mm thickness. |
Colour | Manufacturer guidanceAvailable in a wide range of colours. Consult manufacturer for more details and insert requirements. |
System accessories | Guidance for specification option: Consult manufacturer for details and insert requirements. |
Mortar | Wetherby brick-effect render mortar coat. Guidance for specification option: Applied to 6–8 mm thickness, with a coverage up to 10 kg/m². |
Scrim adhesive | Wetherby scrim adhesive. Guidance for specification option: Cement-based, polymer modified basecoat. |
Impact resistance | Category I. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Manufacturing plant location | |
Material | Render Mineral wool Stone wool Aluminium Cementitious Fiber-glass Fibre-reinforced Mineral board Mineral fibre Rock fibre Rock fibre mineral wool Rock mineral fibre Rock mineral wool Stonewool |
Expected Life | 30 year 60 year |
