Markwik 21+ Healthcare Wall Mounted Lever Action Healthcare Taps
Verified by manufacturer 5 months ago

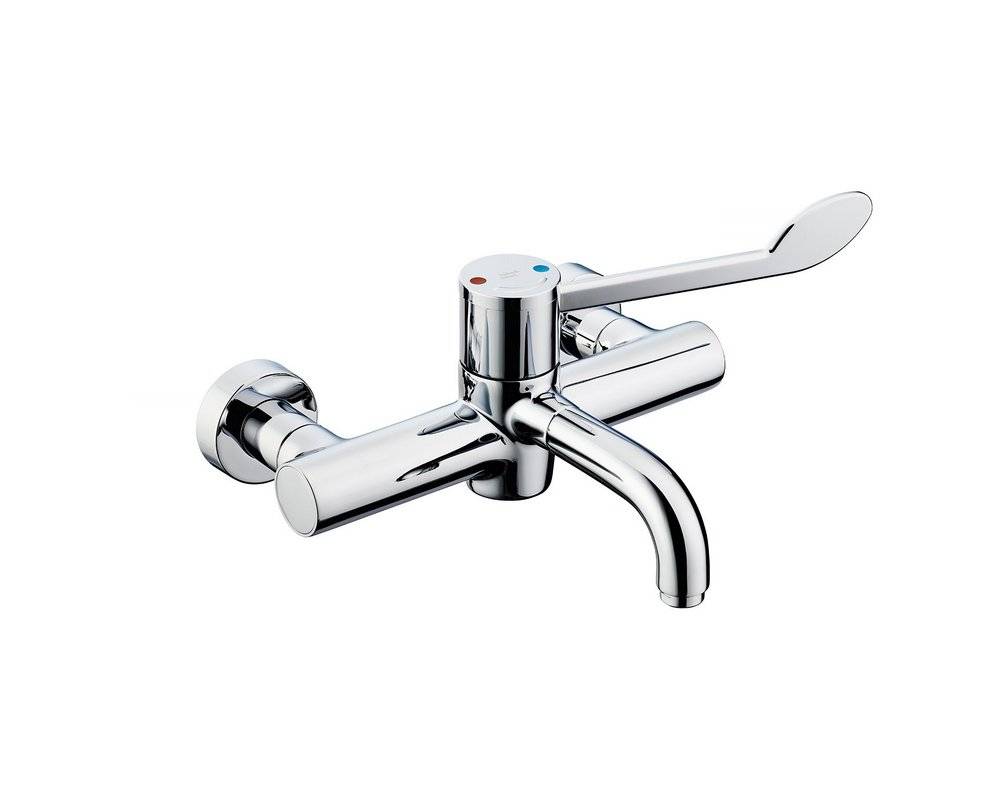

Fixed Spout (A6735AA)
Fixed Spout (A6735AA)
HBN compliant wall mounted lever action taps with detachable or fixed spout (ref: TB H2a).
Application
- Suitable for high and low pressure systems.
- Especially suited to medium and large hospital pattern integral back outlet basins and washing associated with clinical or nursing procedures.
Description
Markwik 21+ panel mounted thermostatic basin mixer, single sequential lever, demountable with removable spout or with a fixed spout.
Features and benefits:
- Chrome finish.
- Single lever for on/ off operation and temperature control.
- Fitted with an Armitage Bioguard outlet which reduces the opportunity for biofilm attachment and is lined with anti-microbial copper.
- Built-in thermal disinfection cleansing feature.
- Spout is fixed (A6735AA) or removable for autoclave sterilisation (A6682AA).
- Body demounts for submergible disinfection.
- Flow rate regulated to maximum of 10 litres per minute.
- A separate purging kit is available to facilitate initial installation flushing and water sampling.
- TMV3 Scheme.
- Water Regulations Approval Scheme (WRAS)-approved.
- HBN 00-10 Part C compliant ref: TB H2a healthcare tap.
General information
Color | Silver |
Finish | Chrome |
Material | Brass |
Shape | Other |
Length | 225 mm |
Width | 258 mm |
Height | 119 mm |
Uniclass | |
CAWS | N12/380 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes N11/350 Sinks, taps, traps and wastes N13/335 Washbasins N13/30 Washbasins N11/30 Sinks, taps, traps and wastes |
Specification data - Thermostatic mixer taps
Approvals | TMV3 and Water Regulations Approval Scheme (WRAS)-approved. |
Form | Thermostatic mixer taps with fixed spout. |
Materials | |
Body | Brass. |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | 10 L/minute. |
Integral accessories | Not required.A6899 - Markwik 21+ purging kit for panel mounted thermostatic mixers. |
Weight | 3.60 kg. |
Mounting | Wall mounted. |
