Description

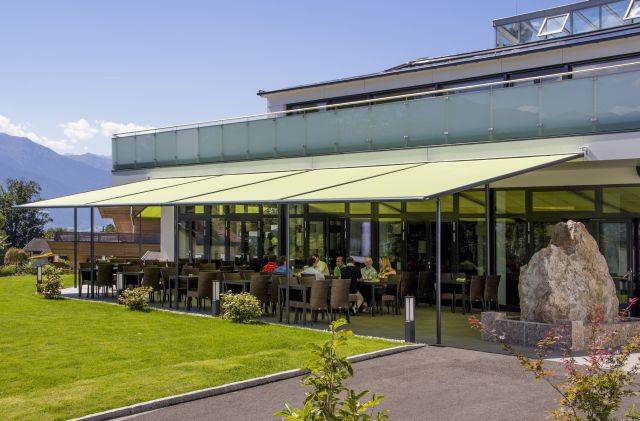

Cassette profile, guide tracks, front profile and front support posts complement one another and result in a large but nevertheless very elegant patio shading system. Large scale awning system resting on slender posts with unobtrusive lateral guide tracks for long-lasting attractiveness, the awning is powder coated in standard colours: traffic white, metallic aluminium, grey brown or anthracite metallic. When fully extended, the rounded front profile sits flush with the end of the guide tracks, giving the system a completely homogeneous appearance.

Features:

  • Manual height adjustment possible on one side – to ensure water drainage at a minimum installation pitch of 7°; if the pitch is at least 14°, water drainage can be guaranteed even if the support post is not lowered.
  • Vertical, manual adjustment of the support post by between 200–400 mm (depends on the awning size) by means of winch handle-operated gearbox inside the post.
  • Standard height of the front posts 2500 mm, other heights (from 1520–2500 mm) on request.

General information
Features

Manual height adjustment possible on one side – to ensure water drainage at a minimum installation pitch of 7°; if the pitch is at least 14°, water drainage can be guaranteed even if the support post is not lowered

Vertical, manual adjustment of the support post by between 200–400 mm (depends on the awning size) by means of winch handle-operated gearbox inside the post

Standard height of the front posts 2500 mm, other heights (from 1520–2500 mm) on request

Uniclass 2015
Pr_20_65_78_58 Open sided sheltersPrimary
Specification data - Open sided shelters
Product Reference

Markilux Pergola 210

Pergola colour

Polyester powder coated, colour

Available in non-standard RAL colours; insert requirements.

Operation

Manual

Radio-controlled motor

With Markilux remote control – ergonomically shaped.

Accessories

None

Tracfix system

Offers closed appearance without the gap between the cover and the guide track.

Vertical solar protection

Available with the 2300 mm high shadeplus/ drop valance.

Wall sealing profile

To cover the gap between awning and wall; effective up to an awning pitch of 25°.

Product Options

Coupling:

Units up to three fields wide are permissible.
