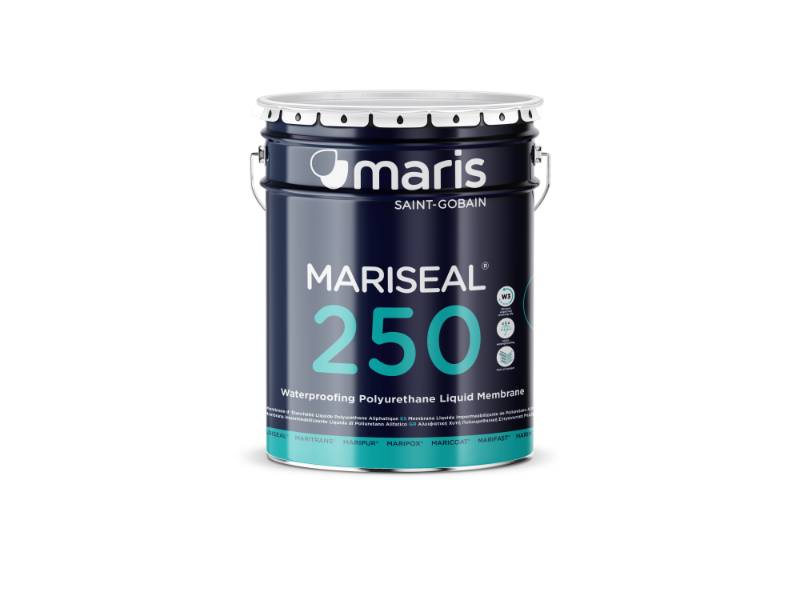

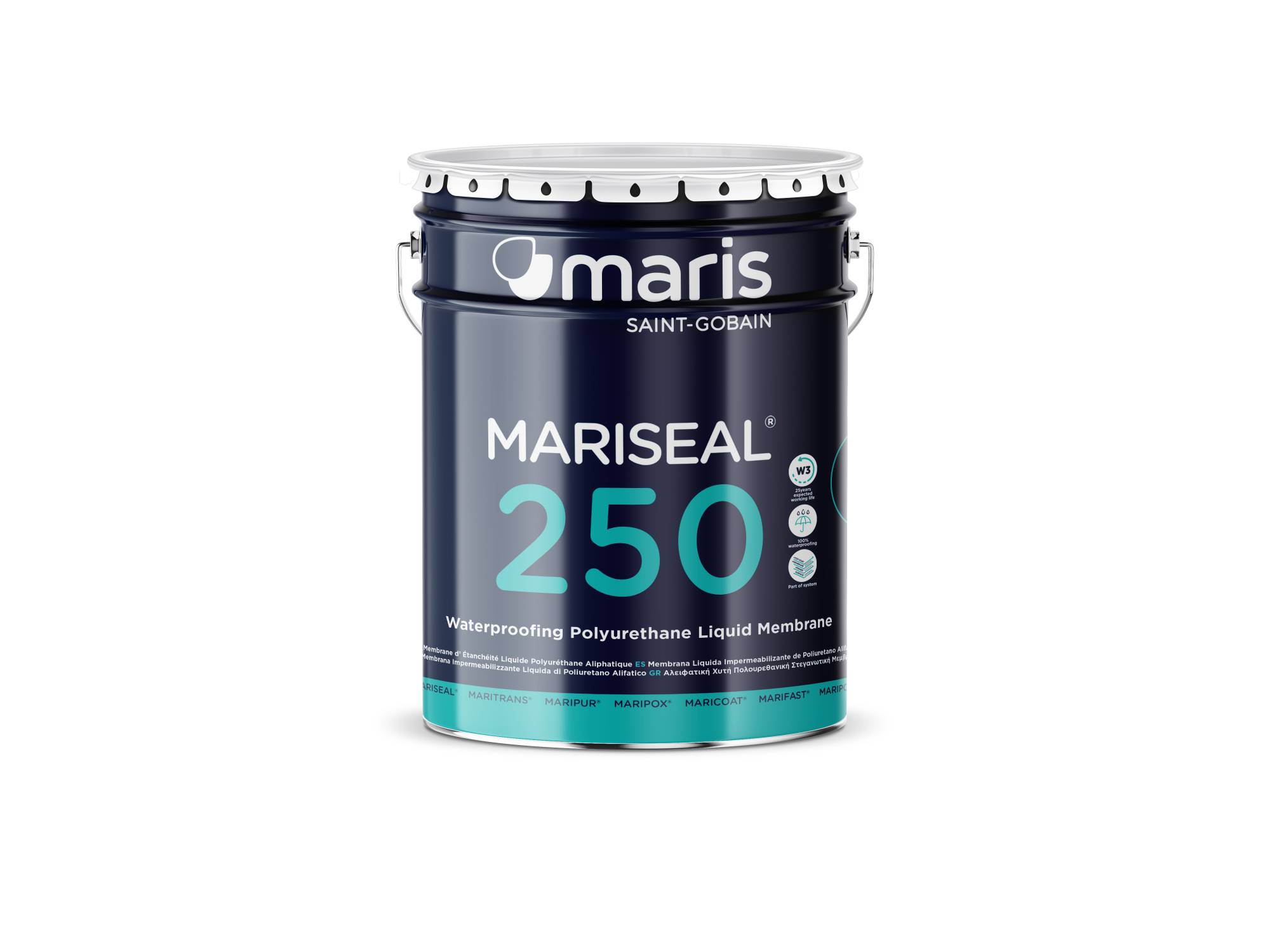

Premium, liquid-applied, highly permanent elastic polyurethane membrane used for long-lasting waterproofing.
Waterproofing membrane for use on:
Premium, liquid-applied, highly permanent elastic polyurethane membrane used for long-lasting waterproofing.
Based on pure elastomeric hydrophobic polyurethane resins which result in excellent mechanical, chemical, thermal, UV and natural element resistance properties.
Features and benefits:
Color | White Grey Guidance for specification option: Light grey. |
Finish | Semi-gloss |
Material | Solvent-based Polyurethane Liquid Polymer |
Shape | Formless |
Uniclass | |
CAWS | J31/47 Waterproof coating J31/353 Waterproof coating |
Third-party certification | Compliant with ASTM C836 specification and BBA certification 17/5443. |
Colour | White.Light grey |
Coverage | 1.4–2.5 kg/m², applied in two or three layers. Guidance for specification option: Based on application by roller onto a smooth surface in optimum conditions. |
Elongation at break | To ASTM D412, 600%. |
Tensile strength | To ASTM D412, >4 N/mm². |
Tear strength | To ASTM D624 (type B), 40 N/mm. |
Puncture resistance | To ASTM E154M (0.8 mm film), 350 N. |
Crack bridging | To EN 14891, 4.4 mm (23°C); 3.7 mm (-5°C); 3.6 mm (-20°C). |
Water vapour permeability | To DIN EN 1931, 12 g/m²/day. |
Adhesion to concrete | To EN 1542, >1.9 N/mm² (concrete surface failure). |
Shore A hardness | To ASTM D2240 (15"), >65. |
Root protection | To UNE CEN/TS 14416, resistant to root penetration. |
SolarReflectance | Solar reflectance, to ASTM E903-96, 0.87 (white only). |
Service temperature | -30 to +90°C. |
Final curing time | Seven days (at 20°C, 50% relative humidity). |
Performance characteristics | Solar emittance, to ASTM E408-71, 0.89 (both for white only). |
Country of material origin | Greece |
Country of product manufacture | Greece |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceTest |
