Marathon W Doors

Verified by manufacturer 6 months ago

Prospec Ltd

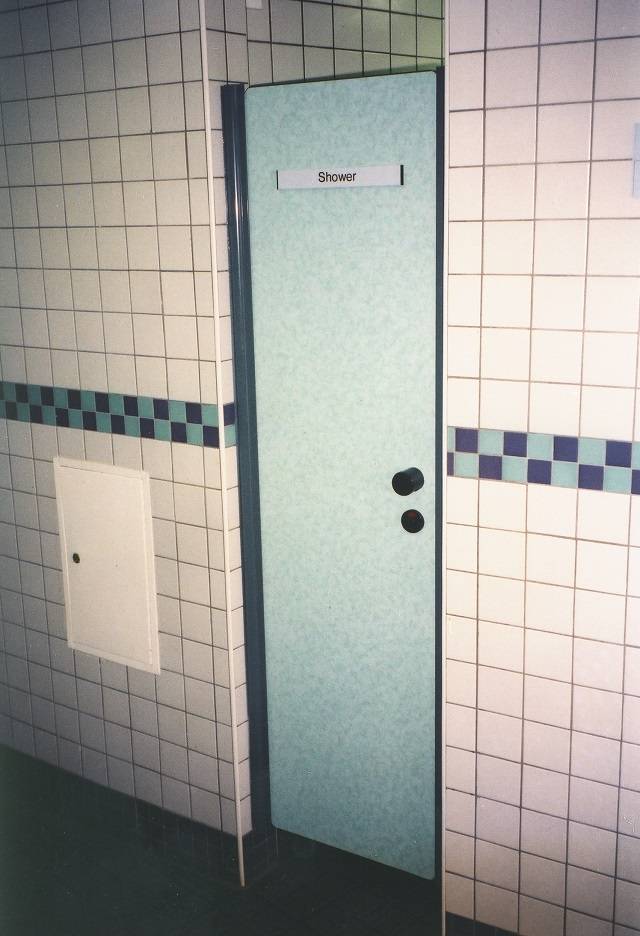

An aluminium semi-circular 50 mm diameter door frame designed to fit within an existing opening or between solid divider walls.

Jump to:
+44 (0)1709 377147 Website

Application

For high-use public washrooms, changing areas, showers and WCs, and demanding public environments.

Description

An aluminium semi-circular 50 mm diameter door frame designed to fit within an existing opening or between solid divider walls.


The materials and fittings are selected for their durability and resistance to water and chemicals, to withstand wet use, the rigours of cleaning and to deter vandals.

General information

Color

Other

Finish

Powder-coated

Guidance for specification option:

Polyester powder coated.

Anodized

Guidance for specification option:

Satin silver anodized (25 micrometres).

Laminated

Material

Aluminium

Laminate

Guidance for specification option:

Solid Grade Laminate.

Glass

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_02 Aluminium doorsetsPrimary

CAWS

L20/480 Doorsets

Specification data - Aluminium doorsets

Doorset size

-

Manufacturer guidance

1800 mm with floor clearance to specifiers requirements.

Frame

-

Material

Aluminium extrusions, 50 mm diameter semi-circular doorframe designed to fit within an existing opening or between solid divider walls.

Door leaf

-

Thickness

12 mm.

Material

12 mm Solid Grade Laminate.

Lippings

Bull-nosed with radius corners.

Door accessories

Nylon door latch.

Hydraulic door closer.

Hardware

Solid coloured nylon door furniture. Concealed nylon door latch operated by turn button with indicator rosette with emergency release to the exterior. Standard handle assembly with powder coated aluminium cover plate, internal doorknob/ buffer, plain cover rosette to the exterior. Three nylon covered heavy-duty stainless steel/ brass hinges per door (one spring loaded for inward/ outward opening door). Full-length nylon brush buffer strip permanently trapped into the profiles on each side of the door frame. One coat hook per cubicle fixed to door frame with concealed screw and exterior pop rivet. Two coat hooks to DDA compliant cubicles. One toilet roll holder to WC cubicles. DDA compliant handle set with lever action turn and horizontal grab handles. Hydraulic door closer available for outward opening doors. Heavy-duty anti-vandal handles with addition of aluminium exterior cover plate with through bolt fixings. Light use door latch set with sliding action.

Architraves

-

Material

Aluminium extrusions.

Finish

Mill.

Colour

Anodized.

Accessories

Nylon door latch.

Hydraulic door closer.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Manufacturer guidance

Europe mix.

Country of product manufacture

United Kingdom

Recyclability

Laminate

Manufacturer guidance

Medium.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Aluminium, Laminate.
