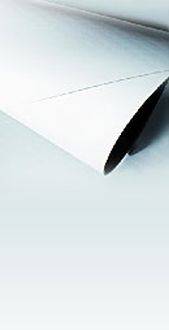

Mapeplan® Af 12
Mapeplan® Af 12
PVC-P roofing waterproofing membranes.
Application
Mapeplan® Af: Suitable for use with adhered system for exposed roof installations.
Description
Synthetic roofing waterproofing membranes constructed from PVC-P, produced in one multi-extrusion coating process with high quality raw materials.
General information
Color | Grey |
Material | PVC-P Glass mat Polyester net Fleece backed |
Uniclass | |
CAWS | J42/10 Warm deck roof covering J42/110 Warm deck roof covering J42/120 Inverted roof covering J42/130 Cold deck roof covering J42/400 Waterproof membrane |
Specification data - Polymeric membranes
Material | Mapeplan® Af: Fully adhered PVC, reinforced with glass mat, fleece backed.Mapeplan® B: PVC-P reinforced with glass mat.Mapeplan® M: PVC-P reinforced with polyester net. |
Width (minimum) | 1050 mmGuidance for specification option: For Mapeplan® M only. 1600 mmGuidance for specification option: For Mapeplan® M only. 2100 mm |
Thickness (minimum) | 1.2 mm. |
Colour | Light grey.Guidance for specification option: Top layer. Dark grey.Guidance for specification option: Bottom layer. |
Roll length | Dependent on thickness. |
Joints | Joint peel resistance (to BS EN 12316-2): ≥300 N/50mm. Joint shear resistance (to BS EN 12317-2): Af/ B: ≥500 N/50mm; M: ≥650 N/50mm. |
Water vapour diffusion resistance | μ, to BS EN 1931, 19 000. |
TensileStrength | To BS EN 12311-2, B: ≥9 N/mm²; B: ≥1100 N/50mm. |
Elongation at break | To BS EN 12311-2, B: ≥200%; M: ≥15%. |
Resistance to tearing | To BS EN 12310-2, B: ≥100 N; M: ≥200 N. |
Dimensional stability | To BS EN 1107-2, B: ≤0.2%; M: ≤0.5%. |
Flexibility at low temperature | To BS EN 1109, ≤-25°C. |
Product Reference | Mapeplan® Af 12 Guidance for specification option: 1.2 mm thickness, 1.5 kg/m². Mapeplan® Af 15 Guidance for specification option: 1.5 mm thickness, 1.8 kg/m². Mapeplan® Af 18 Guidance for specification option: 1.8 mm thickness, 2.2 kg/m². Mapeplan® Af 20 Guidance for specification option: 2 mm thickness, 2.5 kg/m². Mapeplan® B 15 Guidance for specification option: 1.5 mm thickness, 1.8 kg/m². |
Weight | 1.5 kg/m². |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Similar products from Mapei (UK) Ltd

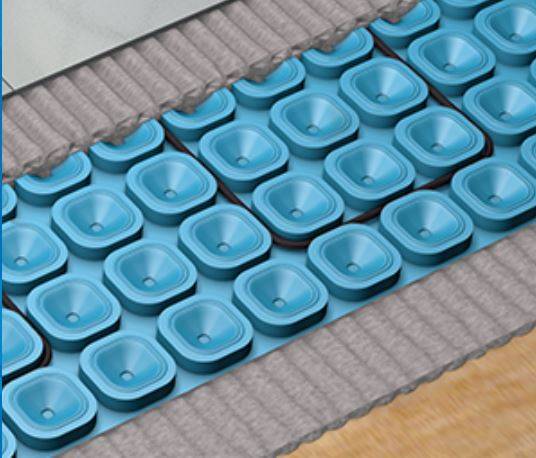

Mapeheat Membrane Maxi
