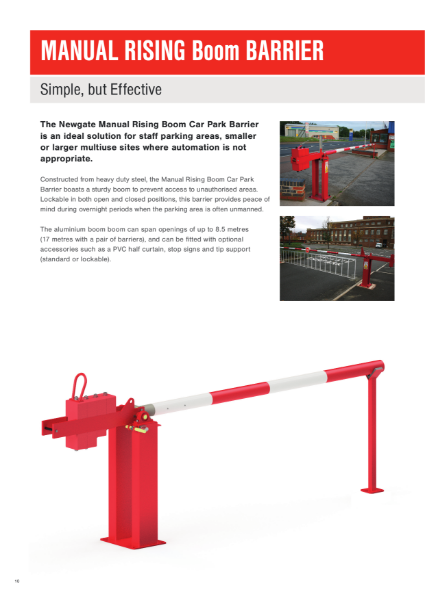

Manual Rising Arm Barrier

Application

Suitable for use in staff parking areas of larger multi-use sites, or park and ride facilities.

Description

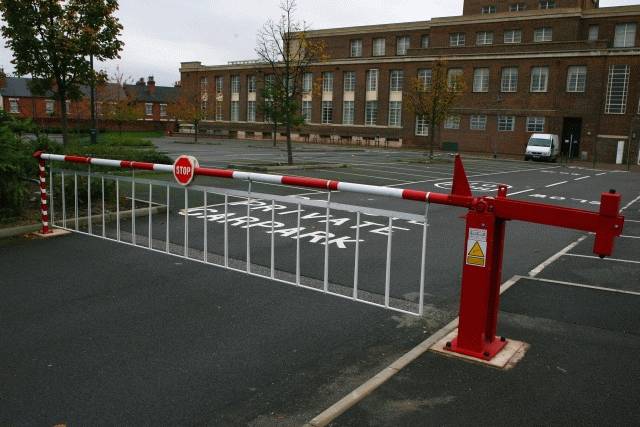

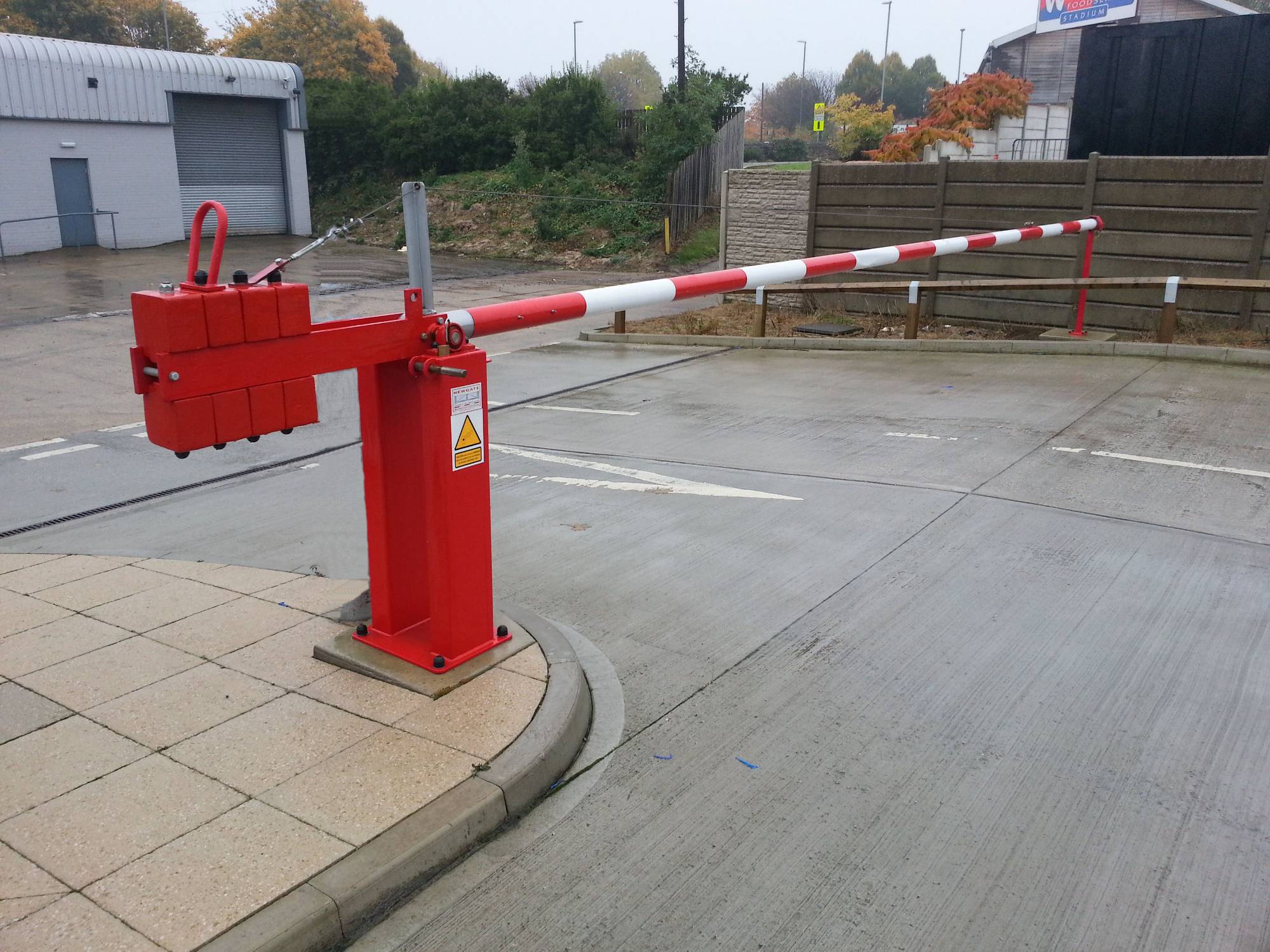

The sturdy steel construction and aluminium pole arm can span openings up to 8.5 m (17 m with a pair of barriers) and can be locked in the raised or lowered positions, providing security during overnight periods when the parking area is not in use.


Conforms to BS 6571-4 and CE approved.

General information

Color

Red

Material

Steel

Size

1000 mm

Height

Uniclass 2015

Pr_30_59_59_72 Rising arm vehicular barriersPrimary

Specification data - Rising arm vehicular barriers Enhanced data

Method of operation

Manual with lifting handle.

Span

(7500 mm maximum with PVC curtain).

2000–8500 mm.

Arms

-

Material

Steel.

Finish as delivered

-

Colour

Red.

Manufacturer's standard.

Corporate colours.

Accessories

None.

PVC half curtain.

Stop sign.

Tip support post.
