Versatile beam-mounted seating system.

Jump to:
+44 (0)1451 821446 Website

Application

Suitable for:

  • Theatre.
  • Auditorium.
  • Courtroom.

Description

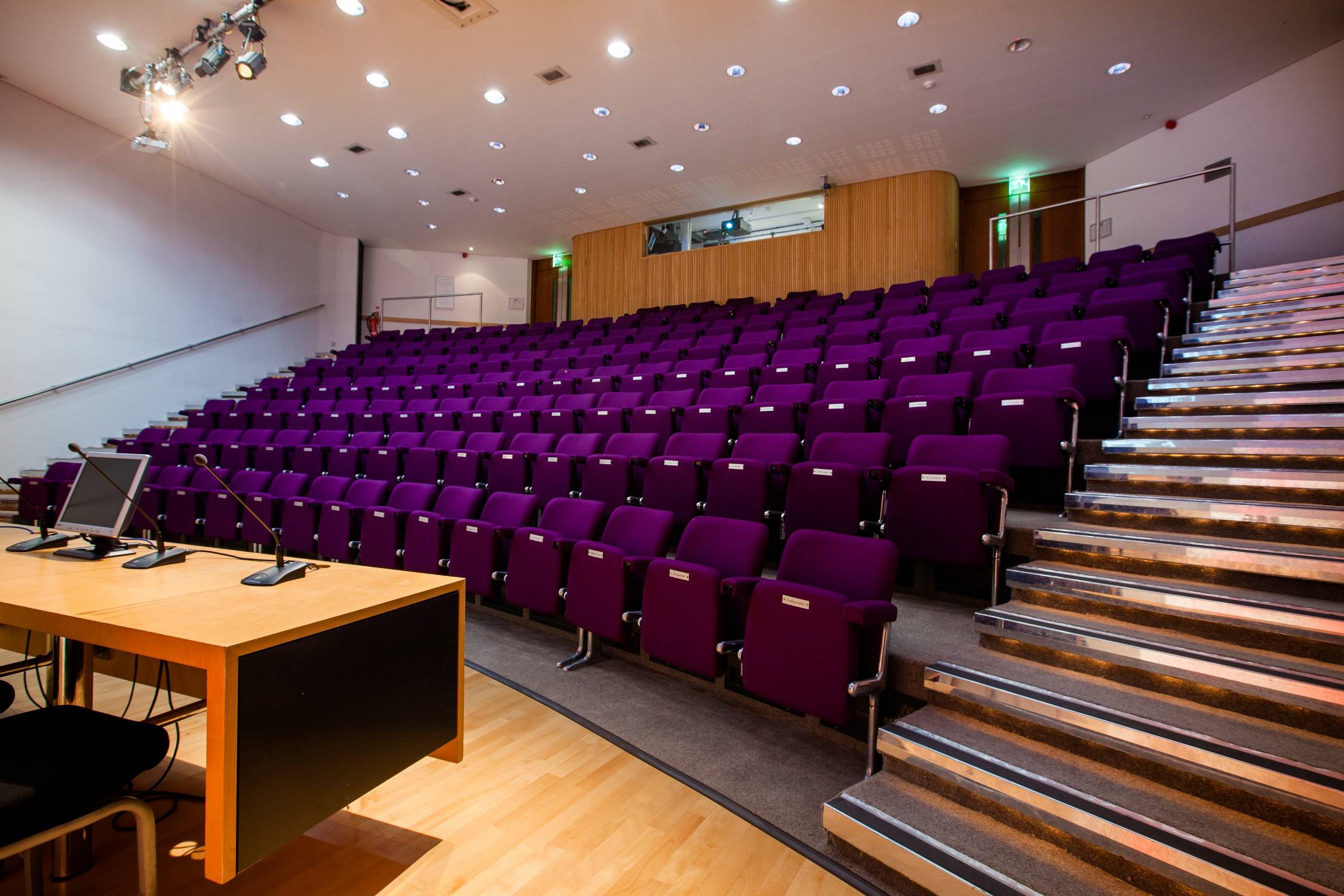

Race Furniture's Malvern seat is a versatile beam-mounted seating system. Its modular, aluminium-framed design is highly adaptable, making it especially suitable for venues with a wide range of functions. With fewer floor fixings than conventional seats, Malvern makes it simple to add free-standing units. The range can be supplied fixed or fully removable.


Features and benefits:

  • Available in fixed 2, 3 and 4 seat place width modules.
  • Arms and writing tablet options available - 515mm module width only (545mm width seat centre)
  • A wide range of upholstery styles and finishes.
  • Finger-safe seat tipping mechanism.
  • Fixed and removable options.
  • DDA Provision.
  • Typically seats are all FSc approved, and contain 80%+ recycled steel content.
  • Customisable real wood, veneer, high-pressure laminate, fabric and leather finishes.
  • Bespoke seat height, width and back angle dimensions.
  • Customisable arm rests and end panels designs.
  • Integrated cable management, signage and storage solutions.

General information

Color

Other

Customisable to client requirements.

Finish

Laminated

Powder-coated

Natural

Material

Wood

Birch plywood: seats and back.

Polyurethane

Polyurethane upholstery foam (CMHR): seats and back.

Steel

Mild steel: frame.

Aluminium

Frame.

Length

400 mm

Width

510mm Seat Centres

(445mm Between arms)


545mm Seat Centres

(480mm Between arms)

510 mm

545 mm

Height

750 mm

WarrantyDescription

Five year

Race Products are guaranteed for five years from the later date of their supply or installation in accordance with the following:

  • Race Furniture Limited will repair or replace free of charge any manufacturing defect that occurs within five years that arises and is proven to be a product or manufacturing fault.
  • The guarantee is conditional on Products being maintained in accordance with instructions issued by Race Furniture Limited.
  • The guarantee does not include fabric / Leather / Vinyl. This may be covered under a separate guarantee from the fabric supplier.
  • The guarantee is subject to Race being informed promptly once the defect is initially observed and does not include the repair of secondary damage that occurs as a result of failure to do this.
  • The warranty does not apply where goods have not been properly maintained or have been subject to misuse, unauthorised repair, replacement modification or alteration, or if the defect arises as a result of fair wear and tear, wilful damage, or abnormal storage or working conditions.

Uniclass

Pr_40_30_29_29 Fixed seatsPrimary

CAWS

N10/10 Purpose-made

N10/171 Fixed seating

Specification data - Fixed seats

Fire performance

  • Bespoke Specification Fire testing available upon request.
  • All Fabrics conform to BS 5852:2006 Clause 12. Ignition Source 5 (Crib 5): Medium Hazard.
  • All Polyurethane Foams are: Combustion Modified High Resilience (CMHR).

Functions

Auditorium.

Theatre.

Courtroom.

Dimensions

-

Seat height

460 mm.

Seat spacing (lateral)

1050 mm.

Two seat module.

1560 mm.

Three seat module.

2070 mm.

Four seat module.

Row spacing

Determined from seating layout and constrained by the requirements of: BS 9999:2017 Code of practice for fire safety in the design, management & Anthropometric data for the target user group.

Seats and backs

-

Material

Birch wood and polyurethane upholstery foam (CMHR).

Finish

High pressure laminate (HPL).

Natural solid-woods.

Natural veneers.

Upholstery fabrics.

Colour

High pressure laminate (HPL).

Natural solid-woods.

Natural veneers.

Upholstery fabrics.

Frames

-

Material

Mild steel and aluminium.

Finish

Polyester powder coated.

Colour

Customisable.

Consult manufacturer and insert requirements.

Integral accessories

Integrated power and data.

Seat and aisle signage.

End of row panels.

Height

Nominal height.

750 mm.

Length

Nominal length.

400 mm.

(Tipped up).

Width

Nominal width.

510 mm.

445 mm between arms.

545 mm.

480 mm between arms.

Accessibility

Removeable seats for wheelchair space.

Environmental information

Recyclability

Race Furniture's products can be disassembled with standard tools thereby allowing reuse, refurbishment, repair and recycling of components.

Typically our seats are all FSc approved, and contain 80%+ recycled steel content.

For further guidance on our sustainability procedures and certifications please reference our Greenbook excerpt.
