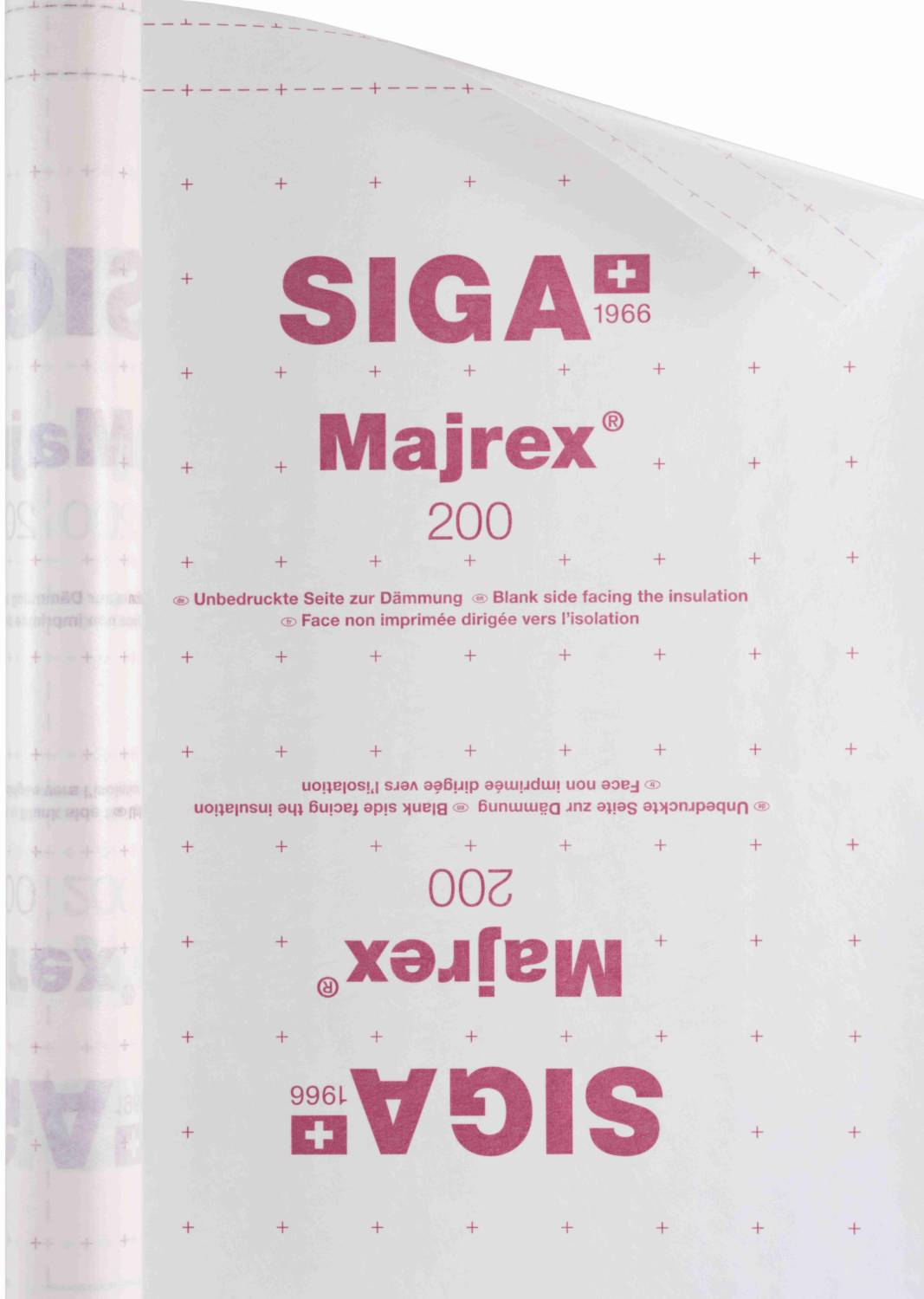

Moisture Variable Vapour control layer with Hygrobrid technology.
Provides even more security in wall/ roof structures on the room side of thermal insulation. It helps especially in cases of problematical building physics.
Moisture Variable Vapour control layer with Hygrobrid technology.
Features and benefits:
Color | White Guidance for specification option: With Maroon red printing. |
Finish | Gloss |
Shape | Other |
Length | 50000 mm |
Width | 1500 mm |
Height | 1 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | P10/320 Breather membrane P10/65 Breather membrane M30/265 Building paper H92/120 Rainscreen cladding H30/10 Fibre cement H21/111 Horizontal timber weatherboarding H21/116 Horizontal timber weatherboarding H21/15 Horizontal timber weatherboarding H21/130 Breather membrane H21/20 Breather membrane H21/115 Vertical timber weatherboarding H21/110 Vertical timber weatherboarding H21/10 Vertical timber weatherboarding H20/155 Sheet cladding (attached to timber battens) H20/150 Sheet cladding (attached to metal support systems) H20/10 Sheet cladding J21/395 Air and vapour control layer H92/780 Air and vapour control layer J41/395 Air and vapour control layer H13/371 Vapour control J31/330 Air and vapour control layer H30/30 Air and vapour control membrane H11/785 Air and vapour control layer H31/261 Air and vapour control membrane P10/310 Air and vapour control layer H90/390 Vapour control layer H31/45 Air and vapour control membrane H30/261 Air and vapour control membrane |
Purpose | Vapour control layer. |
Standard | To BS EN 13984. |
Performance characteristics | |
Tear resistance | Nail shank to EN 12310-1: Lengthwise: 145 N; crosswise: 150 N. |
Elongation to break | 35% (to EN 12311-2). |
Fire performance | Class E (to EN 13501-1). |
Third-party certification | Passive House Institute certified component, GEV EMICODE EC1 Plus. |
Physical properties | |
Colour | White.Guidance for specification option: With Maroon red printing. |
Weight (minimum) | 150 g/m². |
Dimensions | |
Width (minimum) | 1.5 m. |
Roll length (minimum) | 50 m. |
TensileStrength | Maximum to EN 12311-2: Lengthwise: 300 N/50 mm; crosswise: 250 N/50 mm. |
Sd value | 5–15 m (to EN 1931). |
Resistance to water penetration | W1 (to EN 1928). |
Contains Red List materials | No |
Country of material origin | Switzerland |
Country of product manufacture | Switzerland |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 1.17 kg CO₂ eq/m² |
Expected Life | Lifetime |
