MagnX®-DS - Double Sided Back Painted Magnetic Interior Glass

Gx Glass

Concealed fixing backpainted magnetic interior glass dry wipe boards.

Jump to:
+44 (0)1233 642220 gxglass.com/
Description

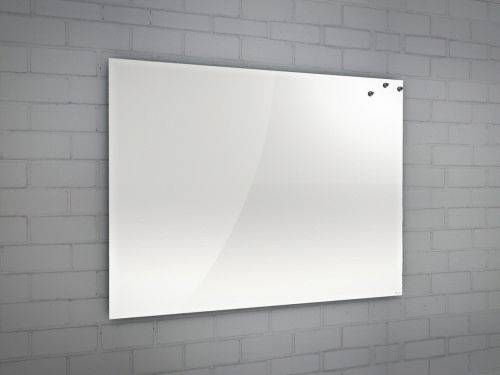

MagnX®-CF is Gx Glass' range of fixed size metal backed dry wipe glass memo boards. The MagnX branded boards are produced in white as standard in a range of 13 popular sizes, which can be hung portrait or landscape using a concealed bracket system which slots into the panels metal tray backing.

Each board is packaged separately with fixings, fixing instructions, manufacturers five year warranty and a dry wipe pen and three skittle magnets as standard.

ColourX paints are water based, making the range environmentally friendly with very low VOC levels and the paint has been extensively tested for both adhesion and longevity making ColourX fully recyclable at the end of its life. Additional colours available on request.

Gx Glass produces glass to British and European standards strength and flexibility in accordance with BS EN 12150 and safety up to BS EN 12600 Class 1.

General information
Size

450 x 600 mm

762 x 600 mm

762 x 762 mm

1200 x 762 mm

1200 x 912 mm

1200 x 1012 mm

1200 x 1500 mm

1200 x 1800 mm

1200 x 2000 mm

1500 x 762 mm

1500 x 912 mm

1500 x 1500 mm

1800 x 1500 mm

Finish

Painted, painted and printed

Features

MagnX-E, our single sided cladding version of MagnX, is adhesive fixed and allows for panels of up to 1500 x 3000mm (finish dependent), giving you complete control to clad walls to your custom sizes

Material

Glass

Shape

Rectangle

WarrantyDescription

Two year warranty on discolouration or delamination for commercial and contract projects when installed by Gx Glass

Uniclass 2015 Magnetic boards (Pr_40_30_25_50)
Specification data
Product Reference

MagnX®-CF

Size

450 x 600 mm

762 x 600 mm

762 x 762 mm

1200 x 762 mm

1200 x 912 mm

1200 x 1012 mm

1200 x 1500 mm

1200 x 1800 mm

1200 x 2000 mm

1500 x 762 mm

1500 x 912 mm

1500 x 1500 mm

1800 x 1500 mm

Colour

ColourX-S 501 White

Standard.

Special order

Insert requirement.

Standard product features

Processing:

Toughened.

Glass type:

Low iron.

Thickness:

20 mm (4.5 mm glass + 15 mm backing tray).

Included accessories:

  • One dry wipe marker pen.
  • Three skittle magnets.

Included fixings:

Fixing brackets.

Product Options

Colour:

ColourX-S 501 Standard white similar to RAL 9003 with turquoise MagnX Logo bottom right.

Special Order:

  • ColourX-S: Available in 38 colours.
  • ColourX-NS: Established colour systems such as RAL, NCS, BS, Farrow & Ball, Dulux as well as bespoke colour match using our colour scanning system.
  • Bespoke logo, unbranded, corporate branding and bespoke artwork options are also available.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 5 2.1
Revit
- 5 2.1
Download now from NBS National BIM Library
