Magna-Flex LVT - Magnetically-backed Planks and Tiles
Verified by manufacturer 3 days ago
Tile
Tile
Range of magnetically-backed LVT planks and tiles, installed on magnetically-receptive underlay to create a fully adhesive-free flooring solution allowing the reuse of flooring to support circularity.
Application
- Adhesive-free flooring solution.
- Can be installed over an existing floor.
- Allows for easy repurposing of areas such as residential, commercial, fitness, retail and hospitality applications.
- Can also be directly installed onto a metal raised access floor without the need for the MagnaLay underlay system.
Description
A range of magnetically-backed LVT planks and tiles.
Features and benefits:
- Adhesive-free: makes circular flooring solutions easy, no adhesive contamination to both the floor covering or the subfloor.
- Installed onto MagnaLay magnetically-receptive acoustic rubber underlay.
- Quick, clean installation: can be installed over an existing floor and walked on immediately.
- All-round performance: excellent impact sound reduction, provides vapour barrier for moisture mitigation and is hygienic, naturally anti-microbial and anti-allergy.
- Sustainable and recyclable: manufactured using recycled rubber, with no contaminating glues so that flooring can be easily lifted and recycled.
- Easy floor maintenance: worn or damaged tiles can be quickly replaced, avoiding costly or inconvenient downtime.
- Design agility: easy repurposing of areas, enhancing customer experience in fitness, retail and hospitality applications.
- Manufactured using a heated high pressure system ensuring high quality, durability and dimensional stability
General information
Color | Brown Grey Beige Bronze |
Finish | Embossed |
Material | Polyvinyl chloride (PVC) Other |
Shape | Rectangle |
Length | 1219 mm 914 mm |
Width | 229 mm 457 mm |
Height | 5 mm Guidance for specification option: Overall (LVT and underlay). |
Uniclass | |
CAWS | M50/10 Resilient floor tiling M50/110 Resilient floor tiling |
Specification data - Polyvinyl chloride (PVC) tiles
Classification data | |
Standard | To EN 649. |
Use class | Class 33/ 42. |
Slip potential | |
Slip resistance value (SRV) (minimum)/ pendulum test value (PTV) (minimum) | To EN 13893, Class DS. To DIN 51130, R9–R10 (depending on embossing). |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. |
Size | 457 x 914 mm. |
Thickness | 3 mm. Guidance for specification option: LVT only. |

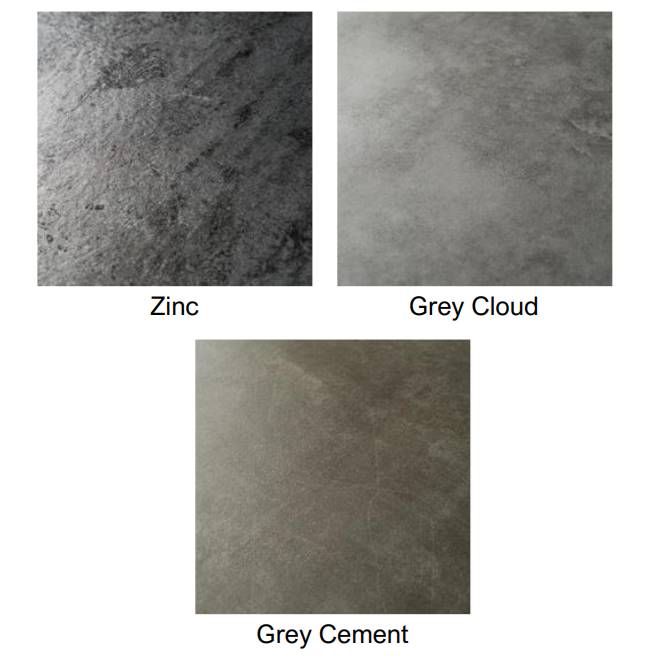

Colour and pattern | Zinc. Grey Cloud. Grey Cement. |
Acoustic underlay | MagnaLay 25 magnetically receptive acoustic underlay. Roll size: 5 x 0.98 m, 2.9 mm thick. |
Backing | Magnetically backed. |
System thickness | 5.9 mm. |
Impact sound reduction | 17 dB. |
Type | Heterogeneous. |
Wear layer | 0.55 mm; Group T (to EN 660-2). |
Reaction to fire | To EN 13501-1, Class Bfl-s1. |
Sustainability data
Material | Polyvinyl chloride (PVC) Other |
Literature
ECO-TEK Data Sheet - Magna-Flex LVT
